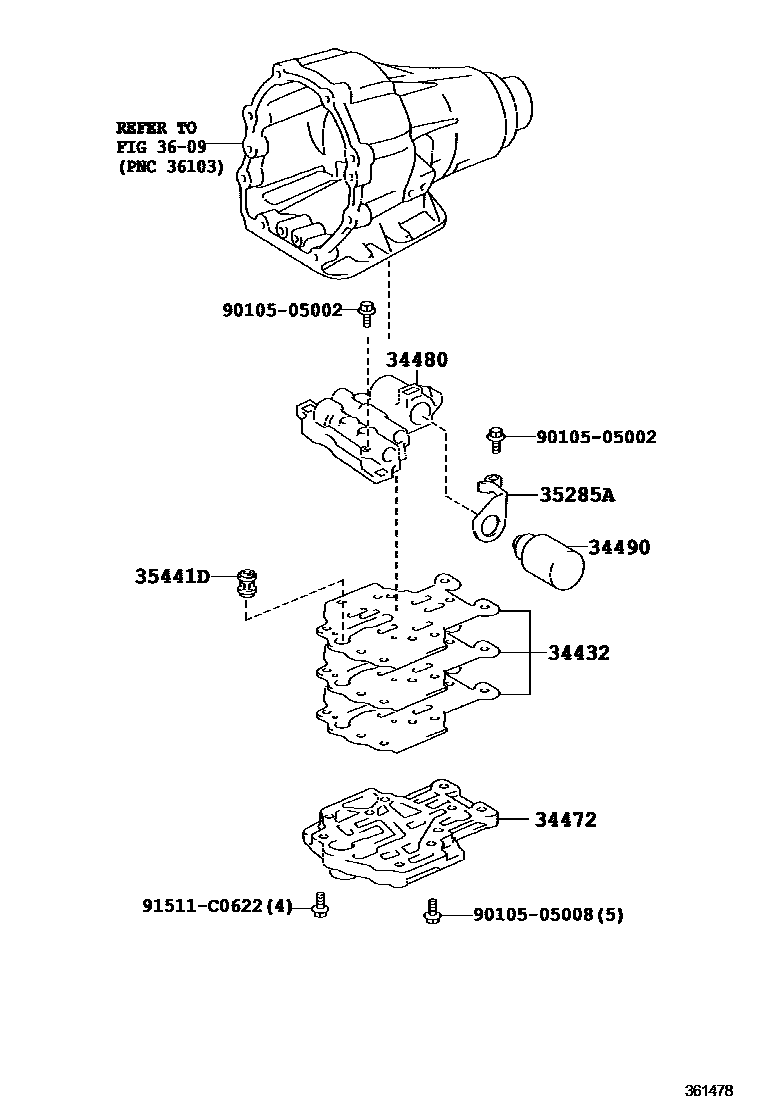

TRANSFER VALVE BODY & VALVE LEVER

0001 1 0002 1

34432PLATE, TRANSFER VALVE BODY, UPPER

main34403-30010iGSE25200508-200808

34472COVER, TRANSFER VALVE BODY

main34472-30010iGSE25200508-200808

34480BODY ASSY, TRANSFER UPPER VALVE

main34480-30010iGSE25200508-200808

34490SOLENOID ASSY, TRANSFER CONTROL

main34490-30020iGSE25200508-200808

35285APLATE, SOLENOID LOCK

main35285-30050iGSE25200508-200808

35441DSTRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL

main35441-12020iGSE25200508-200808

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

9010505002

main90105-05002

9010505008

main90105-05008

91511C0622

main91511-C0622

10 parts on this diagram · 2 diagrams in section
