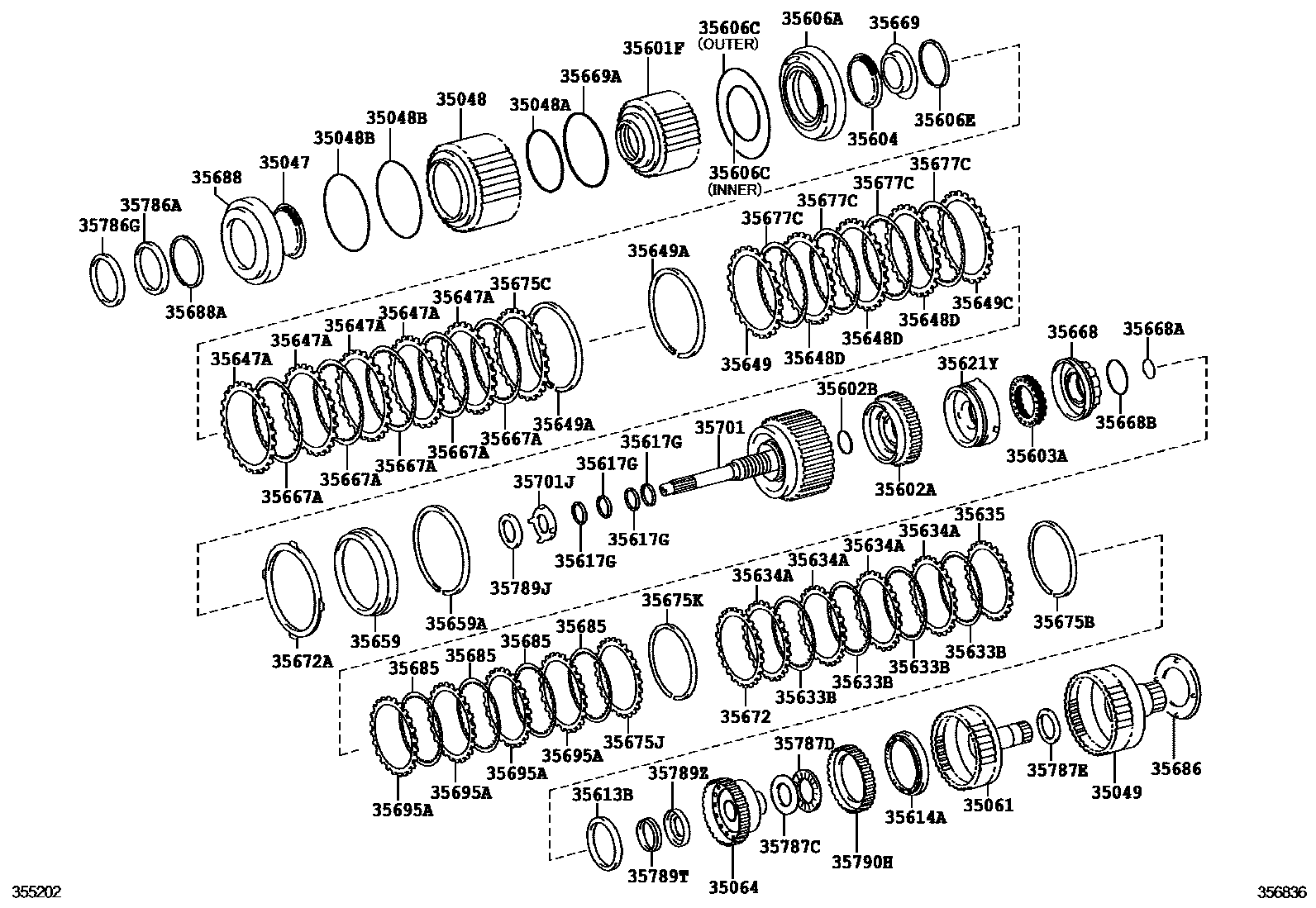

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35047SPRING SUB-ASSY, REVERSE CLUTCH RETURN
35048ARING, O (FOR REVERSE CLUTCH PISTON)
35048BRING, O (FOR REVERSE CLUTCH PISTON)
35061HUB SUB-ASSY, FORWARD CLUTCH
35064HUB SUB-ASSY, COAST CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35601FDRUM SUB-ASSY, REVERSE CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35606APISTON SUB-ASSY, DIRECT CLUTCH
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)
35613RING, CLUTCH PISTON OIL SEAL, OUTER
35613BWASHER, CLUTCH HUB THRUST, NO.2
35614AWASHER, CLUTCH HUB THRUST, NO.3
35617GRING, CLUTCH DRUM OIL SEAL
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
35647APLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35648DPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
35649ARING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE)
35649CFLANGE, REVERSE CLUTCH
35659ARING, SNAP (FOR REVERSE CLUTCH REACTION SLEEVE)
35667ADISK, DIRECT CLUTCH
35668ARING, SNAP(FOR CLUTCH BALANCER)
35668BRING, O(FOR CLUTCH BALANCER)
35669ARING, O (FOR CLUTCH BALANCER NO.2)
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
35675JFLANGE, COAST CLUTCH
35675KRING, SNAP (FOR COAST CLUTCH FLANGE)
35686WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT)
35688ARING, SNAP (FOR REVERSE CLUTCH RETURN SPRING)
35695APLATE, COAST CLUTCH
35701SHAFT SUB-ASSY, INPUT
35701JBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT)
35786ARACE, THRUST BEARING, NO.1
35786GBEARING,THRUST NEEDLE ROLLER
35787CRACE, THRUST BEARING, NO.2
35787DBEARING, THRUST NEEDLE ROLLER
35787EBEARING, THRUST NEEDLE ROLLER
35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)
35789TRACE, THRUST BEARING (INPUT SHAFT REAR)
35789ZBEARING, THRUST NEEDLE ROLLER
35790HCLUTCH ASSY, 1WAY NO.4
60 parts on this diagram · 3 diagrams in section
