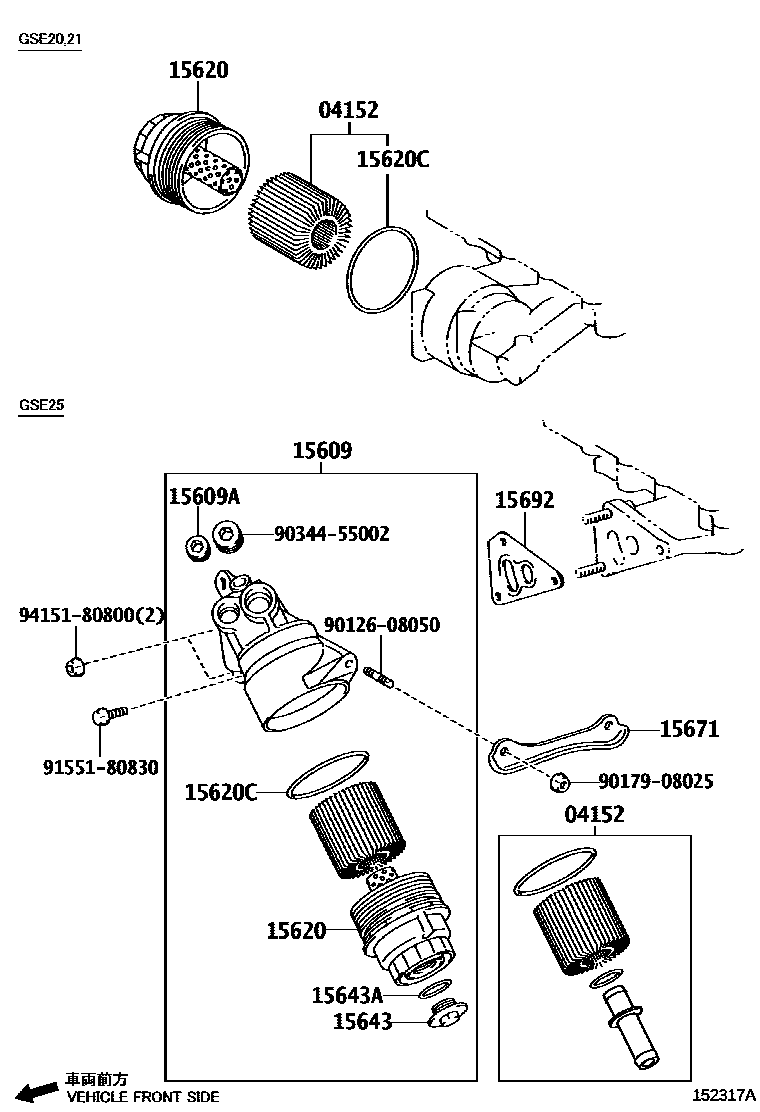

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-31060i4GRFSE..GSE25200508-200610

sub04152-38010

main04152-31080i2GRFSE,4GRFSE..GSE20,21200508-201304

main04152-38010i4GRFSE..GSE25200610-201304

15609BRACKET SUB-ASSY, OIL FILTER

main15670-31020i4GRFSE..GSE25200508-201008

15609APLUG, TAPER SCREW(FOR OIL FILTER BRACKET)

main90344-54006i4GRFSE..GSE25200508-201008

15620CAP ASSY, OIL FILTER

main15620-31040i2GRFSE,4GRFSE..GSE20,21200508-201008

main15620-31050i4GRFSE..GSE25200508-201008

15620CGASKET(FOR OIL FILTER CAP)

main90301-79005i2GRFSE,4GRFSE..GSE2#200508-200610

sub90301-79006

main90301-79006i2GRFSE,4GRFSE..GSE2#200610-201008

15643PLUG, OIL FILTER DRAIN

main15643-31040i4GRFSE..GSE25200508-200707

sub15643-31050

main15643-31050i4GRFSE..GSE25200707-201008

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i4GRFSE..GSE25200508-201008

15671BRACKET, OIL FILTER

main15671-31020i4GRFSE..GSE25200508-201008

15692GASKET, OIL FILTER BRACKET

main15692-31020i4GRFSE..GSE25200508-201008

9012608050

main90126-08050

9017908025

main90179-08025

9034455002

main90344-55002

9155180830

main91551-80830

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
