CRANKSHAFT & PISTON

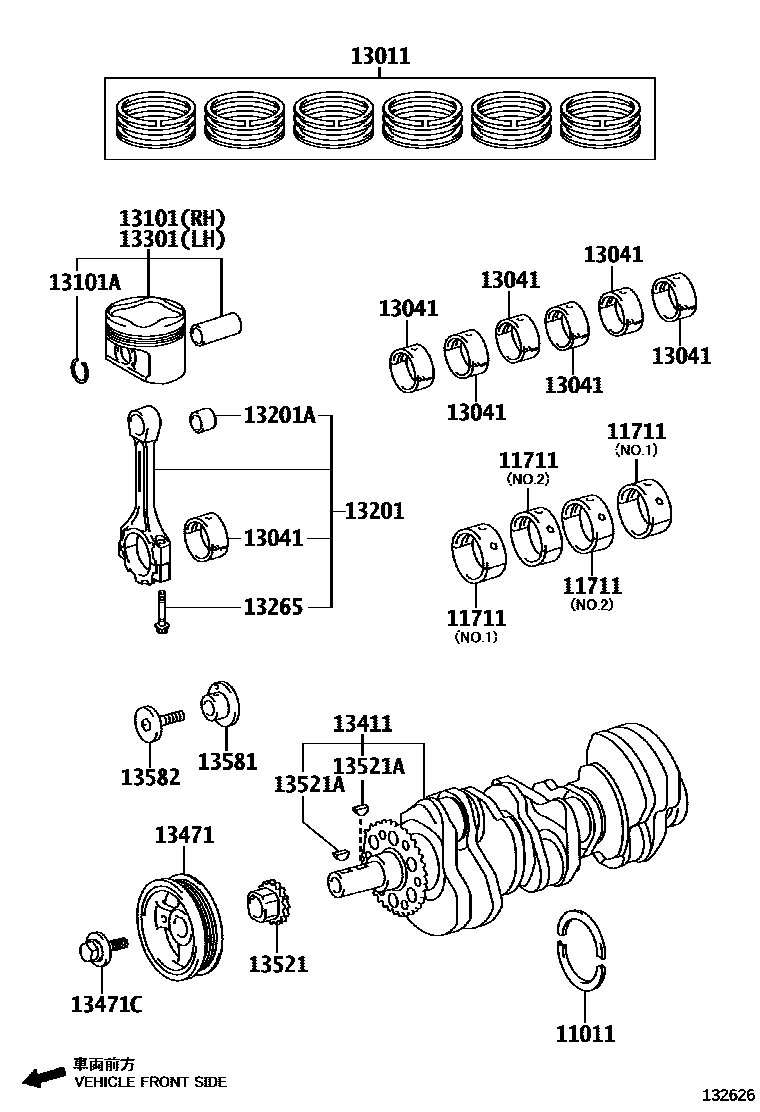

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-31060i201008

11711BEARING, CRANKSHAFT

main11071-31030-01×2i200508-200509

main11071-31030-02×2i200508-200509

main11071-31030-03×2i200508-200509

main11071-31030-04×2i200508-200509

main11071-31030-05×2i200508-200509

main11071-31031-01×2i201008

main11071-31031-02×2i200509-200808

main11071-31031-03×2i201008

main11071-31031-04×2i201008

main11071-31031-05×2i200808-201008

main11071-31040-01×2i200808-201008

main11071-31040-02×2i200508-200808

main11071-31040-03×2i200508-200808

main11071-31040-04×2i201008

main11071-31040-05×2i200808-201008

main11701-31060-01×2i200508-200509

main11701-31060-02×2i200508-200509

main11701-31060-03×2i200508-200509

main11701-31060-04×2i200508-200509

main11701-31060-05×2i200508-200509

main11701-31061-01×2i201008

main11701-31061-02×2i200808-201008

main11701-31061-03×2i200808-201008

main11701-31061-04×2i201008

main11701-31061-05×2i200509-200808

main11701-31070-01×2i201008

main11701-31070-02×2i200508-200808

main11701-31070-03×2i200508-200808

main11701-31070-04×2i201008

main11701-31070-05×2i200508-200808

13011RING SET, PISTON

main13011-31120i200808-200909

main13011-31121i200909-201008

main13011-31122i201206-201209

main13011-31140i200508-200808

main13011-31141i201201-201303

main13011-31142i201303-201304

main13011-31220i201209-201304

13041BEARING, CONNECTING ROD

main13041-31060-01×6i201008

MARK1

main13041-31060-02×6i201008

MARK2

main13041-31060-03×6i201008

MARK3

main13041-31060-04×6i201008

MARK4

main13041-31080-01×6i200808-201008

MARK1

main13041-31080-02×6i200508-200808

MARK2

main13041-31080-03×6i200808-201008

MARK3

main13041-31080-04×6i200508-200808

MARK4

13101PISTON SUB-ASSY, W/PIN

main13101-31050-A0×3i200808-201008

main13101-31050-B0×3i201008-201304

main13101-31050-C0×3i200808-201008

main13101-31060-A0×3i200508-200808

main13101-31060-B0×3i200508-200808

main13101-31060-C0×3i200508-200808

main13101-31061-A0×3i201110-201304

main13101-31061-B0×3i201110-201304

main13101-31061-C0×3i201110-201304

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025×12i200508-200808

13201ROD SUB-ASSY, CONNECTING

main13201-39095×6i200808-201008

main13201-39095-A0×6i201008-201304

main13201-39095-B0×6i201008-201304

main13201-39095-C0×6i201008-201304

main13201-39165×6i200508-200608

main13201-39166×6i200608-200808

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144×6i201008

13265BOLT, CONNECTING ROD

main13265-28010×12i200508-200808

main13265-31020×12i200508-200808

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31020×3i200508-200808

main13301-31020-A0×3i201008-201304

main13301-31020-B0×3i200808-201008

main13301-31020-C0×3i200808-201008

main13301-31030×3i200508-200808

main13301-31030-A0×3i200808-201008

main13301-31030-B0×3i200808-201008

main13301-31030-C0×3i200808-201008

main13301-31031-A0×3i201110-201304

main13301-31031-B0×3i201110-201304

main13301-31031-C0×3i201110-201304

13411CRANKSHAFT

main13401-31030i200508-200808

main13401-31050i200808-201008

13471PULLEY, CRANKSHAFT

main13470-31021i200508-200808

main13470-31030i200808-201008

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16004i200508-200808

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31040i200508-200610

main13521-31041i200610-200808

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516×2i200508-200808

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i200508-200808

13582SHAFT, IDLE GEAR, NO.2

main13582-31030i200508-200601

main13582-31031i200601-200808
