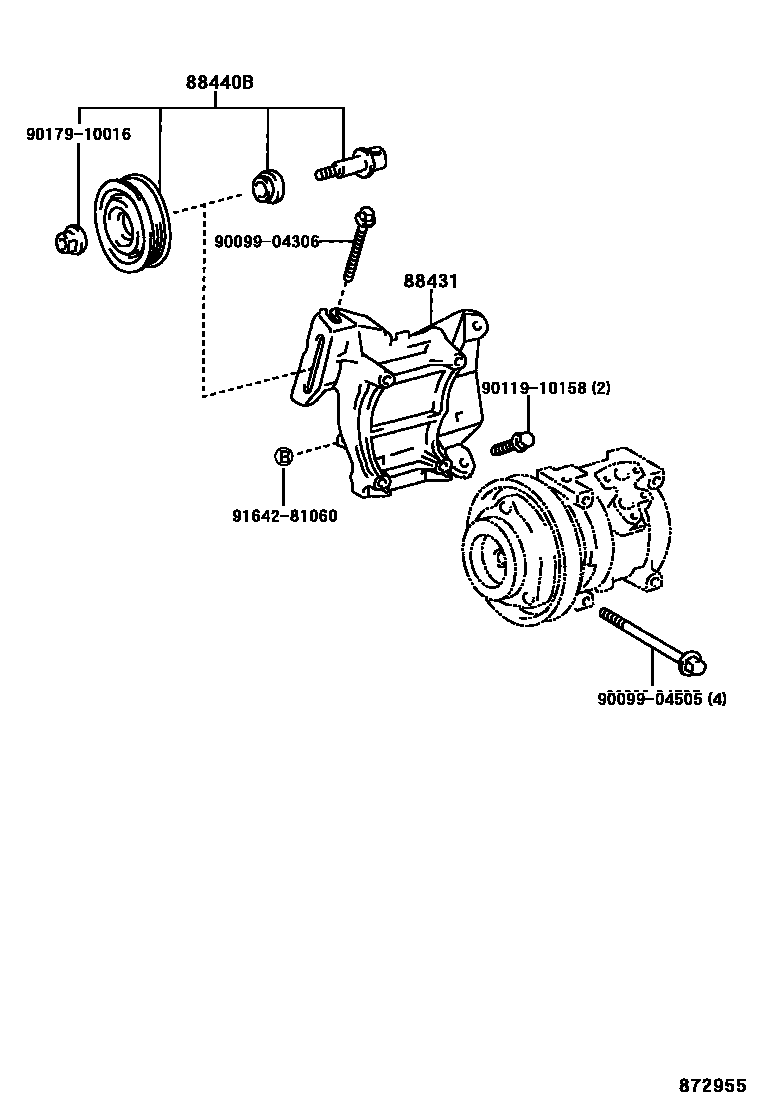

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22350iGXE10199810-200308

main88431-53010iSXE10199810-200105

88440BPULLEY ASSY, IDLE

main88440-20120iSXE10199810-200105

main88440-20170iGXE10199810-200308

9009904306

main90099-04306

9009904505

main90099-04505

9011910158

main90119-10158

9017910016

main90179-10016

9164281060

main91642-81060

7 parts on this diagram · 8 diagrams in section
