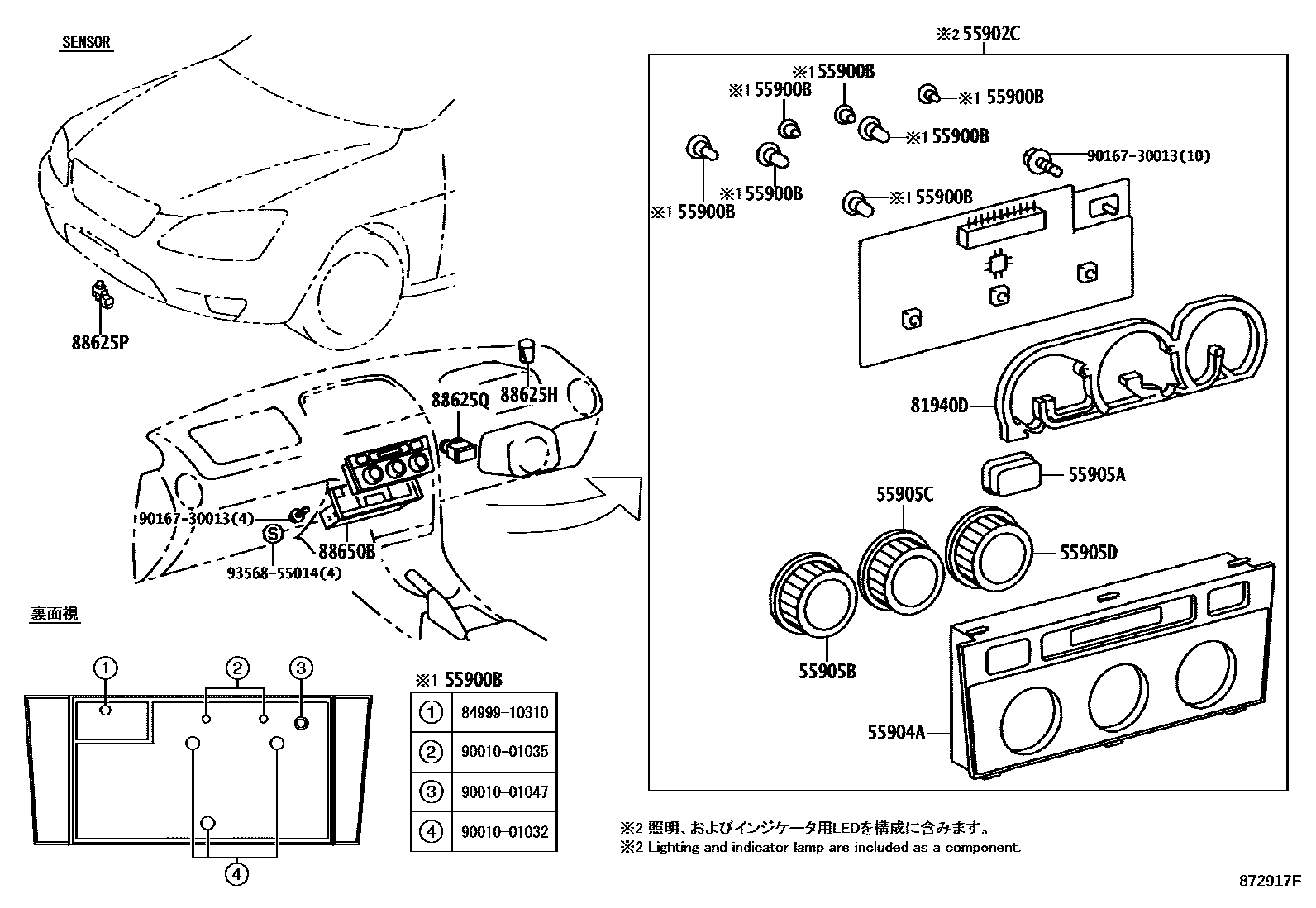

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1������ & ��� 0002 1�� ����

55900BBULB, AIR CONDITIONER CONTROL

main84999-10310iGXE1#,JCE1#,SXE10200105-200507

main90010-01032×3iGXE10,SXE10199810-200105

main90010-01035×2iGXE10,SXE10199810-200105

main90010-01047iGXE10,SXE10199810-200105

main90010-01073×2iGXE10200101-200105

main90010-01074×3iGXE10200101-200105

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-53010iGXE10,SXE10199810-200105

main55902-53090iGXE10200101-200105

main55902-53100iGXE1#,JCE1#,SXE10200105

main55902-53140iSXE10200208-200308

main55902-53150iGXE1#..ATM200308

main55902-53160iSXE10200308

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-53010iGXE10,SXE10199810-200105

main55904-53050iGXE1#,JCE1#,SXE10200105-200507

55905AKNOB, HEATER CONTROL

main55905-53010iGXE10,SXE10199810-200105

55905BKNOB, HEATER CONTROL, NO.2

main55905-53020iGXE10,SXE10199810-200105

main55905-53050iGXE1#,JCE1#,SXE10200105

main55905-53090iGXE1#..ATM200308

main55905-53110iSXE10200308

55905CKNOB, HEATER CONTROL, NO.3

main55905-53030iGXE10,SXE10199810-200105

main55905-53070iSXE10;GXE1#..ATM200308

55905DKNOB SUB-ASSY, CONTROL

main55905-53040iGXE1#,JCE1#,SXE10200105-200308

main55905-53080iSXE10;GXE1#..ATM200308

81940DLENS ASSY, HEATER CONTROL

main81940-53010iGXE1#,JCE1#,SXE10200105-200507

88625HTHERMISTOR, COOLER (SOLAR SENSOR)

main88625-33150iGXE10,SXE10199810-200105

88625PTHERMISTOR, COOLER (AMBIENT TEMP. SENSOR)

main88790-22130iGXE10,SXE10199810-200105

main88790-22131iGXE1#,JCE1#,SXE10200201-200308

88625QTHERMISTOR, COOLER (ROOM TEMP. SENSOR)

main88790-22140iGXE10,SXE10199810-200105

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-53010iGXE10,SXE10199810-200105

main88650-53051iGXE1#,JCE1#,SXE10200105-200507

9016730013

main90167-30013

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
