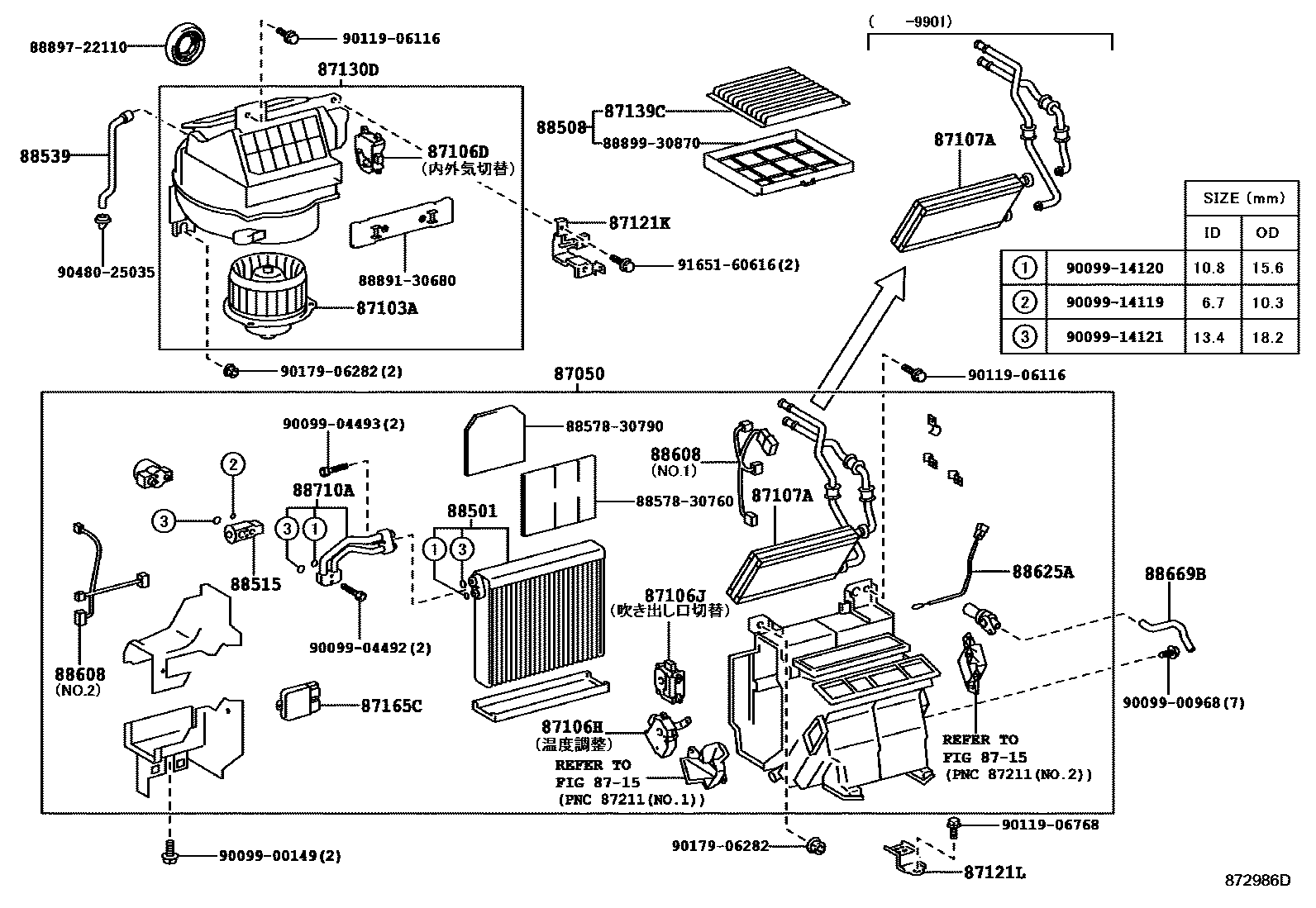

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-53010iGXE10,SXE10199810-200003

main87050-53011iGXE10,SXE10200003-200105

main87050-53012iGXE10,SXE10200308

main87050-53030iGXE10,SXE10199810-200003

main87050-53031iGXE10,SXE10200003-200105

main87050-53032iGXE10,SXE10..SED200105

main87050-53050iJCE1#200106

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-53010iGXE1#,JCE1#,SXE10200308

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-53010iGXE10,SXE10199810-200105

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30350iGXE1#,JCE1#,SXE10200105-200307

main87106-30351iGXE1#,JCE1#,SXE10200307

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-30361iGXE10,SXE10199810-200105

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-53010iGXE10,SXE10199810-199812

main87107-53020iGXE10,SXE10199901-200104

main87107-53050iGXE10..WG..MTM200105-200308

87121KBRACKET, HEATER

main87121-53020iGXE10,SXE10200003-200105

87121LBRACKET, HEATER

main87121-53030iGXE10,SXE10200003-200105

87130DBLOWER ASSY

main87130-53010iGXE10,SXE10199810-200105

main87130-53030iGXE10,SXE10199810-200105

87139CFILTER, CLEAN AIR

main87139-48030iGXE1#,JCE1#,SXE10199810

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-22050iGXE1#,JCE1#,SXE10200105-200308

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48010iGXE10,SXE10199810-200105

main88501-53010iGXE1#,JCE1#,SXE10200105-200308

88508FILTER SUB-ASSY, CLEAN AIR

main88508-48020iGXE1#,JCE1#,SXE10200105-200308

88515VALVE, COOLER EXPANSION

main88515-22260iJCE1#200405

main88515-28160iGXE1#,SXE10200405

main88515-30690iJCE1#200106-200404

main88515-48040iGXE10,SXE10199810-200105

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-30840iGXE15,JCE15200106

main88539-53010iGXE10,SXE10199810-200105

main88539-53060iGXE10,JCE10,SXE10200302-200308

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-53010iGXE10,SXE10199810-200105

main88608-53020iGXE1#,JCE1#,SXE10200308

main88608-53030iJCE1#200106

main88608-53050iGXE1#,SXE10200105-200308

88625ATHERMISTOR, COOLER NO.2

main88625-48010iGXE10,SXE10199810-200105

88669BHOSE, COOLER AIR

main88669-53010iGXE10,SXE10199810-200105

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A140iGXE10,SXE10199810-200105

8857830760PAKING, COOLER AIR DUCT

main88578-30760

8857830790PAKING, COOLER AIR DUCT

main88578-30790

8889130680PACKING (FOR COOLER)

main88891-30680

8889722110VALVE, COOLER MAGNET

main88897-22110

8889930870COVER, EVAPORATOR

main88899-30870

9009900149

main90099-00149

9009900968

main90099-00968

9009904492

main90099-04492

9009904493

main90099-04493

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906116

main90119-06116

9011906768

main90119-06768

9017906282

main90179-06282

9048025035

main90480-25035

9165160616

main91651-60616

37 parts on this diagram · 2 diagrams in section
