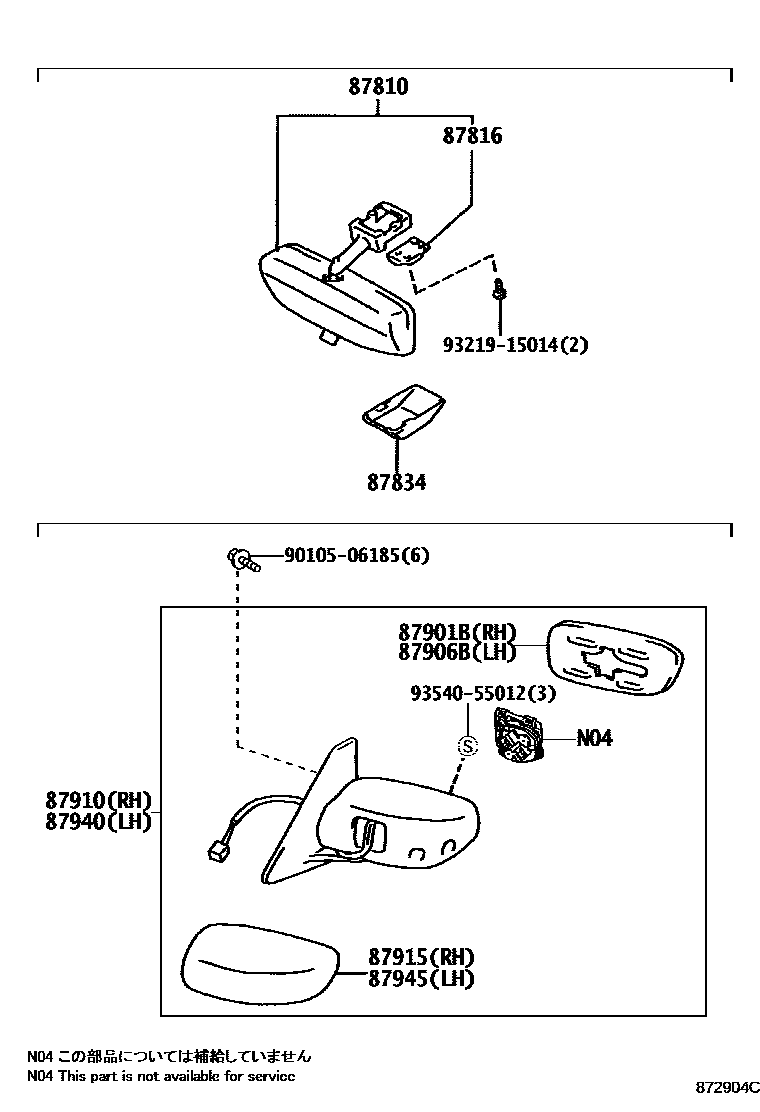

MIRROR

0001 1 0002 1

87810MIRROR ASSY, INNER REAR VIEW

main87810-22230-A0iGXE10199904-200005

IVORY,TRIM0#

main87810-22230-B3iGXE10,SXE10199810-200105

MD.CHARCOAL,TRIM2#

main87810-53020-A0iGXE10199904-200005

main87810-53020-B0iGXE10,SXE10199810-200105

main87810-53030-A0iGXE1#,JCE1#,SXE10200105-200308

IVORY,TRIM0#

main87810-53030-B0iGXE1#,JCE1#,SXE10200105

MD.CHARCOAL,TRIM2#

main87810-53050-A0iGXE1#..ATM200308

main87810-53050-B0iGXE1#,JCE1#,SXE10200105

87816SPRING, INNER REAR VIEW MIRROR

main74372-50010iGXE10,SXE10199810-200105

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-22070-A0iGXE10199904-200005

IVORY,TRIM0#

main87834-22070-B3iGXE10,SXE10199810-200105

MD.CHARCOAL,TRIM2#

main87834-24040-A1iGXE1#,JCE1#,SXE10200105

IVORY,TRIM0#

main87834-24040-B0iGXE1#,JCE1#,SXE10200105

MD.CHARCOAL,TRIM2#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-21110iGXE10,SXE10199810-200105

main87931-21130iGXE10,SXE10199810-200105

main87931-53080iGXE1#,JCE1#,SXE10200105-200507

main87931-53170iSXE10200208-200507

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-21130iGXE10,SXE10199810-200105

main87961-2D160iGXE10,SXE10199810-200105

main87961-53080iGXE1#,JCE1#,SXE10200105-200507

main87961-53170iSXE10200208-200507

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-53010-A0iGXE10,SXE10199810-200105

SUPER WHITE 2,040

main87910-53010-A1iGXE10,SXE10199810-200105

SU.WHITE PM,051

main87910-53010-B0iGXE10,SXE10199810-200105

SILVER ME.,1C0

main87910-53010-B1iGXE10,SXE10199810-200105

DK.GRAY M.M.,1C6

main87910-53010-C0iGXE10,SXE10199810-200105

BLACK,202

main87910-53010-C1iSXE10;GXE10..ATM200009-200103

main87910-53010-D0iGXE10,SXE10199810-200105

RED M.M.,3N3

main87910-53010-D1iGXE10,SXE10199906-200105

SUPER RED 5,3P0

main87910-53010-F0iGXE10,SXE10199810-200105

SUPER BRIGHT YELLOW,576

main87910-53010-G0iGXE10,SXE10199810-200105

DK. GREEN MC.,6Q7

main87910-53010-J0iGXE10,SXE10199810-200105

BLUE MC.,8M6

main87910-53010-J1iSXE10;GXE10..ATM199906-200105

main87910-53010-J2iGXE10200101-200105

DARK BLUE MC.,8P8

main87910-53050-A0iGXE10,SXE10199810-200105

main87910-53050-A1iGXE10,SXE10199810-200105

main87910-53050-B0iGXE10,SXE10199810-200105

main87910-53050-B1iGXE10,SXE10199810-200105

main87910-53050-C0iGXE10,SXE10199810-200105

main87910-53050-C1iSXE10;GXE10..ATM200009-200103

main87910-53050-D0iGXE10,SXE10199810-200105

main87910-53050-D1iGXE10,SXE10199906-200105

main87910-53050-F0iGXE10,SXE10199810-200105

main87910-53050-G0iGXE10,SXE10199810-200105

main87910-53050-J0iGXE10,SXE10199810-200105

main87910-53050-J1iSXE10;GXE10..SED..ATM200105

main87910-53050-J2iGXE10200101-200105

main87910-53080-A0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87910-53080-A1iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87910-53080-B0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87910-53080-B1iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87910-53080-B2iGXE10,JCE1#,SXE10200110-200203

main87910-53080-C0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87910-53080-D0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87910-53080-E0iGXE1#..ATM200308-200507

BEIGE ME.,4R4

main87910-53080-F0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87910-53080-F1iGXE1#,JCE1#..WG200106-200308

GOLD ME.,585

main87910-53080-G0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87910-53080-J0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87910-53080-J1iGXE10,JCE1#,SXE10200110-200203

main87910-53080-J2iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200308-200507

main87910-53170-A0iSXE10..ATM; SXE10..MTM200208-200507

main87910-53170-A1iSXE10..ATM; SXE10..MTM200208-200507

main87910-53170-B0iSXE10..ATM; SXE10..MTM200208-200507

main87910-53170-B1iSXE10..ATM; SXE10..MTM200208-200308

main87910-53170-C0iSXE10..ATM; SXE10..MTM200208-200507

main87910-53170-D0iSXE10..ATM; SXE10..MTM200208-200507

main87910-53170-F0iSXE10..ATM; SXE10..MTM200208-200308

main87910-53170-G0iSXE10..ATM; SXE10..MTM200208-200308

main87910-53170-J0iSXE10..ATM; SXE10..MTM200208-200308

main87910-53170-J1iSXE10..ATM; SXE10..MTM200308-200507

87915COVER, OUTER MIRROR, RH

main87915-20040-A0iGXE10,SXE10199810-200105

SUPER WHITE 2,040

main87915-20040-A2iGXE10,SXE10199810-200105

SU.WHITE PM,051

main87915-20040-B3iGXE10,SXE10199810-200105

SILVER ME.,1C0

main87915-20040-B4iGXE10,SXE10199810-200105

DK.GRAY M.M.,1C6

main87915-20040-C1iGXE10,SXE10199810-200105

BLACK,202

main87915-20040-D3iGXE10,SXE10199810-200105

RED M.M.,3N3

main87915-20040-D5iGXE10,SXE10200001-200004

SUPER RED 5,3P0

main87915-20040-F0iGXE10,SXE10199810-200105

SUPER BRIGHT YELLOW,576

main87915-20040-G5iGXE10,SXE10199810-200105

DK. GREEN MC.,6Q7

main87915-20040-J2iGXE10,SXE10199810-200105

BLUE MC.,8M6

main87915-20040-J4iSXE10;GXE10..ATM199906-200105

main87915-20040-J7iGXE10200101-200105

DARK BLUE MC.,8P8

main87915-53010-A0iGXE1#,JCE1#,SXE10200105-200507

SUPER WHITE 2,040

main87915-53010-A1iGXE1#,JCE1#,SXE10200105-200507

WHITE PEARL CS.,062

main87915-53010-B0iGXE1#,JCE1#,SXE10200105-200507

SILVER ME.,1C0

main87915-53010-B1iGXE1#,JCE1#,SXE10200105-200308

DK.GRAY M.M.,1C6

main87915-53010-B2iGXE10,JCE1#,SXE10200110-200203

main87915-53010-C0iGXE1#,JCE1#,SXE10200105-200507

BLACK,202

main87915-53010-D0iGXE1#,JCE1#,SXE10200105-200507

SUPER RED 5,3P0

main87915-53010-E0iGXE1#..ATM200308-200507

BEIGE ME.,4R4

main87915-53010-F0iGXE1#,JCE1#,SXE10200105-200308

SUPER BRIGHT YELLOW,576

main87915-53010-F1iGXE1#,JCE1#..WG200106-200308

GOLD ME.,585

main87915-53010-G0iGXE1#,JCE1#,SXE10200105-200308

DARK GREEN MC.,6R4

main87915-53010-J0iGXE1#,JCE1#,SXE10200105-200308

DK.BLUE MC.,8N8

main87915-53010-J1iGXE10,JCE1#,SXE10200110-200203

main87915-53010-J3iGXE1#,JCE1#,SXE10200308-200507

DK.BLUE M.M.,8P4

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-53010-A0iGXE10,SXE10199810-200105

SUPER WHITE 2,040

main87940-53010-A1iGXE10,SXE10199810-200105

SU.WHITE PM,051

main87940-53010-B0iGXE10,SXE10199810-200105

SILVER ME.,1C0

main87940-53010-B1iGXE10,SXE10199810-200105

DK.GRAY M.M.,1C6

main87940-53010-C0iGXE10,SXE10199810-200105

BLACK,202

main87940-53010-C1iSXE10;GXE10..ATM200009-200103

main87940-53010-D0iGXE10,SXE10199810-200105

RED M.M.,3N3

main87940-53010-D1iGXE10,SXE10199906-200105

SUPER RED 5,3P0

main87940-53010-F0iGXE10,SXE10199810-200105

SUPER BRIGHT YELLOW,576

main87940-53010-G0iGXE10,SXE10199810-200105

DK. GREEN MC.,6Q7

main87940-53010-J0iGXE10,SXE10199810-200105

BLUE MC.,8M6

main87940-53010-J1iSXE10;GXE10..ATM199906-200105

main87940-53010-J2iGXE10200101-200105

DARK BLUE MC.,8P8

main87940-53050-A0iGXE10,SXE10199810-200105

main87940-53050-A1iGXE10,SXE10199810-200105

main87940-53050-B0iGXE10,SXE10199810-200105

main87940-53050-B1iGXE10,SXE10199810-200105

main87940-53050-C0iGXE10,SXE10199810-200105

main87940-53050-C1iSXE10;GXE10..ATM200009-200103

main87940-53050-D0iGXE10,SXE10199810-200105

main87940-53050-D1iGXE10,SXE10199906-200105

main87940-53050-F0iGXE10,SXE10199810-200105

main87940-53050-G0iGXE10,SXE10199810-200105

main87940-53050-J0iGXE10,SXE10199810-200105

main87940-53050-J1iSXE10;GXE10..ATM199906-200105

main87940-53050-J2iGXE10200101-200105

main87940-53080-A0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87940-53080-A1iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87940-53080-B0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87940-53080-B1iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87940-53080-B2iGXE10,JCE1#,SXE10200110-200203

main87940-53080-C0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87940-53080-D0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200507

main87940-53080-E0iGXE1#..ATM200308-200507

BEIGE ME.,4R4

main87940-53080-F0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87940-53080-F1iGXE1#,JCE1#..WG200106-200308

GOLD ME.,585

main87940-53080-G0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87940-53080-J0iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200105-200308

main87940-53080-J1iGXE10,JCE1#,SXE10200110-200203

main87940-53080-J2iSXE10..ATM;GXE1#,JCE1#; SXE10..MTM200308-200507

main87940-53170-A0iSXE10..ATM; SXE10..MTM200208-200507

main87940-53170-A1iSXE10..ATM; SXE10..MTM200208-200507

main87940-53170-B0iSXE10..ATM; SXE10..MTM200208-200507

main87940-53170-B1iSXE10..ATM; SXE10..MTM200208-200308

main87940-53170-C0iSXE10..ATM; SXE10..MTM200208-200507

main87940-53170-D0iSXE10..ATM; SXE10..MTM200208-200507

main87940-53170-F0iSXE10..ATM; SXE10..MTM200208-200308

main87940-53170-G0iSXE10..ATM; SXE10..MTM200208-200308

main87940-53170-J0iSXE10..ATM; SXE10..MTM200208-200308

main87940-53170-J1iSXE10..ATM; SXE10..MTM200308-200507

87945COVER, OUTER MIRROR, LH

main87945-12010-A1iGXE1#,JCE1#,SXE10200105-200507

SUPER WHITE 2,040

main87945-12010-A3iGXE1#,JCE1#,SXE10200105-200507

WHITE PEARL CS.,062

main87945-12010-B3iGXE1#,JCE1#,SXE10200105-200507

SILVER ME.,1C0

main87945-12010-B4iGXE1#,JCE1#,SXE10200105-200308

DK.GRAY M.M.,1C6

main87945-12010-B8iGXE10,JCE1#,SXE10200110-200203

main87945-12010-C1iGXE1#,JCE1#,SXE10200105-200507

BLACK,202

main87945-12010-D2iGXE1#,JCE1#,SXE10200105-200507

SUPER RED 5,3P0

main87945-12010-E2iGXE1#..ATM200308-200507

BEIGE ME.,4R4

main87945-12010-F0iGXE1#,JCE1#,SXE10200105-200308

SUPER BRIGHT YELLOW,576

main87945-12010-F1iGXE1#,JCE1#..WG200106-200308

GOLD ME.,585

main87945-12010-G0iGXE1#,JCE1#,SXE10200105-200308

DARK GREEN MC.,6R4

main87945-12010-J0iGXE1#,JCE1#,SXE10200308-200507

DK.BLUE M.M.,8P4

main87945-12010-J3iGXE1#,JCE1#,SXE10200105-200308

DK.BLUE MC.,8N8

main87945-12010-J7iGXE10,JCE1#,SXE10200110-200203

main87945-20040-A0iGXE10,SXE10199810-200105

SUPER WHITE 2,040

main87945-20040-A2iGXE10,SXE10199810-200105

SU.WHITE PM,051

main87945-20040-B3iGXE10,SXE10199810-200105

SILVER ME.,1C0

main87945-20040-B4iGXE10,SXE10199810-200105

DK.GRAY M.M.,1C6

main87945-20040-C1iGXE10,SXE10199810-200105

BLACK,202

main87945-20040-D3iGXE10,SXE10199810-200105

RED M.M.,3N3

main87945-20040-D5iGXE10,SXE10200001-200004

SUPER RED 5,3P0

main87945-20040-F0iGXE10,SXE10199810-200105

SUPER BRIGHT YELLOW,576

main87945-20040-G5iGXE10,SXE10199810-200105

DK. GREEN MC.,6Q7

main87945-20040-J2iGXE10,SXE10199810-200105

BLUE MC.,8M6

main87945-20040-J4iSXE10;GXE10..SED..ATM200105

main87945-20040-J7iGXE10200101-200105

DARK BLUE MC.,8P8

9010506185

main90105-06185

9321915014

main93219-15014

9354055012

main93540-55012

12 parts on this diagram · 2 diagrams in section
