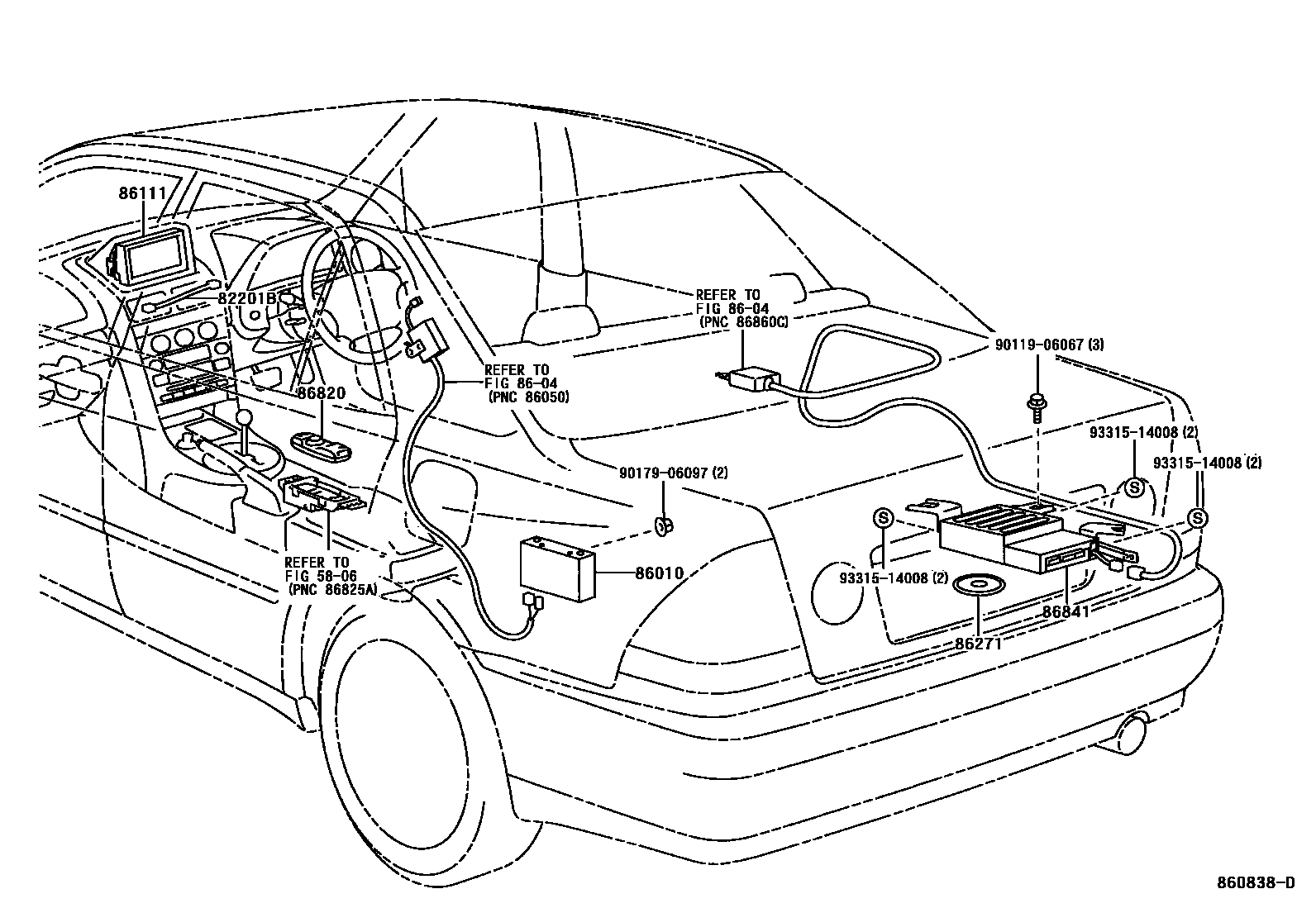

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

82201BWIRE, INSTRUMENT PANEL

main82201-53010iGXE10,SXE10199810-200105

86010TUNER ASSY, TELEVISION

main86010-53010iGXE10,SXE10199810-200105

main86010-53020iGXE1#,JCE1#..WG200308

main86010-53030iGXE10,SXE10..SED200105

8604ANTENNA

→ Go to FIG 86-04

86111MULTI-DISPLAY

main86111-53010iGXE10,SXE10199810-200105

main86111-53020iGXE1#,JCE1#,SXE10200105-200507

86271DISC, DISC PLAYER

main86271-13030iGXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10200105-200309

main86271-13031iGXE1#,JCE1#,SXE10200309-200404

main86271-13032iGXE1#,JCE1#,SXE10200404-200408

main86271-13033iGXE1#,JCE1#,SXE10200409

main86271-33011iGXE10,SXE10199810-200105

86820CONTROLLER ASSY, NAVIGATION

main86820-53020iGXE10,SXE10199810-200105

main86820-53030iGXE1#,JCE1#,SXE10200105

86841COMPUTER, NAVIGATION

main86841-51030iGXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10200105

main86841-53010iGXE10,SXE10199810-200105

9011906067

main90119-06067

9017906097

main90179-06097

9331514008

main93315-14008

11 parts on this diagram · 4 diagrams in section
