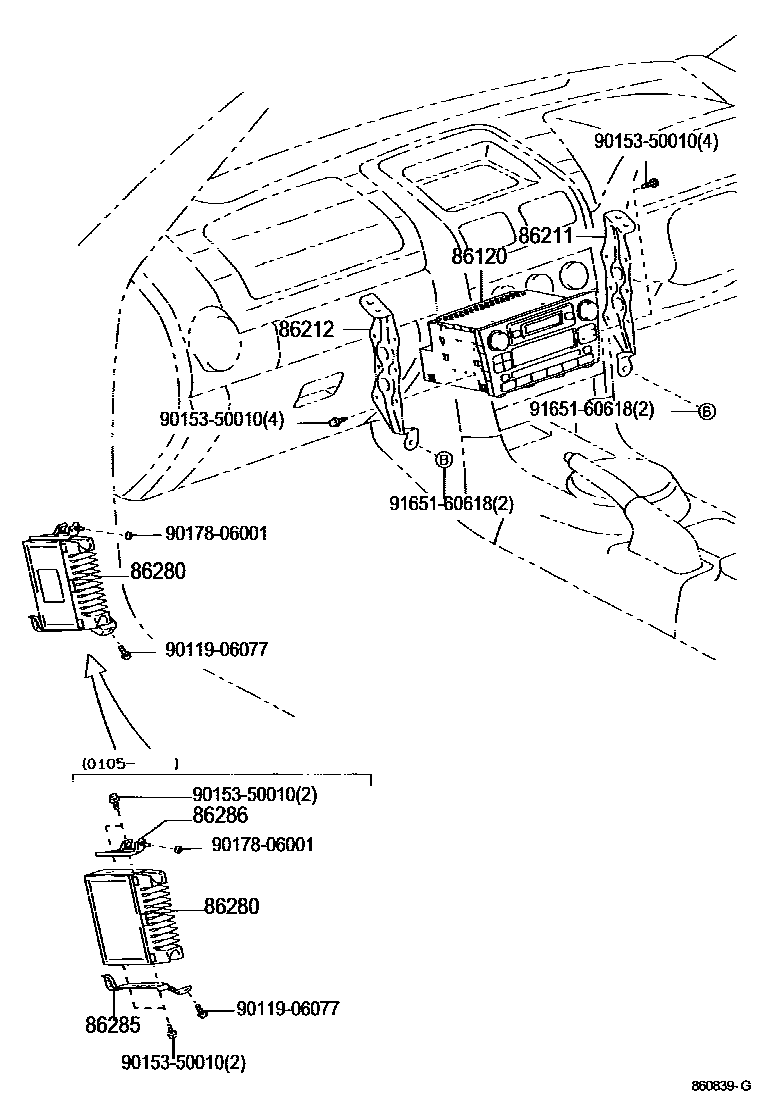

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-33280iGXE10200101-200105

main86120-53010iGXE10,SXE10199810-200105

main86120-53020iGXE10,SXE10199810-199904

main86120-53021iGXE10,SXE10199904-200105

main86120-53070iGXE10,SXE10..SED200105-200208

main86120-53071iGXE1#,JCE1#..WG; GXE10,SXE10..SED200208-200507

main86120-53080iGXE1#,JCE15,SXE10200105-200208

main86120-53081iGXE1#,JCE15,SXE10; JCE10200208-200507

main86120-53170iSXE10;GXE1#..ATM200308-200507

86211BRACKET, RADIO, NO.1

main86211-53010iGXE10,SXE10199810-199811

main86211-53011iGXE10,SXE10199811-200105

86212BRACKET, RADIO, NO.2

main86212-53010iGXE10,SXE10199810-199811

main86212-53011iGXE10,SXE10199811-200105

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53010iGXE10,SXE10199810-199812

main86280-53011iGXE10,SXE10199812-200105

main86280-53040iGXE10,SXE10..SED200105

main86280-53060iGXE1#,JCE1#..WG200106

86285BRACKET, AMPLIFIER, NO.1

main86285-53030iGXE1#,JCE1#,SXE10200105

86286BRACKET, AMPLIFIER, NO.2

main86286-53010iGXE1#,JCE1#,SXE10200105

9011906077

main90119-06077

9015350010

main90153-50010

9017806001

main90178-06001

9165160618

main91651-60618

10 parts on this diagram · 3 diagrams in section
