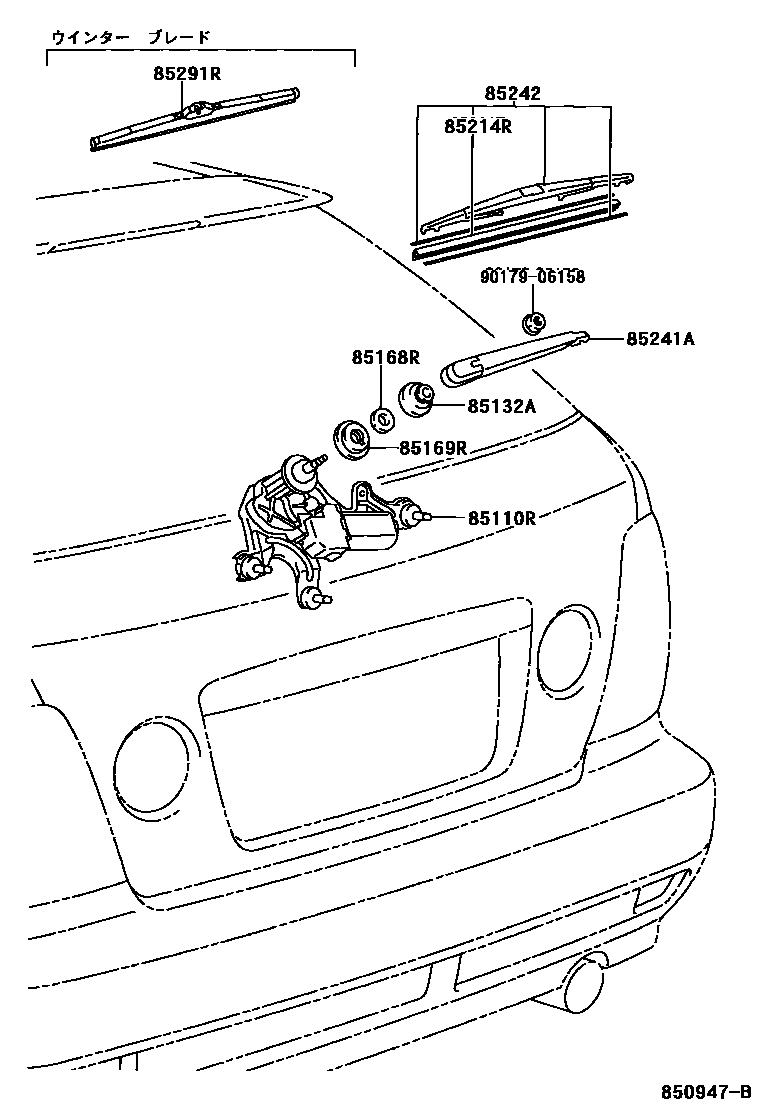

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-53010iGXE1#,JCE1#..WG200308

85132ACOVER, REAR WIPER SHAFT

main85132-53010iGXE1#,JCE1#..WG200106-200308

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iGXE1#,JCE1#..WG200106-200308

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-53010iGXE1#,JCE1#..WG200106-200308

85214RRUBBER, REAR WIPER

main85214-30280iGXE1#,JCE1#..WG200111-200308

main85214-53070iGXE1#,JCE1#..WG200308

85241AARM, REAR WIPER

main85241-53010iGXE1#,JCE1#..WG200106-200308

main85241-53020iGXE1#,JCE1#..WG200106-200308

85242BLADE, RR WIPER

main85242-30040iGXE1#,JCE1#..WG200106-200507

main85242-53010iGXE1#,JCE1#..WG200106-200507

85291RBLADE,REAR WIPER, WINTER

main85291-53040iGXE1#,JCE1#..WG200106-200308

main85291-60030iGXE1#,JCE1#..WG200106-200308

9017906158

main90179-06158

9 parts on this diagram · 1 diagram in section
