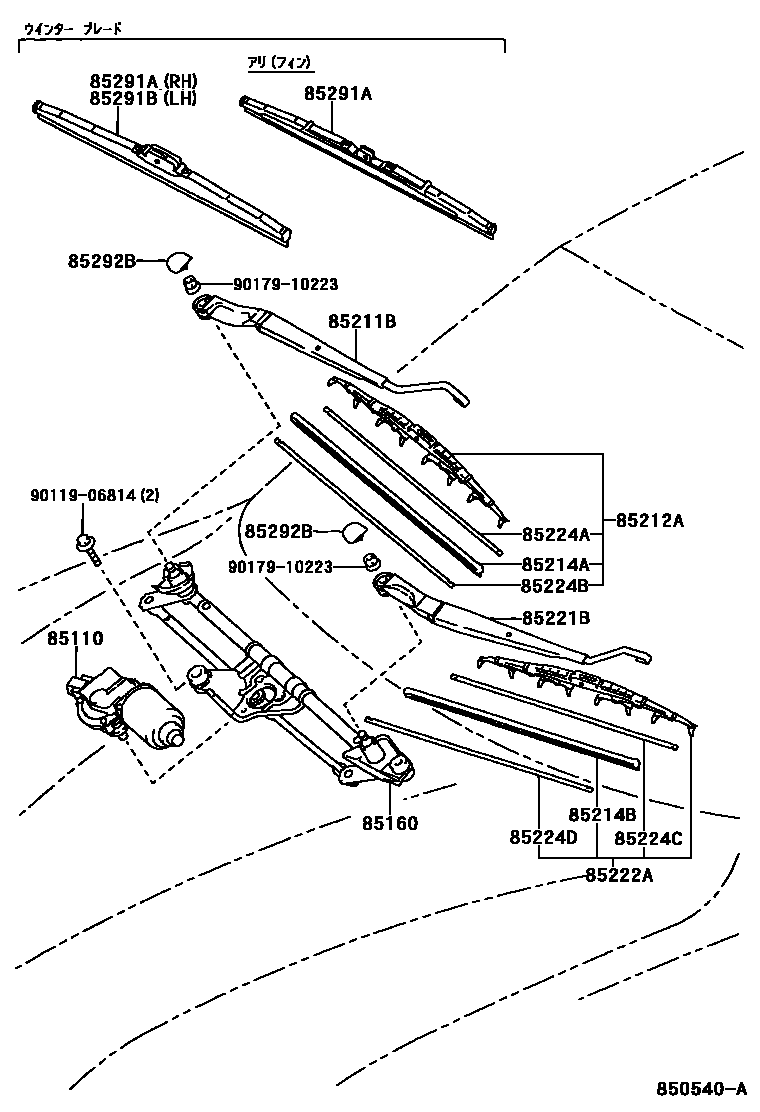

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-53010iGXE1#,JCE1#,SXE10200105-200308

main85110-53020iGXE10,SXE10199810-200105

85160LINK ASSY, WINDSHIELD WIPER

main85150-53010iGXE10,SXE10199810-200105

85211BARM, FRONT WIPER, RH

main85211-53010iGXE10,SXE10199810-200105

85212ABLADE, FR WIPER, RH

main85212-53010iGXE10,SXE10199810-200105

85214ARUBBER, WIPER, RH

main85214-22410iGXE10,SXE10200008-200105

main85214-33110iGXE10,SXE10199810-200008

main85214-48010iGXE1#,JCE1#,SXE10200405

85214BRUBBER, WIPER, LH

main85214-35040iGXE10,SXE10199810-200008

main85214-48020iGXE10,SXE10200008-200105

main85214-53040iGXE1#,JCE1#,SXE10200405

85221BARM, FRONT WIPER, LH

main85221-53010iGXE1#,JCE1#,SXE10200308

85222ABLADE, FR WIPER, LH

main85222-3H060iGXE10,SXE10199810-200008

main85222-48030iGXE10,SXE10200008-200105

main85222-53010iGXE1#,JCE1#,SXE10200405

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33040iGXE10,SXE10199810-200105

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33040iGXE10,SXE10199810-200105

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-35040iGXE10,SXE10199810-200105

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-35040iGXE10,SXE10199810-200105

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22090iGXE10,JCE1#..WG200106-200107

main85291-22100iGXE1#,JCE1#,SXE10200308

main85291-53010iGXE10,SXE10199810-200105

main85291-53020iGXE10,SXE10..SED200105-200107

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33050iGXE1#,JCE1#,SXE10200107-200308

main85291-53030iGXE10,SXE10199810-200105

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGXE10,SXE10199810-200105

9011906814

main90119-06814

9017910223

main90179-10223

17 parts on this diagram · 2 diagrams in section
