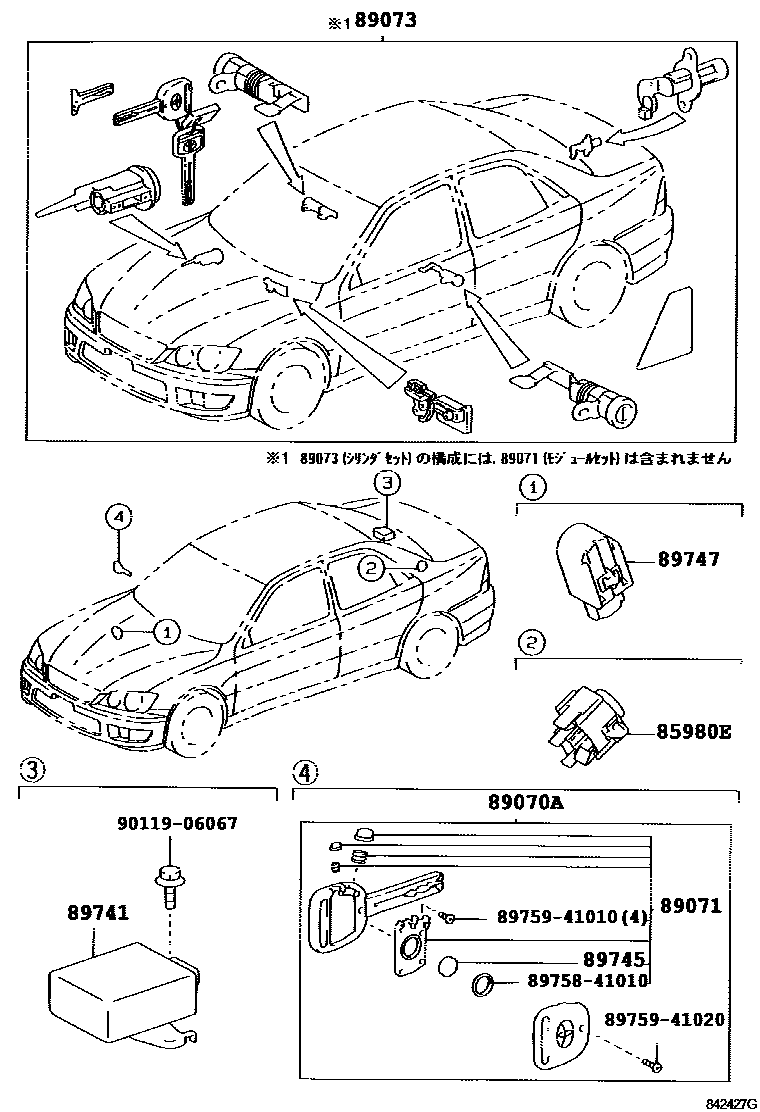

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1

85980ERELAY ASSY, DOOR CONTROL

main85980-22210iGXE10,SXE10199810-200105

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-53210iGXE10,SXE10199810-200105

main89070-53730iJCE1#200106

main89070-53740iGXE1#..WG..ATM200106

main89070-53780iGXE10,SXE10..SED200105

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-26010×2iGXE1#..WG200106-200507

main89071-30050×2iJCE1#200308-200507

main89071-32010×2iGXE10..SED;SXE10..ATM; SXE10..MTM200105-200507

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-53090iSXE10..MTM200208-200507

main69005-53100iGXE10,SXE10..SED200105-200507

main69005-53160iSXE10..MTM200208-200507

main69005-53170iGXE1#..WG200106-200507

main69005-53180iJCE1#200106-200507

main69005-53190iJCE1#200106-200308

main69005-53200iJCE1#200106-200507

main89073-53010iGXE10,SXE10199810-200105

main89073-53210iGXE10,SXE10199905-200005

89741RECEIVER, DOOR CONTROL

main89741-53010iGXE10,SXE10199810-200105

main89741-53080iGXE1#,JCE1#..WG200106

main89741-53140iGXE10,SXE10..SED200105

89745BATTERY, TRANSMITTER

main89745-26010×2iGXE1#,JCE1#..WG200106-200507

main89745-41010iSXE10..ATM200208-200308

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010iGXE10,SXE10199810-200105

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906067

main90119-06067

11 parts on this diagram · 3 diagrams in section
