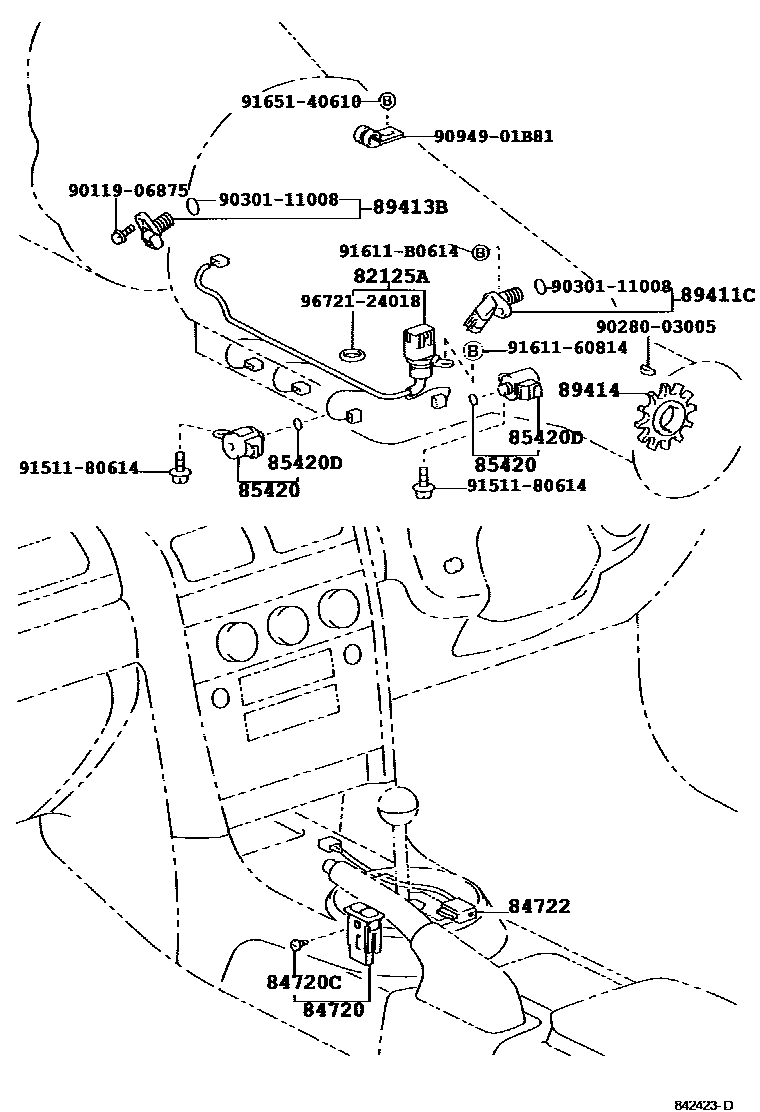

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1

82125AWIRE, TRANSMISSION

main82125-22250iGXE10..ATM199810-200105

main82125-22260iGXE15200201

main82125-30440iGXE15,JCE15200106

main82125-30460iJCE10,SXE10..ATM200105

main82125-31010iJCE15200106

84720SWITCH ASSY, PATTERN SELECT

main84720-53010iGXE10,SXE10..ATM199810-200105

main84720-53020iGXE10..ATM200101-200105

EURO EDITION *(E)

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10420iGXE1#,JCE1#,SXE10..ATM200105

84722SWITCH, TRANSMISSION CONTROL

main84722-53010iGXE10,SXE10..ATM199810-200105

85420SOLENOID ASSY, TRANSMISSION

main35250-30020×2iGXE10..ATM200108-200301

main35250-30030×2iGXE10..ATM200301

main35250-30040iGXE15200206-200209

main35250-30050iGXE15200206

main35250-30060iGXE15200206-200209

main35250-30070iGXE15200206

main35250-50010iJCE10,SXE10..ATM200108

main35250-50030iJCE10,SXE10..ATM200108

main85420-22130×2iGXE10..ATM199810-200105

main85420-22150iGXE15200201-200206

main85420-22170iGXE15200201-200206

main85420-30240iSXE10..ATM199810-200105

main85420-30250iSXE10..ATM199810-200105

main85420-30260iSXE10..ATM199810-200105

main85420-30270iJCE10,SXE10..ATM200105-200108

main85420-50020×2iJCE15200106

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iGXE10,SXE10..ATM199810-200105

89411CSENSOR, SPEED

main89411-50010iGXE10..ATM; SXE10..ATM199810-200105

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iGXE10..ATM200105

89414ROTOR, SENSOR

main89414-22020iGXE10..ATM200105

main89414-22040iGXE10199810-199812

main89414-30040iSXE10..ATM199810-200105

9011906875

main90119-06875

9028003005

main90280-03005

9030111008

main90301-11008

9094901B81

main90949-01B81

9151180614

main91511-80614

9161160814

main91611-60814

91611B0614

main91611-B0614

9165140610

main91651-40610

9672124018

main96721-24018

18 parts on this diagram · 5 diagrams in section
