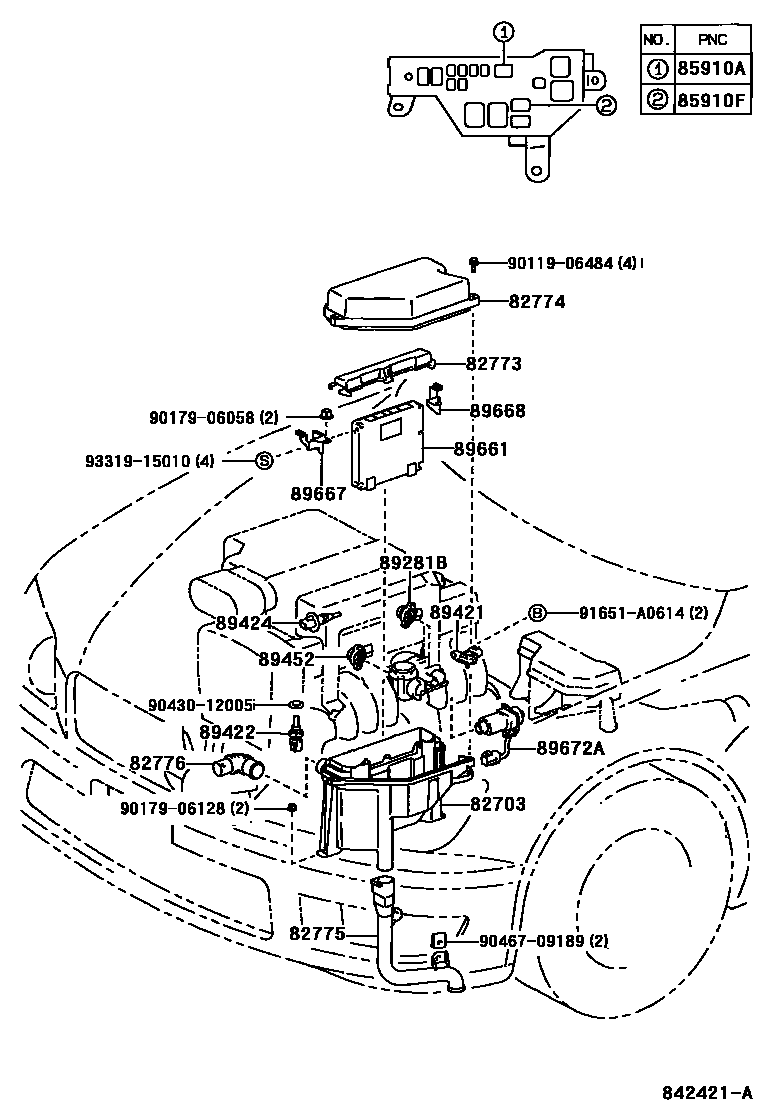

ELECTRONIC FUEL INJECTION SYSTEM
82703BOX SUB-ASSY, ENGINE ROOM ECU
82773HOOD, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
82776DUCT, ENGINE ROOM ECU OUTLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89281BSENSOR, ACCEL POSITION
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906484
main90119-06484
9017906058
main90179-06058
9017906128
main90179-06128
9043012005
main90430-12005
9046709189
main90467-09189
91651A0614
main91651-A0614
9331915010
main93319-15010
23 parts on this diagram · 3 diagrams in section
