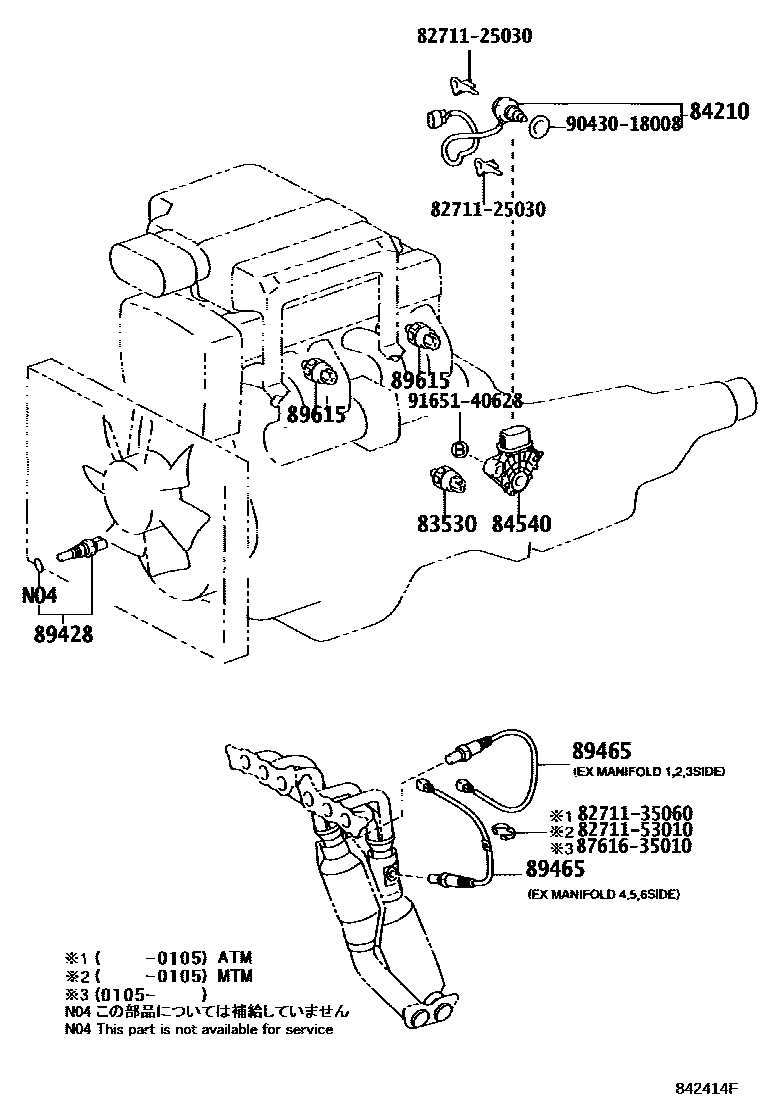

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGXE10199810-200105

main83530-60020iGXE1#,JCE1#199810-200105

84210SWITCH ASSY, BACK-UP LAMP

main84210-53010iGXE10..SED..MTM200005-200105

sub84210-35030

main84210-60030iSXE10..MTM199810-200105

84540SWITCH ASSY, NEUTRAL START

main84540-30320iGXE15,JCE1#,SXE10..ATM199810-200105

main84540-53010iGXE10..ATM199810-200105

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iGXE10,SXE10199810-200105

89465SENSOR, OXYGEN

main89465-22290iGXE15200201

main89465-41050iGXE10..MTM200005-200105

main89465-53010iGXE10..ATM199810-200105

main89465-53020iGXE10..ATM199810-200105

main89465-53060iSXE10..ATM199810-200105

main89465-53070iSXE10..MTM199810-200105

main89465-53080iSXE10..ATM199810-200105

main89465-53130iGXE10..MTM200005-200105

main89465-53160iJCE1#200106

main89465-53170iJCE1#200106

89615SENSOR, KNOCK CONTROL

main89615-12090iJCE1#200106

main89615-12120iSXE10199810-200105

main89615-22050iGXE10199810-200309

sub89615-52010

main89615-52010iGXE1#200309

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

8271135060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35060

8271153010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-53010

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9043018008

main90430-18008

9165140628

main91651-40628

12 parts on this diagram · 10 diagrams in section
