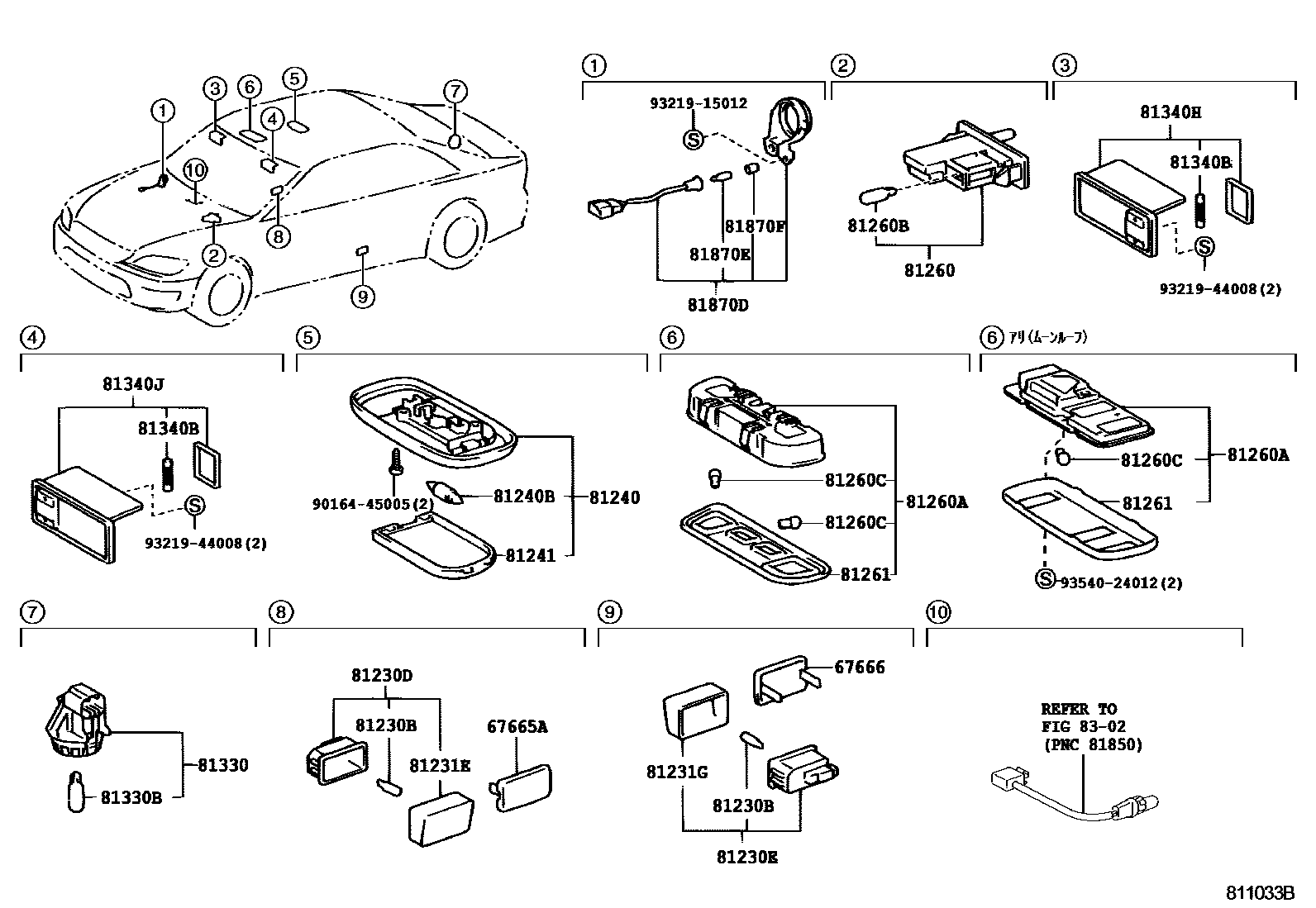

INTERIOR LAMP
67665AREFLECTOR, FRONT DOOR TRIM, RH
67666REFLECTOR, FRONT DOOR TRIM, LH
81230BBULB(FOR COURTESY LAMP)
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81231ELENS (FOR FRONT DOOR COURTESY LAMP, RH)
81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
MD.CHARCOAL,TRIM2#
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
81260BBULB(FOR GLOVE BOX)
81260CBULB(FOR MAP LAMP)
81261LENS AND COVER, MAP LAMP
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
81340HLAMP ASSY, VANITY, RH
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
IVORY,TRIM0#
L EDITION *(L),MD.CHARCOAL,TRIM20
81340JLAMP ASSY, VANITY, LH
IVORY,TRIM0#
MD.CHARCOAL,TRIM2#
IVORY,TRIM0#
L EDITION *(L),MD.CHARCOAL,TRIM20
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
81870FCAP, KEY CYLINDER LAMP BULB
8302INDICATOR
9016445005
main90164-45005
9321915012
main93219-15012
9321944008
main93219-44008
9354024012
main93540-24012
28 parts on this diagram · 3 diagrams in section
