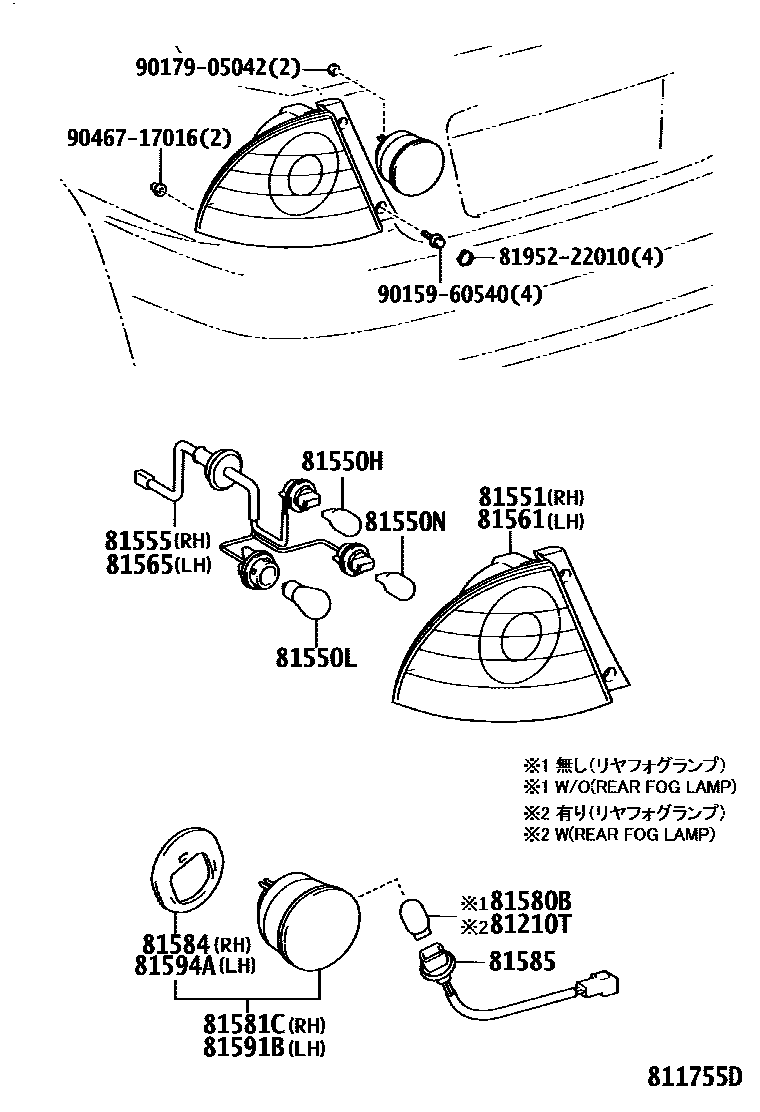

REAR COMBINATION LAMP
81210TBULB, REAR FOG LAMP
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551LENS, REAR COMBINATION LAMP, RH
sub81551-53011
sub81551-53012
METALLIC,040 ,062 ,1C0 ,576
DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8
METALLIC,040 ,062 ,1C0 ,576 ,585
DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561LENS, REAR COMBINATION LAMP, LH
sub81561-53011
sub81561-53012
METALLIC,040 ,062 ,1C0 ,576
DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8
METALLIC,040 ,062 ,1C0 ,576 ,585
DARK METALLIC,1C6 ,202 ,3P0 ,6R4 ,8N8
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580BBULB (FOR REAR LAMP)
81584PACKING, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
81594AGASKET, REAR LAMP LH
8195222010SOCKET, FAILURE INDICATOR LAMP BULB
main81952-22010
9015960540
main90159-60540
9017905042
main90179-05042
9046717016
main90467-17016
18 parts on this diagram · 2 diagrams in section
