FOG LAMP

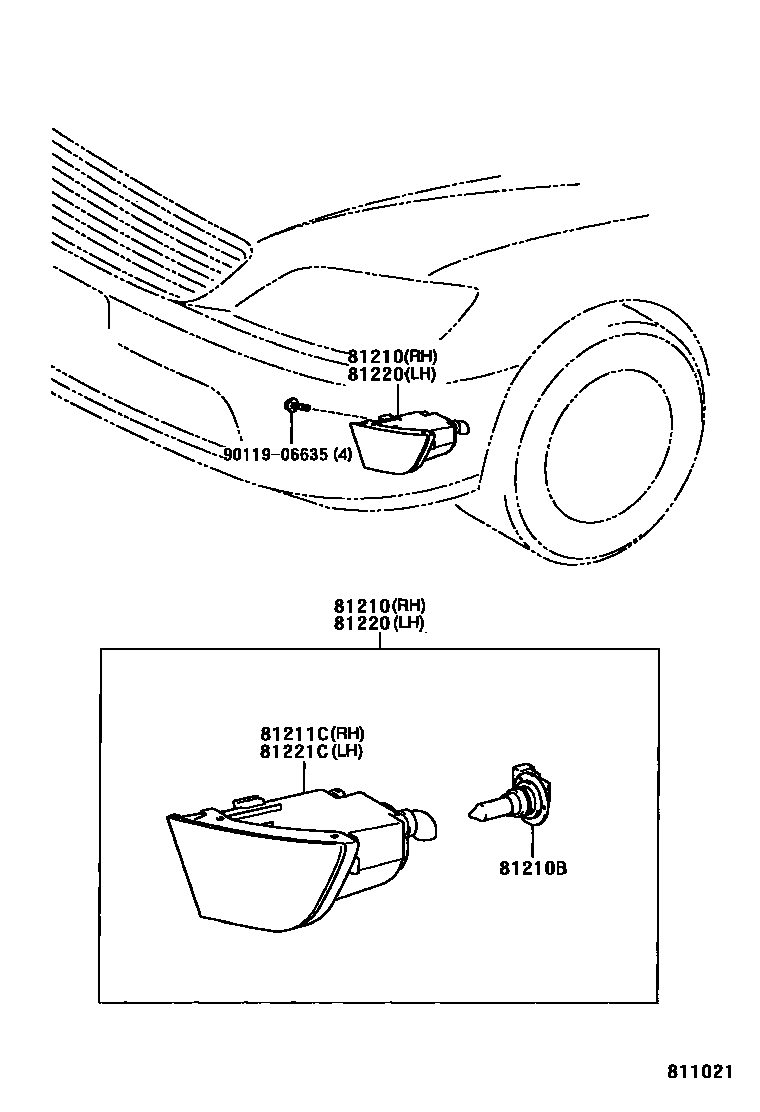

Parts diagram

81210LAMP ASSY, FOG

main81210-53010i199810-200005

main81210-53011i200005-200105

81210BBULB, FOG LAMP

main90981-13047×2i199810-200105

main90981-13071×2i200208-200507

81211CLAMP UNIT, FOG LAMP, RH

main81211-53010i199810-200005

main81211-53011i200005-200105

main81211-53040i200105-200208

main81211-53050i200106-200208

main81211-53070i200106-200208

main81211-53090i200208-200308

main81211-53100i200208-200308

main81211-53130i200208-200308

main81211-53140i200208-200308

main81211-53180i200308-200507

main81211-53190i200308-200507

main81211-53220i200308-200507

main81211-53230i200308-200507

81220LAMP ASSY, FOG, LH

main81220-53010i199810-200005

main81220-53011i200005-200105

81221CLAMP UNIT, FOG LAMP, LH

main81221-53010i199810-200005

main81221-53011i200005-200105

main81221-53040i200105-200208

main81221-53050i200106-200208

main81221-53070i200106-200208

main81221-53090i200208-200308

main81221-53100i200208-200308

main81221-53130i200208-200308

main81221-53140i200208-200308

main81221-53180i200308-200507

main81221-53190i200308-200507

main81221-53220i200308-200507

main81221-53230i200308-200507

9011906635

main90119-06635

6 parts on this diagram · 4 diagrams in section
