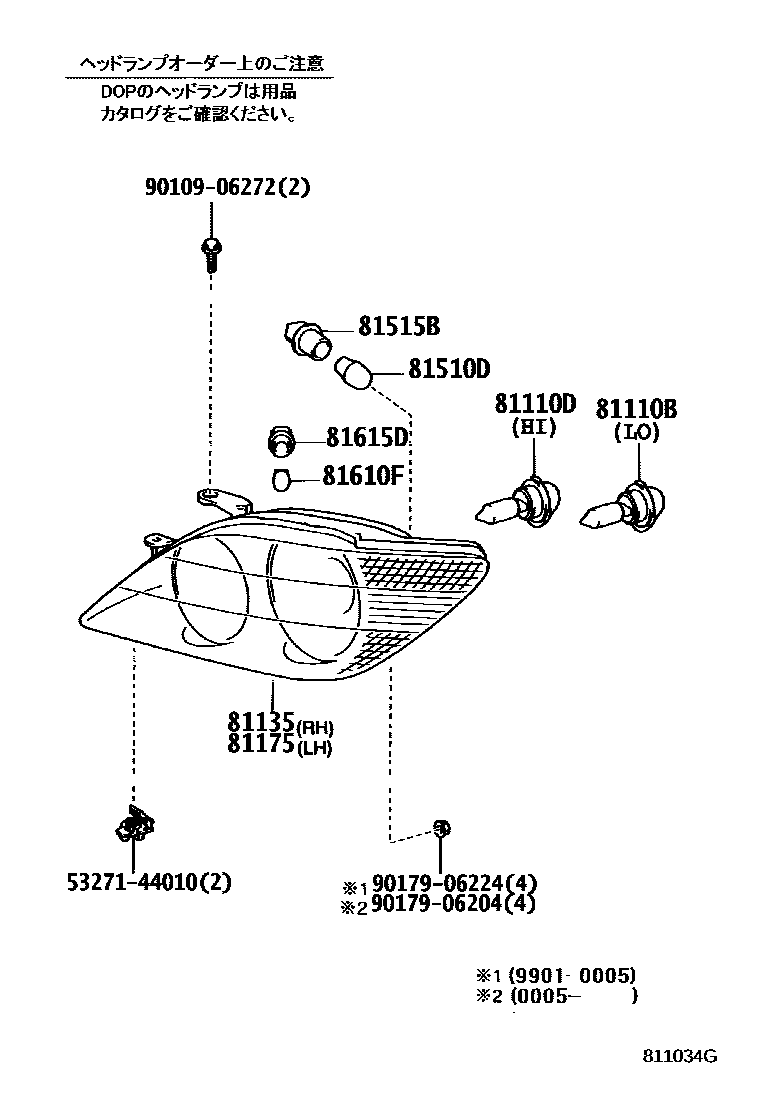

HEADLAMP

0001 1����� �������� 0002 1������-�� ��������

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iGXE10,SXE10199810-200308

sub90981-13047

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041iGXE10,SXE10199810-200308

sub90981-13046

main90981-13074iGXE1#,JCE1#,SXE10200105-200507

81135UNIT ASSY, HEADLAMP, RH

main81130-53010iGXE10,SXE10199810-200308

sub81130-53070

main81130-53050iGXE1#,JCE1#,SXE10200105-200308

sub81145-53050

main81145-53130iGXE1#,JCE1#,SXE10200308-200507

main81145-53140iGXE1#..ATM200308-200507

81175UNIT ASSY, HEADLAMP, LH

main81170-53010iGXE10,SXE10199810-200308

sub81170-53070

main81170-53050iGXE1#,JCE1#,SXE10200105-200308

sub81185-53050

main81185-53130iGXE1#,JCE1#,SXE10200308-200507

main81185-53140iGXE1#..ATM200308-200507

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iGXE10,SXE10199810-200308

main90981-15011iGXE1#,JCE1#,SXE10200105-200507

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60032iGXE1#,JCE1#,SXE10200105-200507

main90075-99128iGXE1#,JCE1#,SXE10199810-200308

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iGXE10,SXE10199810-200507

81615DSOCKET, CLEARANCE LAMP

main90075-60021iGXE10,SXE10199810-200308

main90075-60030iGXE1#,JCE1#,SXE10200105-200507

5327144010COVER, HORN HOLE, RH

main53271-44010

9010906272

main90109-06272

9017906204

main90179-06204

9017906224

main90179-06224

12 parts on this diagram · 2 diagrams in section
