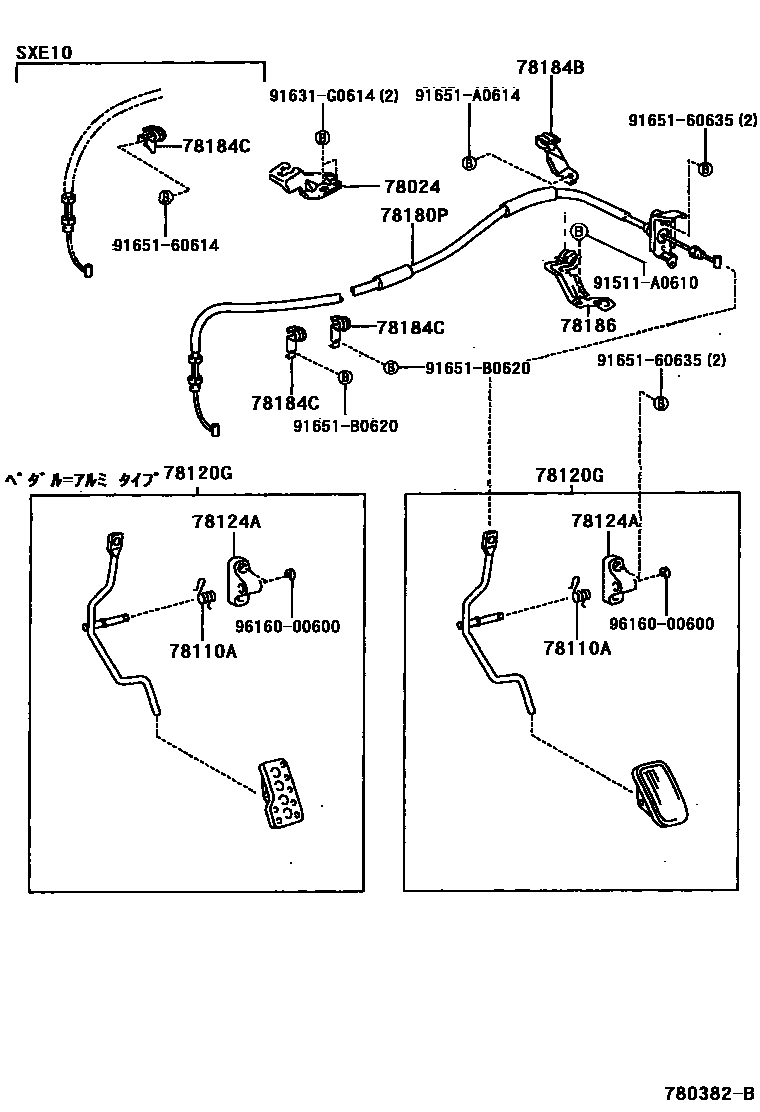

ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88571iSXE10200105

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-50010iGXE10,SXE10199810-200105

78120GROD ASSY, ACCELERATOR PEDAL

main78120-53010iGXE10;SXE10..ATM199810-200105

main78120-53030iGXE1#,JCE1#,SXE10200105-200308

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-50020iGXE1#,JCE10,SXE10200308

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A740iJCE1#200106

main78180-53010iGXE10199810-200105

main78180-53020iSXE10199810-200105

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-53010iGXE1#,SXE10200105-200308

78184CBRACKET, ACCELERATOR CONTROL CABLE

main78184-53020×2iGXE10199810-200105

main78184-53030iSXE10199810-200105

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-30160iJCE1#200106

91511A0610

main91511-A0610

91631G0614

main91631-G0614

9165160614

main91651-60614

9165160635

main91651-60635

91651A0614

main91651-A0614

91651B0620

main91651-B0620

9616000600

main96160-00600

15 parts on this diagram · 1 diagram in section
