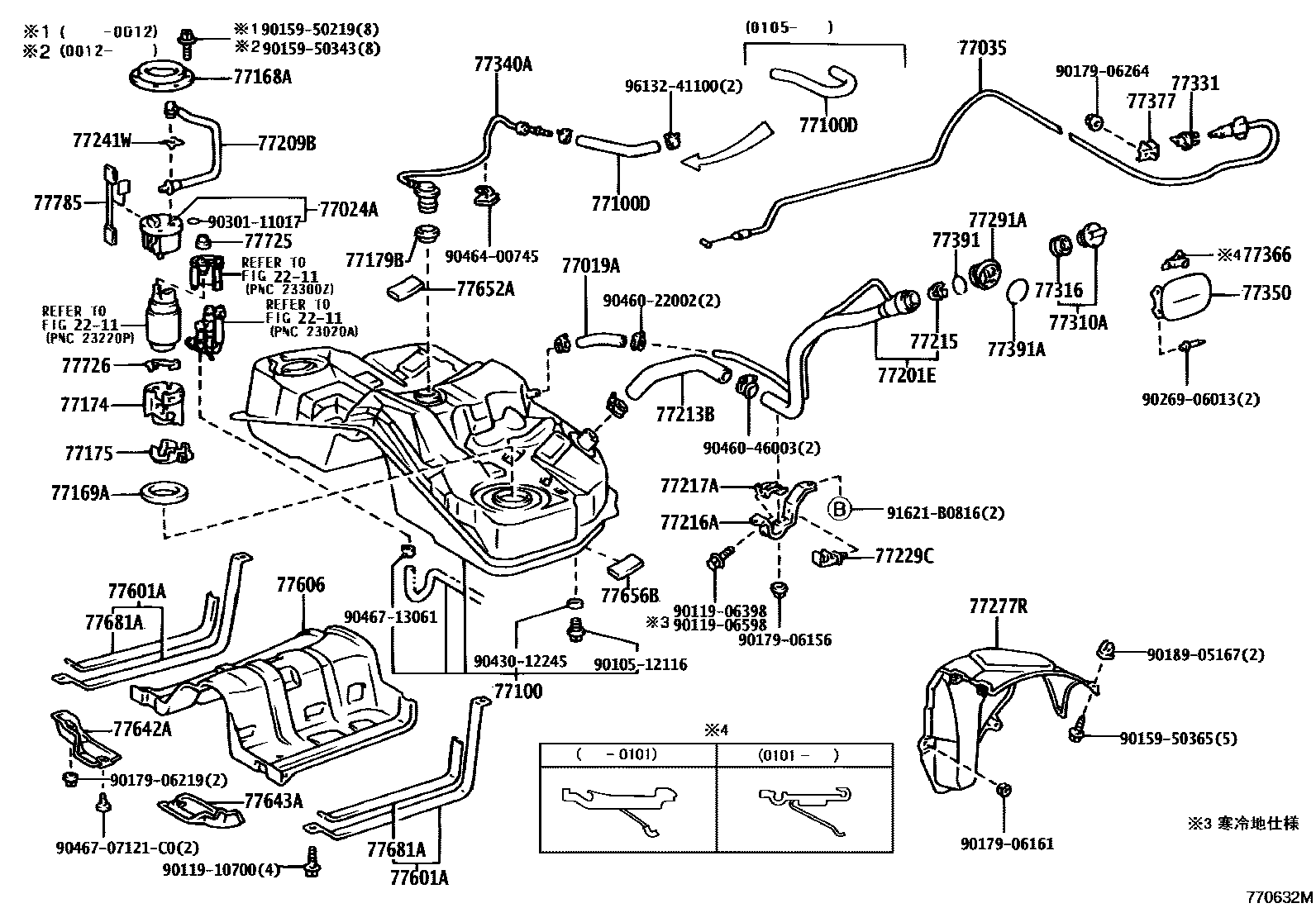

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

main77019-51010iGXE10,SXE10199810-200105

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-30040iJCE1#200106

main77024-30070iGXE10,SXE10200005-200105

main77024-53010iGXE10,SXE10199810-200005

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-53010iGXE10,SXE10199810-200105

main77035-53030iGXE1#,JCE1#..WG200308

77100TANK ASSY, FUEL

main77001-53010iGXE10,SXE10199810-200105

main77001-53011iGXE1#,SXE10200204

main77001-53040iJCE1#200106-200204

main77001-53041iJCE1#200204

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77249-30030iGXE1#,JCE1#,SXE10200105

main95333-06020iGXE10,SXE10199810-200105

77168APLATE, FUEL TANK VENT TUBE SET

main77168-12240iGXE10,SXE10200012-200105

main77168-33040iGXE10,SXE10199810-200012

main77168-33050iGXE1#,JCE1#,SXE10200107

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iGXE1#,JCE1#,SXE10200105

77174SUPPORT, FUEL SUCTION, NO.1

main77174-33010iGXE10,SXE10199810-200005

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30030iJCE1#200106

main77175-30050iGXE10,SXE10200005-200105

main77175-33010iGXE10,SXE10199810-200005

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-33010iGXE10,SXE10199810-200105

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-53020iGXE10,SXE10199810-200011

main77201-53030iGXE10,SXE10200011-200105

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-30070iGXE10,SXE10199810-199902

main77209-51020iGXE10,SXE10200005-200105

main77209-53010iGXE10,SXE10199902-199908

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22090iGXE1#,JCE1#,SXE10200109

main77213-30170iGXE10,SXE10200005-200105

main77213-51010iGXE10,SXE10199810-200005

77215PLATE, FUEL TANK FILLER PIPE FLANGE

main77215-51010iGXE1#,JCE1#,SXE10200105

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-51010iGXE1#,JCE1#,SXE10200105

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-51010iGXE1#,JCE1#,SXE10200105

77229CCLAMP, BREATHER TUBE

main77229-51010iGXE10,SXE10199810-200105

77241WCLIP, TUBE JOINT

main77241-33011iGXE1#,JCE1#,SXE10200105

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-53010iGXE10,SXE10199810-200105

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-53020iGXE10,SXE10199810-200101

main77291-53021iGXE10,SXE10200101-200105

77310ACAP ASSY, FUEL TANK

main77310-48010iGXE10,SXE10199810-200105

77316GASKET, FUEL TANK CAP

main77316-16010iGXE10,SXE10199810-200105

77331BRACKET, FUEL LID LOCK CONTROL

main77331-53010iGXE1#,JCE1#,SXE10200308

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-51010iGXE10,SXE10199810-200105

77350LID ASSY, FUEL FILLER OPENING

main77350-53010iGXE10,SXE10199810-200101

main77350-53011iGXE10,SXE10200101-200105

main77350-53020iGXE1#,JCE1#..WG200106-200208

main77350-53030iGXE10,SXE10..SED200208

main77350-53040iGXE1#,JCE1#..WG200208-200308

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iGXE10,SXE10199810-200101

main77360-33020iGXE10,SXE10200101-200105

main77360-53010iGXE1#,JCE1#,SXE10200309

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-22060iGXE1#,JCE1#,SXE10200105-200308

77391RING, FUEL INLET BOX

main77391-53020iGXE10,SXE10199810-200105

77391ARING, FUEL INLET BOX

main77391-53010iGXE1#,JCE1#,SXE10200308

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-51010×2iGXE10,SXE10199810-200005

main77601-53010×2iGXE1#,JCE1#,SXE10200105

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-53010iGXE10,SXE10199810-200105

77642APROTECTOR, FUEL TANK, NO.2

main77642-53010iGXE10,SXE10199810-200105

77643APROTECTOR, FUEL TANK, NO.3

main77643-53010iGXE10,SXE10199810-200105

77652ACUSHION, FUEL TANK, NO.2

main77652-12100×13iGXE10,SXE10199810-200105

77656BCUSHION, FUEL TANK, NO.6

main77656-53010×2iGXE10,SXE10199810-200105

77681ASEAT, FUEL TANK BAND

main77681-32060×2iGXE10,SXE10199810-200105

77725CUSHION, FUEL FILTER, NO.1

main77725-33010iGXE10,SXE10199810-200105

77726CUSHION, FUEL FILTER, NO.2

main77726-33010iGXE10,SXE10199810-200005

77785HARNESS, FUEL PUMP

main77785-33010iGXE10,SXE10199810-200005

main77785-52020iGXE1#,JCE1#,SXE10200105

9010512116

main90105-12116

9011906398

main90119-06398

9011906598

main90119-06598

9011910700

main90119-10700

9015950219

main90159-50219

9015950343

main90159-50343

9015950365

main90159-50365

9017906156

main90179-06156

9017906161

main90179-06161

9017906219

main90179-06219

9017906264

main90179-06264

9018905167

main90189-05167

9026906013

main90269-06013

9030111017

main90301-11017

9043012245

main90430-12245

9046022002

main90460-22002

9046046003

main90460-46003

9046400745

main90464-00745

9046707121C0

main90467-07121C0

9046713061

main90467-13061

91621B0816

main91621-B0816

9613241100

main96132-41100

62 parts on this diagram · 7 diagrams in section
