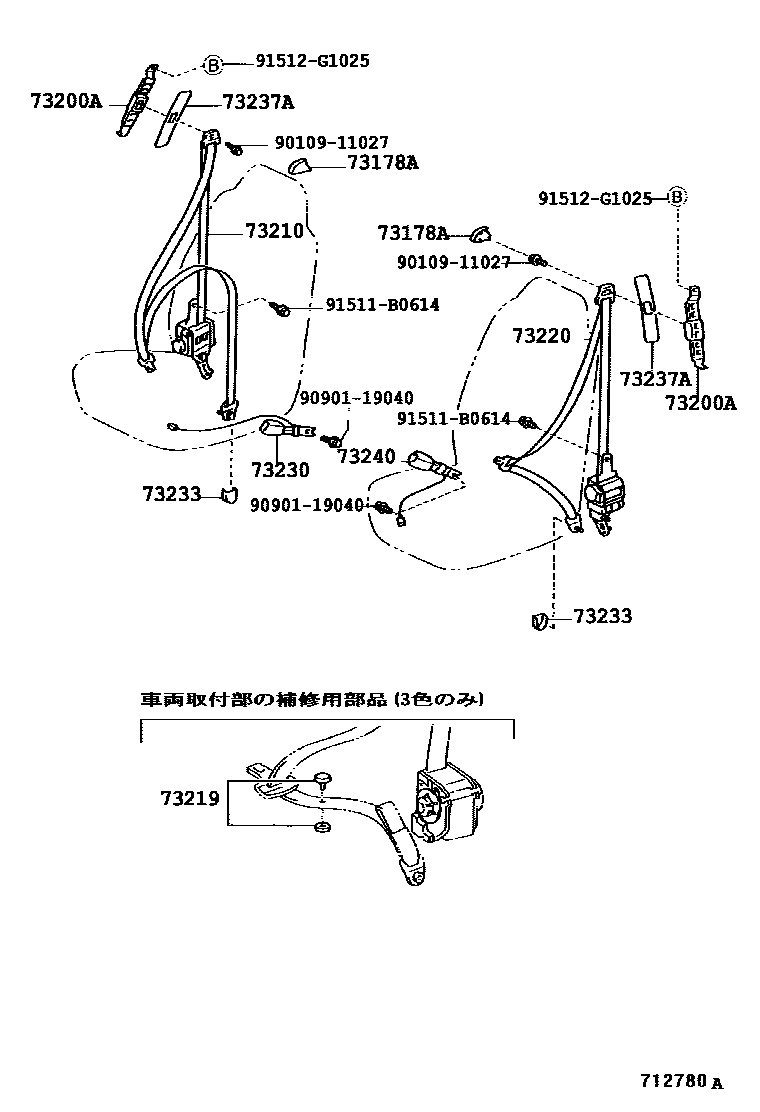

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� �-����� 0002 1�� �-����� 0003 1�� �-�����

73178ACAP, SEAT BELT ANCHOR COVER

main73178-21010-A0×2iGXE10199904-200005

IVORY,TRIM0#

main73178-21010-B0×2iGXE10,SXE10199810-200005

MD.CHARCOAL,TRIM2#

main73178-33020-A1×2iGXE10,SXE10200005-200105

IVORY,TRIM0#

main73178-33020-B1×2iGXE1#,JCE1#,SXE10200105

MD.CHARCOAL,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-33020-A1×2iGXE1#,JCE1#,SXE10200105-200308

IVORY,TRIM0#

main73200-33020-B2×2iGXE10,SXE10199810-200105

MD.CHARCOAL,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73203-53010-A0iGXE10200003-200005

IVORY,TRIM0#

main73203-53010-C0iGXE10,SXE10200003-200005

BLACK,TRIM2#

main73203-53030-A0iGXE10,JCE1#,SXE10200105-200107

IVORY,TRIM0#

main73203-53030-C0iGXE10,JCE1#,SXE10200105-200107

BLACK,TRIM2#

main73203-53060-A0iGXE1#,JCE1#,SXE10200107-200208

IVORY,TRIM0#

main73203-53060-C0iGXE1#,JCE1#,SXE10200107-200208

BLACK,TRIM2#

main73203-53061-A0iGXE1#..ATM200308

IVORY,TRIM0#

main73203-53061-C0iGXE1#,JCE1#,SXE10200208

BLACK,TRIM2#

main73210-53010-A0iGXE10199904-200003

IVORY,TRIM0#

main73210-53010-C1iGXE10,SXE10199810-200003

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iGXE1#,JCE1#,SXE10200105-200308

main73219-33030iGXE1#,JCE1#,SXE10200105-200308

73220BELT ASSY, FRONT SEAT OUTER, LH

main73204-53010-A0iGXE10200003-200005

IVORY,TRIM0#

main73204-53010-C0iGXE10,SXE10200003-200005

BLACK,TRIM2#

main73204-53030-A0iGXE10,JCE1#,SXE10200105-200107

IVORY,TRIM0#

main73204-53030-C0iGXE10,SXE10200005-200105

BLACK,TRIM2#

main73204-53050-A0iGXE1#,JCE1#,SXE10200107-200208

IVORY,TRIM0#

main73204-53050-C0iGXE1#,JCE1#,SXE10200107-200208

BLACK,TRIM2#

main73204-53051-A0iGXE1#,JCE1#..WG;GXE10..SED..ATM200208-200308

IVORY,TRIM0#

main73204-53051-C0iGXE1#,JCE1#,SXE10200208

BLACK,TRIM2#

main73220-53010-A0iGXE10199904-200003

IVORY,TRIM0#

main73220-53010-C1iGXE10,SXE10199810-200003

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53010-C0iGXE10,SXE10199810-200105

BLACK,TRIM2#

main73230-53011-A0iGXE1#,JCE1#,SXE10200105-200208

IVORY,TRIM0#

main73230-53011-C0iGXE1#,JCE1#,SXE10200105-200208

BLACK,TRIM2#

main73230-53020-A0iGXE10,SXE10200005-200105

main73230-53020-C0iGXE10,SXE10199901-200105

main73230-53021-A0iGXE1#,JCE1#,SXE10200105-200208

main73230-53021-C0iGXE1#,JCE1#,SXE10200105-200208

main73230-53071-A0iJCE1#,SXE10;GXE10..SED..MTM200208-200308

IVORY,TRIM0#

main73230-53071-C0iGXE1#,JCE1#,SXE10200208

BLACK,TRIM2#

main73230-53081-A0iGXE1#,JCE1#,SXE10200208-200308

main73230-53081-C0iGXE1#,JCE1#,SXE10200208

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1×2iGXE1#..ATM200308

IVORY,TRIM0#

main73233-33010-C0×2iGXE1#,JCE1#,SXE10200105

BLACK,TRIM2#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-33010-A1×2iGXE1#..ATM200308

IVORY,TRIM0#

main73237-33010-B2×2iGXE1#,SXE10200308

MD.CHARCOAL,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-53030-A0iGXE10200101-200105

IVORY,TRIM0#

main73230-53030-C0iGXE10,SXE10199810-200105

BLACK,TRIM2#

main73230-53031-A0iGXE1#,JCE1#,SXE10200105-200208

IVORY,TRIM0#

main73230-53031-C0iGXE1#,JCE1#,SXE10200105-200208

BLACK,TRIM2#

main73230-53040-A0iGXE10199904-200005

main73230-53040-C0iGXE10199904-200005

main73230-53041-A0iGXE10,JCE10,SXE10200105-200208

main73230-53041-C0iGXE10,JCE10,SXE10200105-200208

main73230-53091-A0iJCE1#,SXE10;GXE10..SED..MTM200208-200308

IVORY,TRIM0#

main73230-53091-C0iGXE1#,JCE1#,SXE10200208

BLACK,TRIM2#

main73230-53101-A0iGXE10,JCE10,SXE10200208-200308

main73230-53101-C0iGXE10,JCE10,SXE10200208

9010911027

main90109-11027

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

13 parts on this diagram · 3 diagrams in section
