FRONT SEAT & SEAT TRACK

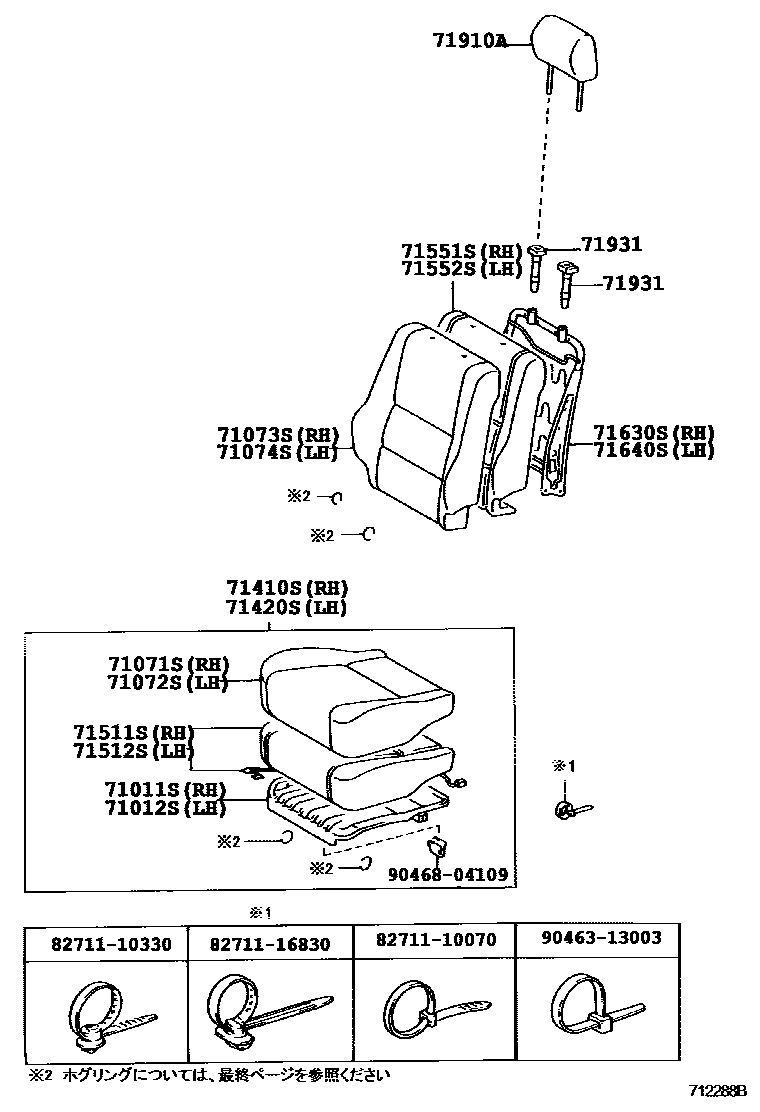

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-53010i199810-200105
main71011-53020i199810-200105
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-53020i199810-200005
main71012-53010i199810-200105
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-53020-A0i200005-200105
main71071-53020-C0i200005-200105
main71071-53020-C1i200005-200105
main71071-53030-C0i199810-200005
main71071-53030-C2i200005-200105
main71071-53040-C0i199810-200005
main71071-53040-C1i200005-200105
main71071-53050-A0i199904-200005
main71071-53050-C0i199901-200005
main71071-53110-A1i200105-200208
main71071-53110-C0i200105-200208
main71071-53111-A1i200208-200308
main71071-53111-C0i200208-200308
main71071-53130-A0i200101-200105
main71071-53140-B0i200105-200106
I EDITION *(I),BLACK,TRIM2#
main71071-53150-A0i200105-200308
main71071-53150-C0i200105
main71071-53210-A0i200105-200208
main71071-53210-C0i200105-200208
main71071-53211-A0i200208
main71071-53211-C0i200208
main71071-53250-A0i200208
main71071-53250-C0i200208
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-53010-C0i199810-200005
main71072-53010-C2i200005-200105
main71072-53020-C0i199810-200005
main71072-53020-C1i200005-200105
main71072-53030-C0i199901-200005
main71072-53080-A0i199904-200005
main71072-53080-C0i199904-200005
main71072-53090-A1i200005-200105
main71072-53090-C0i199905-200005
L EDITION *(L),BLACK,TRIM20
main71072-53090-C1i200005-200105
main71072-53100-A1i200105-200208
main71072-53100-C0i200105-200208
main71072-53101-A1i200208-200308
main71072-53101-C0i200208-200308
main71072-53120-B0i200105-200106
I EDITION *(I),BLACK,TRIM2#
main71072-53150-A0i200105-200308
main71072-53150-C0i200105
main71072-53160-A0i200106-200308
main71072-53160-C0i200106
main71072-53170-A0i200106-200208
main71072-53170-C0i200106-200208
main71072-53171-A0i200208-200308
main71072-53171-C0i200208-200308
main71072-53190-A0i200105-200208
main71072-53190-C0i200105-200208
main71072-53191-A0i200308
main71072-53191-C0i200208
main71072-53210-A0i200106-200208
main71072-53210-C0i200106-200208
main71072-53211-A0i200208-200308
main71072-53211-C0i200208-200308
main71072-53230-A0i200106-200208
main71072-53230-C0i200106-200208
main71072-53231-C0i200208
main71072-53240-A0i200106-200208
main71072-53240-C0i200106-200208
main71072-53241-A0i200208-200308
main71072-53241-C0i200208
main71072-53250-A0i200101-200105
main71072-53260-A0i200208
main71072-53260-C0i200208
main71072-53270-A0i200208
main71072-53270-C0i200208
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-53020-A1i200005-200105
main71073-53020-C0i199905-200005
L EDITION *(L),BLACK,TRIM20
main71073-53020-C1i200005-200105
main71073-53030-C0i199810-200005
main71073-53030-C1i200005-200105
main71073-53040-C0i199810-200005
main71073-53040-C2i200005-200105
main71073-53050-C0i199810-200005
main71073-53050-C1i200005-200105
main71073-53060-C0i199810-200005
main71073-53060-C2i200005-200105
main71073-53070-C0i199901-200005
main71073-53080-A0i199904-200005
main71073-53080-C0i199901-200005
main71073-53100-A1i200105-200308
main71073-53100-C0i200105-200308
main71073-53120-C0i200105-200106
I EDITION *(I),BLACK,TRIM2#
main71073-53130-C0i200008-200105
main71073-53140-A0i200105-200308
main71073-53140-C0i200105-200308
main71073-53150-A0i200105
main71073-53150-C0i200105
main71073-53210-A0i200105-200308
main71073-53210-C0i200105-200308
main71073-53211-C1i200308
main71073-53250-A0i200101-200105
main71073-53260-A0i200101-200105
main71073-53270-A0i200208
main71073-53270-C0i200208
main71073-53280-A0i200208
main71073-53280-C0i200208
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-53030-C0i199810-200005
main71073-53030-C1i200005-200105
main71073-53050-C0i199810-200005
main71073-53050-C1i200005-200105
main71073-53070-C0i199901-200005
main71073-53120-C0i200008-200105
I EDITION *(I),BLACK,TRIM2#
main71073-53140-A0i200105-200308
main71073-53140-C0i200105
main71073-53250-A0i200101-200105
main71073-53270-A0i200208
main71073-53270-C0i200208
main71074-53010-C0i199810-200005
main71074-53010-C2i200005-200105
main71074-53020-C0i199810-200005
main71074-53020-C2i200005-200105
main71074-53030-A0i199904-200005
main71074-53030-C0i199901-200005
main71074-53050-A2i200005-200105
main71074-53050-C0i199905-200005
L EDITION *(L),BLACK,TRIM20
main71074-53050-C1i200005-200105
main71074-53070-A1i200105-200308
main71074-53070-C0i200105-200308
main71074-53090-C0i200105-200106
main71074-53100-A0i200105
main71074-53100-C0i200105
main71074-53120-A0i200106
main71074-53120-C0i200106
main71074-53130-A0i200106-200308
main71074-53130-C0i200106-200308
main71074-53150-A0i200105-200308
main71074-53150-C0i200105-200308
main71074-53151-C1i200308
main71074-53180-C0i200106
main71074-53190-A0i200106-200308
main71074-53190-C0i200106-200308
main71074-53200-A0i200101-200105
main71074-53210-A0i200208
main71074-53210-C0i200208
main71074-53220-A0i200208
main71074-53220-C0i200208
main71074-53230-A0i200208
main71074-53230-C0i200208
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-53010-C0i199810-200105
main71410-53020-C0i199810-200105
main71410-53030-A0i199904-200005
main71410-53030-C0i199901-200005
main71410-53090-A0i200005-200105
main71410-53090-C0i199905-200005
main71410-53180-B0i200008-200105
main71410-53370-A0i200101-200105
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-53010-C0i199810-200105
main71420-53020-C0i199810-200105
main71420-53030-C0i199901-200005
main71420-53090-A0i199904-200005
main71420-53090-C0i199904-200005
main71420-53100-A0i200005-200105
main71420-53100-C0i199905-200005
main71420-53150-B0i200008-200105
main71420-53360-A0i200101-200105
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-53010i199810-200105
main71511-53020i200106
main71511-53030i200105-200208
main71511-53031i200208-200308
main71511-53060i200105-200208
main71511-53061i200208
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-53010i200208
main71052-53020i200105
main71052-53030i200105-200208
main71052-53032i200208-200308
main71052-53050i200106
main71052-53060i200106-200208
main71052-53061i200208-200308
main71052-53070i200106-200208
main71052-53071i200208
main71052-53080i200105-200208
main71052-53082i200208
main71052-53090i200208
main71052-53100i200208
main71052-53110i200208-200308
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-53010i199810-200105
main71551-53030i200106-200308
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-53010i199810-200105
main71551-53030i200105
main71552-53040i200106
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-53010i199810-200105
main71630-53040i200408
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-53010i199810-200105
main71630-53030i200106
main71630-53040i200408
71910AHEADREST ASSY, FRONT SEAT
main71910-53010-C0×2i199810-200105
main71910-53020-A0×2i199904-200005
main71910-53020-C0×2i199901-200105
main71910-53030-A1×2i200105
main71910-53030-C0×2i199810-200105
main71910-53040-A2×2i200105
main71910-53040-C0×2i200105
main71910-53050-C0i200008-200105
I EDITION *(I),BLACK,TRIM2#
main71910-53060-A0×2i200101-200105
main71910-53070-A0×2i200208
main71910-53070-C0×2i200208
71931SUPPORT, FRONT SEAT HEADREST
main71930-28040-A1×2i199904-200005
main71930-28040-C0×2i199810-200005
main71930-47010-A0i200106
main71930-47010-C0i200106
main71931-28050-A1×2i199904-200005
main71931-28050-C0×2i199810-200005
main71931-47010-A0i200106
main71931-47010-C0i200106
main71932-60020-A0i200106
main71932-60020-C0i200106
main71970-60290-A0×2i200105
main71970-60290-C0×2i200105
8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10070
8271110330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-10330
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
9046313003
main90463-13003
9046804109
main90468-04109

21 parts on this diagram · 10 diagrams in section
