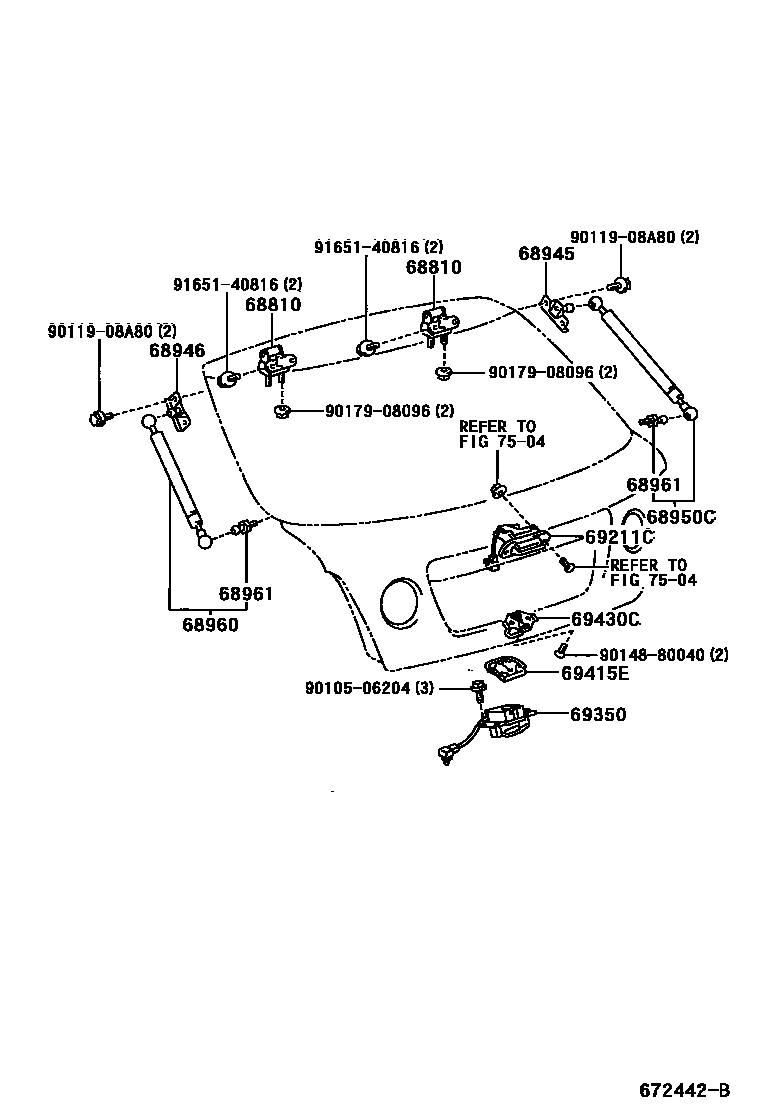

BACK DOOR LOCK & HANDLE
68810HINGE ASSY, BACK DOOR, UPPER
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69415ECOVER, BACK DOOR LOCK STRIKER
IVORY,TRIM0#
BLACK,TRIM2#
69430CSTRIKER ASSY, BACK DOOR LOCK
7504
9010506204
main90105-06204
9011908A80
main90119-08A80
9014880040
main90148-80040
9017908096
main90179-08096
9165140816
main91651-40816
16 parts on this diagram · 1 diagram in section
