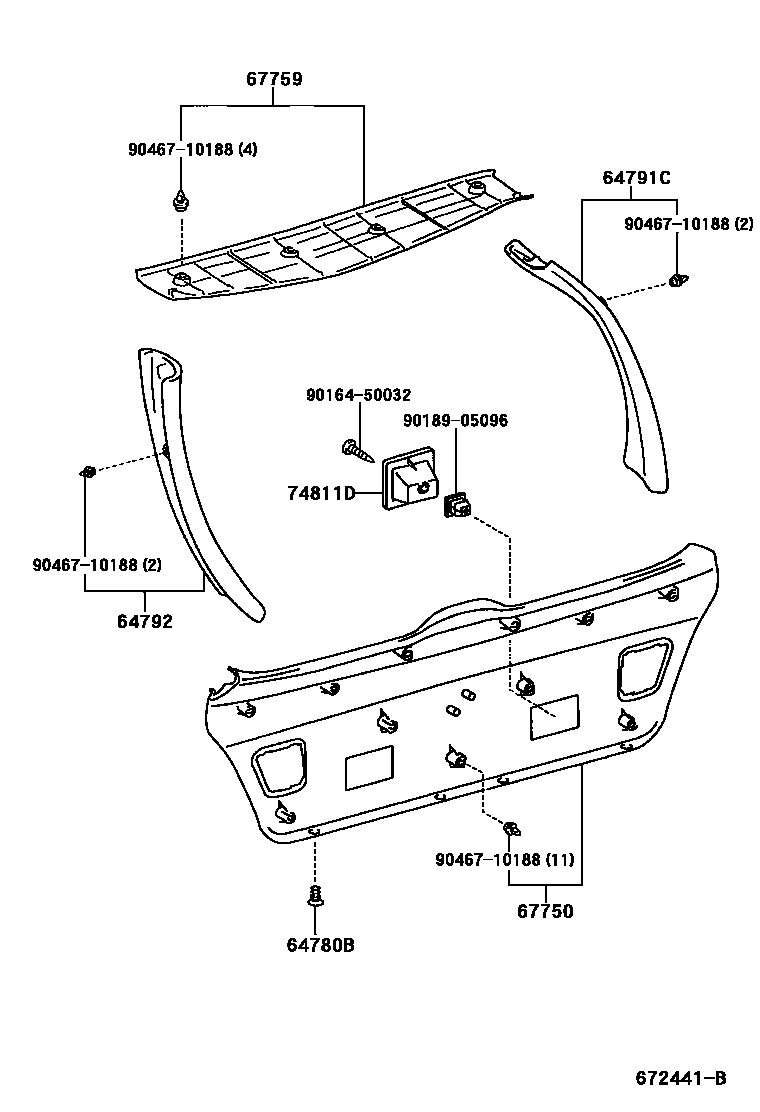

BACK DOOR PANEL & GLASS

0001 1 0002 1

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-07090-A0iGXE1#,JCE1#..WG200106-200308

IVORY,TRIM0#

sub90467-07090

sub90467-07207

main90467-07090-C4iGXE1#,JCE1#..WG200106

BLACK,TRIM2#

sub90467-07090

sub90467-07207

64791CCOVER, BACK DOOR TRIM, RH

main64791-53010-A0iGXE1#..WG200106-200308

IVORY,TRIM0#

main64791-53010-B0iGXE1#,JCE1#..WG200106

MD.CHARCOAL,TRIM2#

64792COVER, BACK DOOR TRIM, LH

main64792-53010-A0iGXE1#,JCE1#..WG200106-200308

IVORY,TRIM0#

main64792-53010-B0iGXE1#,JCE1#..WG200106

MD.CHARCOAL,TRIM2#

67750BOARD ASSY, BACK DOOR TRIM

main67750-53010-A0iGXE1#,JCE1#..WG200106-200308

IVORY,TRIM0#

main67750-53010-C0iGXE1#,JCE1#..WG200106

BLACK,TRIM2#

67759BOARD, BACK DOOR TRIM, UPPER

main67759-53010-A0iGXE1#..WG200106-200308

IVORY,TRIM0#

sub67759-53010

main67759-53010-B0iGXE1#,JCE1#..WG200106

MD.CHARCOAL,TRIM2#

sub67759-53010

74811DHANDLE, DOOR PULL

main74811-53010-A0iGXE1#,JCE1#..WG200106-200308

IVORY,TRIM0#

sub74811-53010

main74811-53010-C0iGXE1#,JCE1#..WG200106

BLACK,TRIM2#

sub74811-53010

9016450032

main90164-50032

9018905096

main90189-05096

9046710188

main90467-10188

9 parts on this diagram · 2 diagrams in section
