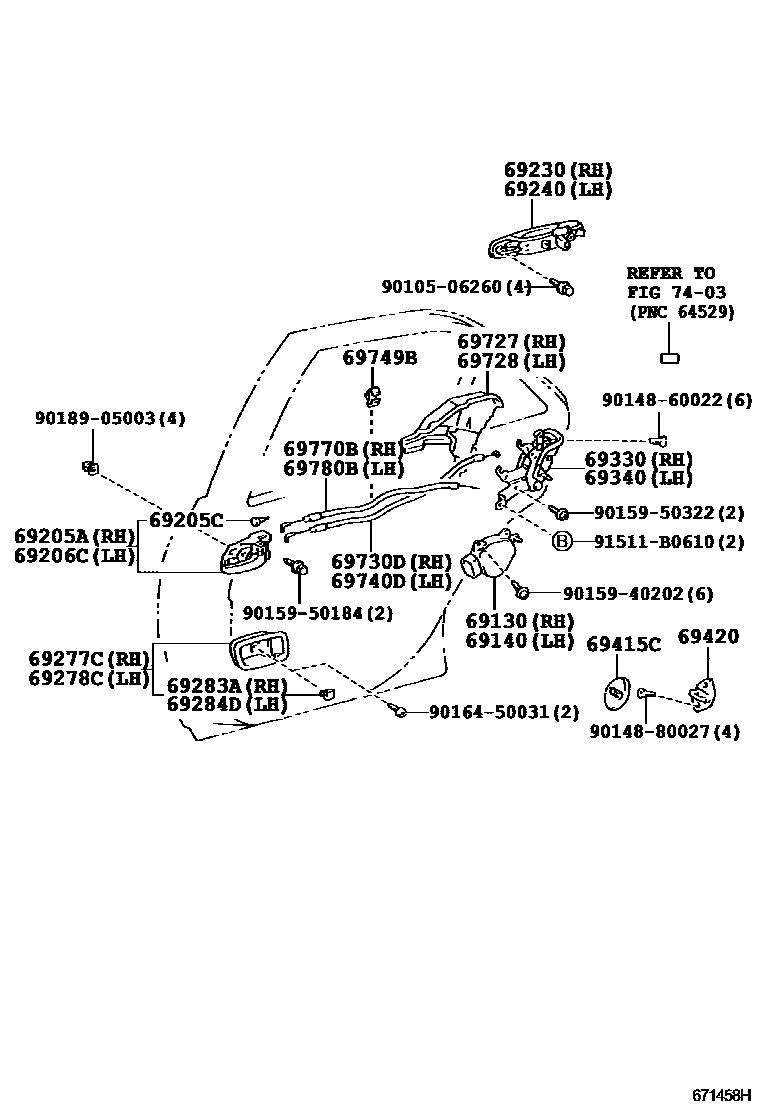

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
BLACK,TRIM2#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SU.WHITE PM,051
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
RED M.M.,3N3
SUPER BRIGHT YELLOW,576
DK. GREEN MC.,6Q7
BLUE MC.,8M6
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
SUPER RED 5,3P0
BEIGE ME.,4R4
SUPER BRIGHT YELLOW,576
GOLD ME.,585
DARK GREEN MC.,6R4
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SU.WHITE PM,051
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
RED M.M.,3N3
SUPER BRIGHT YELLOW,576
DK. GREEN MC.,6Q7
BLUE MC.,8M6
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
SUPER RED 5,3P0
BEIGE ME.,4R4
SUPER BRIGHT YELLOW,576
GOLD ME.,585
DARK GREEN MC.,6R4
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
I EDITION *(I),BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
I EDITION *(I),BLACK,TRIM2#
IVORY,TRIM0#
BLACK,TRIM2#
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
IVORY,TRIM0#
BLACK,TRIM2#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
IVORY,TRIM0#
BLACK,TRIM2#
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69415CCOVER, DOOR LOCK STRIKER, REAR
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69749BCLAMP, REAR DOOR LOCK LINK
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9010506260
main90105-06260
9014860022
main90148-60022
9014880027
main90148-80027
9015940202
main90159-40202
9015950184
main90159-50184
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
91511B0610
main91511-B0610
32 parts on this diagram · 1 diagram in section
