INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

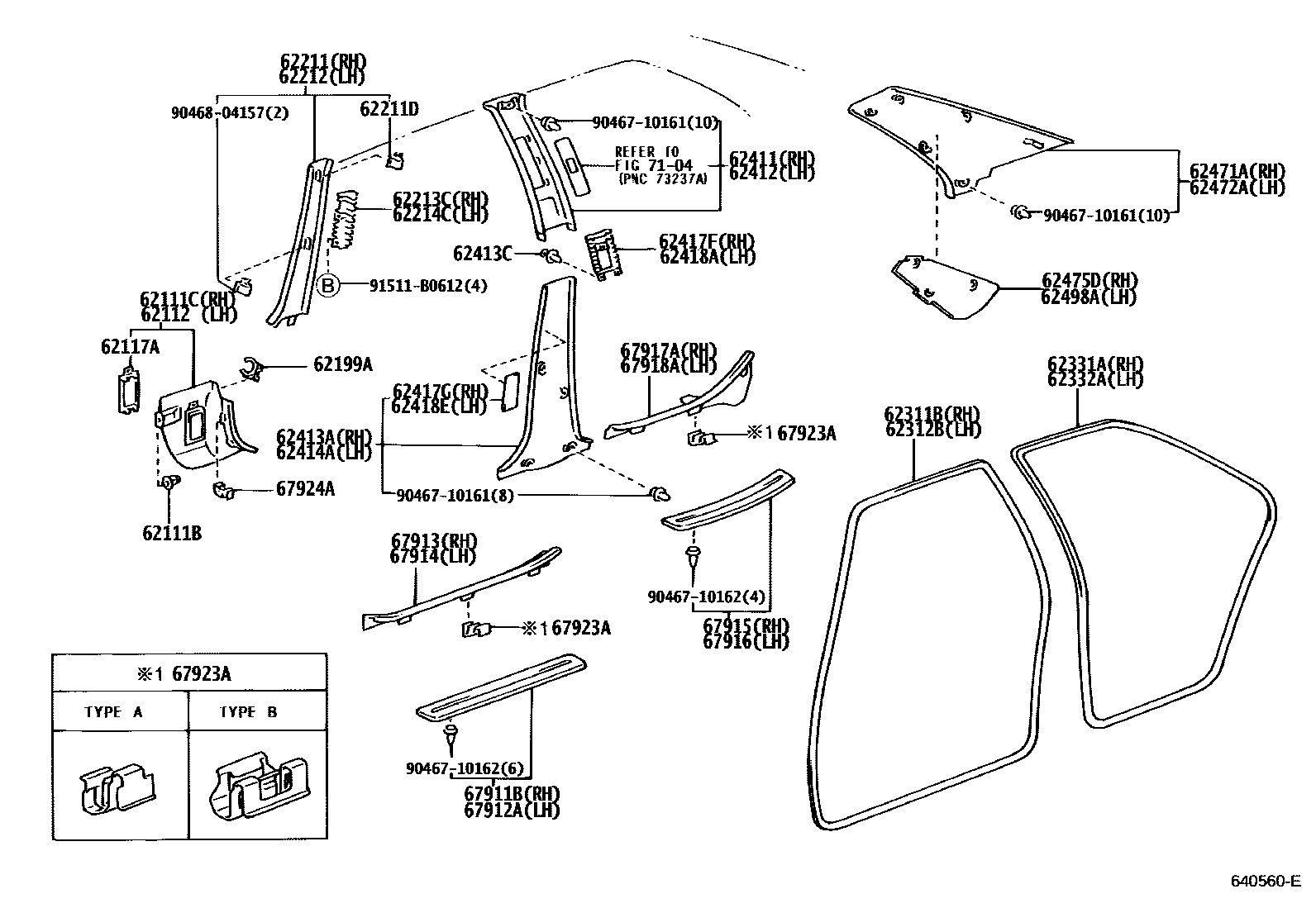

Parts diagram
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06158-A0×2i200005-200105
IVORY,TRIM0#
main90467-06158-C0×2i199810-200105
BLACK,TRIM2#
62111CBOARD, COWL SIDE TRIM, RH
main62111-53010-A0i199904-200005
IVORY,TRIM0#
main62111-53010-C0i199810-200105
BLACK,TRIM2#
main62111-53030-A0i200105-200308
IVORY,TRIM0#
main62111-53030-C0i200105
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-53010-A0i199904-200005
IVORY,TRIM0#
main62112-53010-C0i200105
BLACK,TRIM2#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-53010-A0i199904-200005
main62117-53010-C0i199810-200105
main62117-53020-A0i200308
main62117-53020-C0i199810-200105
main62117-53050-A0i200105-200308
main62117-53050-C0i200105
62199AHOLDER, FUSEE
main90468-25003×2i199810-200105
62211GARNISH, FRONT PILLAR, RH
main62211-53010-A1i200308
IVORY,TRIM0#
main62211-53010-B0i199810-199904
MD.CHARCOAL,TRIM2#
main62211-53020-B0i199810-199811
main62211-53021-A0i200005-200105
main62211-53021-B0i200105-200106
I EDITION *(I),MEDIUM CHARCOAL,TRIM2#
main62211-53022-A0i200112-200308
main62211-53022-B0i200112-200308
main62211-53030-A0i200105-200212
main62211-53030-B0i200105-200212
main62211-53031-A0i200212-200308
main62211-53031-B0i200212
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
main90467-09204×2i199810-200105
62212GARNISH, FRONT PILLAR, LH
main62212-53010-A1i200101-200105
IVORY,TRIM0#
main62212-53010-B0i199904-200005
MD.CHARCOAL,TRIM0#,2#; MD.CHARCOAL,TRIM2#
main62212-53020-B0i199810-199811
main62212-53021-A0i200005-200105
main62212-53021-B0i200105
main62212-53022-A0i200112-200308
main62212-53022-B0i200112-200308
main62212-53030-A0i200105-200212
main62212-53030-B0i200105-200212
main62212-53031-A0i200212-200308
main62212-53031-B0i200212
62213CPAD, FRONT PILLAR GARNISH, RH
main62213-53010i200308
62214CPAD, FRONT PILLAR GARNISH, LH
main62214-53010i199810-200105
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-53010-A1i200101-200105
IVORY,TRIM0#
main62311-53010-C0i199904-200005
BLACK,TRIM0#,2#; BLACK,TRIM2#
main62311-53020-A0i200005-200105
main62311-53020-C0i199905-200005
L EDITION *(L),BLACK,TRIM20
main62311-53021-C0i200307
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-53010-A1i200308
IVORY,TRIM0#
main62312-53010-C0i199904-200005
BLACK,TRIM0#,2#; BLACK,TRIM2#
main62312-53020-A0i200105-200307
main62312-53020-C0i200105-200307
main62312-53021-C0i200307
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-53010-A1i200105-200308
IVORY,TRIM0#
main62331-53010-C0i199904-200005
BLACK,TRIM0#,2#; BLACK,TRIM2#
main62331-53020-A0i200005-200105
main62331-53020-C0i200105-200307
main62331-53021-C0i200307
main62331-53030-A0i200308
IVORY,TRIM0#
main62331-53030-C0i200106
BLACK,TRIM2#
main62331-53040-A0i200106-200307
main62331-53040-C0i200106-200307
main62331-53041-C0i200307
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-53010-A1i200105-200308
IVORY,TRIM0#
main62332-53010-C0i199904-200005
BLACK,TRIM0#,2#; BLACK,TRIM2#
main62332-53020-A0i200105-200307
main62332-53020-C0i200105-200307
main62332-53021-C0i200307
main62332-53030-A0i200308
IVORY,TRIM0#
main62332-53030-C0i200106
BLACK,TRIM2#
main62332-53040-A0i200106-200307
main62332-53040-C0i200106-200307
main62332-53041-C0i200307
62411GARNISH, CENTER PILLAR, RH
main62411-53010-A1i200101-200105
IVORY,TRIM0#
main62411-53010-B0i199904-200005
MD.CHARCOAL,TRIM0#,2#; MD.CHARCOAL,TRIM2#
main62411-53020-A0i200005-200105
main62411-53020-B0i199905-200005
L EDITION *(L),MEDIUM CHARCOAL,TRIM20
main62411-53030-A0i200105-200201
IVORY,TRIM0#
main62411-53030-B0i200105-200201
MD.CHARCOAL,TRIM2#
main62411-53031-A0i200308
IVORY,TRIM0#
main62411-53031-B0i200201-200308
MD.CHARCOAL,TRIM2#
main62411-53040-A0i200105-200201
main62411-53040-B0i200105-200201
main62411-53041-A0i200201-200208
main62411-53041-B0i200201-200208
main62411-53051-A0i200208-200308
main62411-53051-B0i200208
62412GARNISH, CENTER PILLAR, LH
main62412-53010-A1i200101-200105
IVORY,TRIM0#
main62412-53010-B0i199810-199904
MD.CHARCOAL,TRIM2#
main62412-53020-A0i199904-200105
main62412-53020-B0i199905-200005
L EDITION *(L),MEDIUM CHARCOAL,TRIM20
main62412-53030-A0i200105-200201
IVORY,TRIM0#
main62412-53030-B0i200105-200201
MD.CHARCOAL,TRIM2#
main62412-53031-A0i200201-200308
IVORY,TRIM0#
main62412-53031-B0i200308
MD.CHARCOAL,TRIM2#
main62412-53040-A0i200105-200201
main62412-53040-B0i200105-200201
main62412-53041-A0i200201-200208
main62412-53041-B0i200201-200208
main62412-53051-A0i200308
main62412-53051-B0i200208
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-53010-A0i200105-200308
IVORY,TRIM0#
main62413-53010-C0i200105-200308
BLACK,TRIM2#
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-07059-22×6i199810-200005
BLACK,TRIM2#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-53010-A0i200005-200105
IVORY,TRIM0#
main62414-53010-C0i200105-200308
BLACK,TRIM2#
62417FPAD, CENTER PILLAR GARNISH, RH
main62417-53010i199810-200105
62417GPAD, CENTER PILLAR GARNISH, LOWER RH
main62417-53020i199810-200105
main62417-53030i200208-200308
62418APAD, CENTER PILLAR GARNISH, LH
main62418-53010i199810-200105
62418EPAD, CENTER PILLAR GARNISH, LOWER LH
main62418-53020i199810-200105
main62418-53030i200208-200308
62471AGARNISH, ROOF SIDE, INNER RH
main62470-53050-A0i200106-200212
IVORY,TRIM0#
main62470-53050-B0i200106-200212
MD.CHARCOAL,TRIM2#
main62470-53051-A0i200308
IVORY,TRIM0#
main62470-53051-B0i200212
MD.CHARCOAL,TRIM20
main62470-53060-A0i200106-200201
main62470-53060-B0i200106-200201
main62470-53061-A0i200201-200212
main62470-53061-B0i200201-200212
main62470-53062-A0i200212-200308
main62470-53062-B0i200212-200308
main62470-53070-A0i200106-200212
main62470-53070-B0i200106-200212
main62470-53071-A0i200212-200308
main62470-53071-B0i200212
main62470-53080-A0i200106-200201
main62470-53080-B0i200106-200201
main62470-53081-A0i200201-200212
main62470-53081-B0i200201-200212
main62470-53082-A0i200212-200308
main62470-53082-B0i200212
main62471-53010-A1i200308
IVORY,TRIM0#
main62471-53010-B0i199904-200005
MD.CHARCOAL,TRIM0#,2#; MD.CHARCOAL,TRIM2#
main62471-53020-A0i199904-200005
main62471-53020-B0i199905-200005
main62471-53021-A0i200308
main62471-53021-B0i200201
62472AGARNISH, ROOF SIDE, INNER LH
main62472-53010-A1i200308
IVORY,TRIM0#
main62472-53010-B0i199904-200005
MD.CHARCOAL,TRIM0#,2#; MD.CHARCOAL,TRIM2#
main62472-53020-A0i200105-200201
main62472-53020-B0i200005-200105
main62472-53021-A0i200201-200308
main62472-53021-B0i200201
main62480-53050-A0i200106-200212
IVORY,TRIM0#
main62480-53050-B0i200106-200212
MD.CHARCOAL,TRIM2#
main62480-53051-A0i200212-200308
IVORY,TRIM0#
main62480-53051-B0i200212
MD.CHARCOAL,TRIM20
main62480-53060-A0i200106-200201
main62480-53060-B0i200106-200201
main62480-53061-A0i200201-200212
main62480-53061-B0i200201-200212
main62480-53062-A0i200212-200308
main62480-53062-B0i200212-200308
main62480-53070-A0i200106-200212
main62480-53070-B0i200106-200212
main62480-53071-A0i200212-200308
main62480-53071-B0i200212-200308
main62480-53080-A0i200106-200201
main62480-53080-B0i200106-200201
main62480-53081-A0i200201-200212
main62480-53081-B0i200201-200212
main62480-53082-A0i200212-200308
main62480-53082-B0i200212
62475DPAD, ROOF SIDE INNER GARNISH, RH
main62475-53010i199810-200105
main62475-53020i199810-200005
main62498-53040i200106
main62498-53050i200308
62498APAD, ROOF SIDE INNER GARNISH, LH
main62475-53010i200105
main62498-53010i199905-200005
L EDITION *(L)
main62498-53040i200106
main62498-53050i200308
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67910-53010-C0i200308
main67911-53010-C0i200105-200208
BLACK,TRIM0#,2#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67910-53010-C0i199904-200005
main67911-53010-C0i200005-200105
BLACK,TRIM0#,2#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-53010-A0i200005-200105
IVORY,TRIM0#
main67913-53010-C0i200105
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-53010-A0i199904-200005
IVORY,TRIM0#
main67914-53010-C0i199810-200105
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-53010-C0i200208-200308
BLACK,TRIM0#,2#
main67930-53010-C0i200105-200308
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67916-53010-C0i200308
BLACK,TRIM0#,2#; BLACK,TRIM2#
main67940-53010-C0i200308
67917APLATE, REAR DOOR SCUFF, RH
main67917-53010-A0i199904-200005
IVORY,TRIM0#
main67917-53010-C0i200105
BLACK,TRIM2#
67918APLATE, REAR DOOR SCUFF, LH
main67918-53010-A0i200105-200308
IVORY,TRIM0#
main67918-53010-C0i200105
BLACK,TRIM2#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-30030×4i200308
main67923-53010×8i200308
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-46010×4i199810-200105
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
9046710161
main90467-10161
9046710162
main90467-10162
9046804157
main90468-04157
91511B0612
main91511-B0612

42 parts on this diagram · 3 diagrams in section
