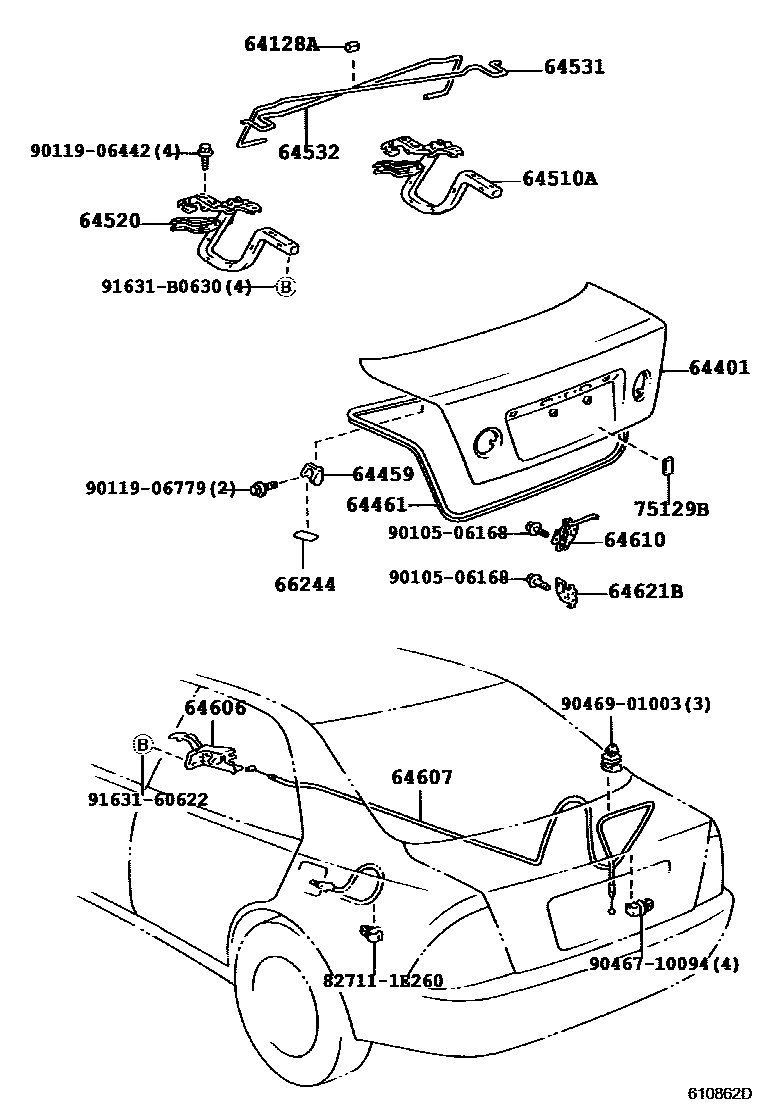

LUGGAGE COMPARTMENT DOOR & LOCK
64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
66244PROTECTOR, REAR BODY, NO.2
75129BCUSHION, REAR LICENCE PLATE
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
9010506168
main90105-06168
9011906442
main90119-06442
9011906779
main90119-06779
9046710094
main90467-10094
9046901003
main90469-01003
9163160622
main91631-60622
91631B0630
main91631-B0630
22 parts on this diagram · 1 diagram in section
