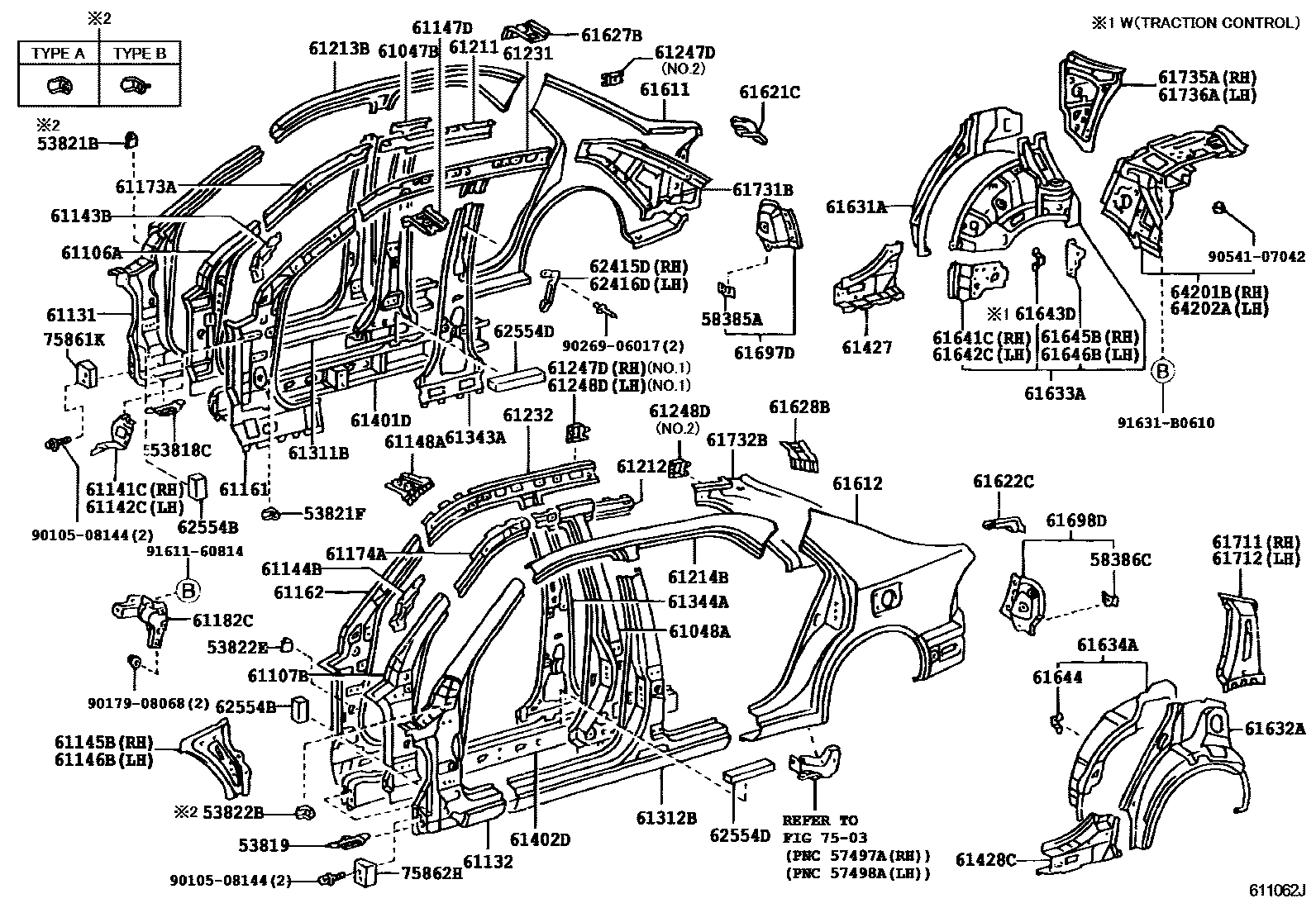

SIDE MEMBER
53818CREINFORCEMENT, FRONT FENDER, REAR RH
53819REINFORCEMENT, FRONT FENDER, REAR LH
53821BBRACKET, FRONT FENDER, REAR RH
53821FBRACKET, FRONT FENDER, REAR NO.2 RH
53822BBRACKET, FRONT FENDER, REAR LH
53822EBRACKET, FRONT FENDER, REAR NO.2 LH
58385ABRACKET, REAR BUMPER COVER
58386CBRACKET, REAR BUMPER COVER, LH
61047BREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
61048AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
61143BGUSSET, FRONT BODY PILLAR, UPPER INNER RH
61144BGUSSET, FRONT BODY PILLAR, UPPER INNER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61147DEXTENSION, FRONT BODY PILLAR, UPPER OUTER RH
61148AEXTENSION, FRONT BODY PILLAR, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61182CBRACKET, INSTRUMENT SIDE, LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61247DBRACKET, ASSIST GRIP, RH
61248DBRACKET, ASSIST GRIP, LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH
61402DRAIL SUB-ASSY, NO.1 LOWER OUTER, LH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61428CREINFORCEMENT, ROCKER PANEL, NO.5 LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61627BEXTENSION, QUARTER PANEL, UPPER REAR RH
61628BEXTENSION, QUARTER PANEL, UPPER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
62415DPANEL, CENTER PILLAR GARNISH, RH
62416DPANEL, CENTER PILLAR GARNISH, LH
62554BPAD, PILLAR, NO.4
62554DPAD, FRONT PILLER
64201BSTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, RH
64202ASTRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH
7503SIDE MOULDING
75861KPROTECTOR, ROCKER PANEL MOULDING, RH
75862HPROTECTOR, ROCKER PANEL MOULDING, LH
9010508144
main90105-08144
9017908068
main90179-08068
9026906017
main90269-06017
9054107042
main90541-07042
9161160814
main91611-60814
91631B0610
main91631-B0610
82 parts on this diagram · 4 diagrams in section
