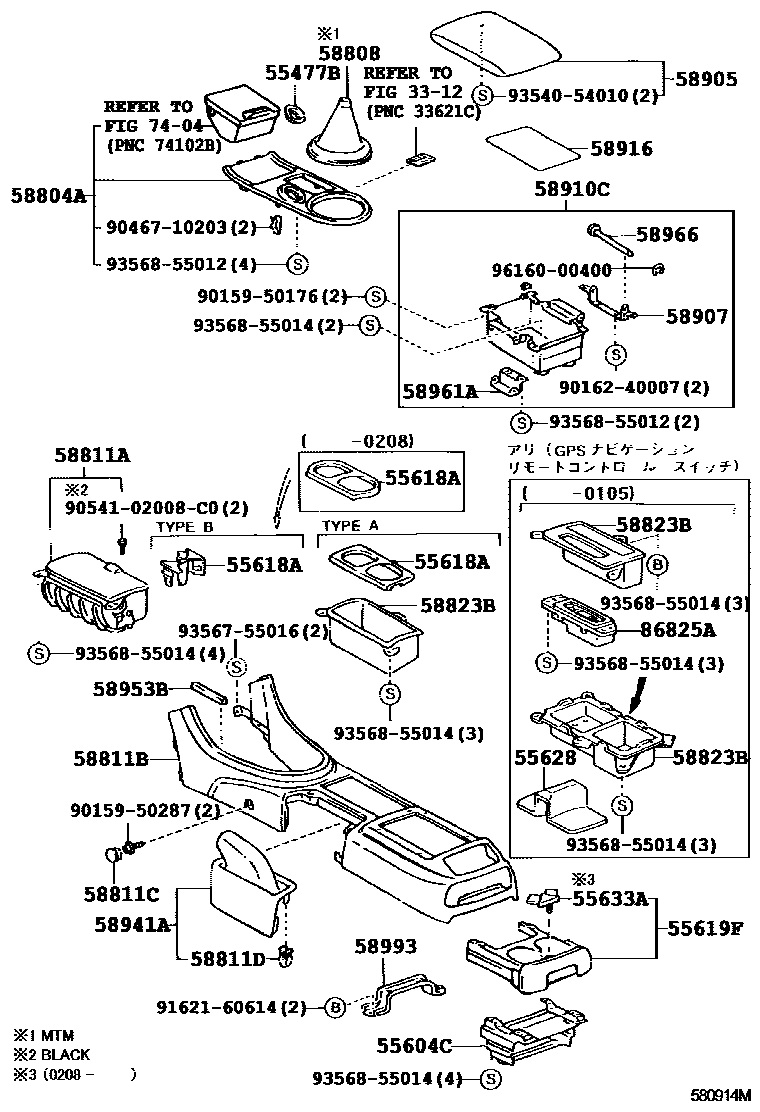

CONSOLE BOX & BRACKET

0001 1 0002 1��(���� �-����) 0003 1 0004 1

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

55477BBEZEL, CIGARETTE LIGHTER HOLE

main55477-20110iGXE1#,JCE1#,SXE10200308

55604CHOLDER SUB-ASSY, CONSOLE BOX CUP

main55604-53010iGXE10,SXE10199810-199811

main55604-53011iGXE10,SXE10199811-200105

main55604-53030iGXE10,JCE1#,SXE10..ATM200105-200201

main55604-53031iGXE10,SXE10..MTM200308

55618AHOLDER, CONSOLE BOX CUP

main55618-53010iGXE10,SXE10199810-200105

main55618-53020iGXE10..ATM;GXE15,SXE10;GXE10..SED..MTM200105

main55618-53040iGXE10..WG..MTM200208-200308

main55618-53041iGXE1#,JCE1#,SXE10200410

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-53010-C0iGXE10,SXE10199810-199811

BLACK,TRIM2#

main55619-53011-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main55619-53020-C0iGXE10,JCE1#,SXE10..ATM200105-200201

main55619-53021-C0iGXE1#..ATM; GXE10,SXE10..MTM; JCE1#,SXE10..ATM200308

55628KNOB, CONSOLE BOX CUP HOLDER

main55628-53010iGXE10,SXE10199810-200105

55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1

main55633-53020-C0iGXE1#..ATM; GXE10..MTM;JCE1#,SXE10200308

BLACK,TRIM0#,2#; BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-53010-C0iSXE10..MTM199810-199901

BLACK,TRIM2#

main58804-53011-C0iGXE10,SXE10..MTM200308

BLACK,TRIM2#

main58804-53020-C0iGXE10,SXE10..ATM199810-199901

BLACK,TRIM2#

main58804-53021-C0iGXE1#..ATM; JCE1#,SXE10..ATM200308

BLACK,TRIM0#,2#; BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-53010-C0iGXE10,SXE10..MTM200308

BLACK,TRIM2#

58811ABOX, CONSOLE, FRONT

main58802-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

58811BBOX, CONSOLE

main58811-53010-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

main58811-53010-C1iGXE10,SXE10200005-200101

BLACK/GRAY,TRIM2#

main58811-53010-C2iGXE10,SXE10200005-200101

BLACK/BLACK,TRIM0#,2#

main58811-53011-C1iGXE10,SXE10200101-200105

BLACK/GARY,TRIM2#

main58811-53011-C2iGXE10,SXE10200101-200105

BLACK/BLACK,TRIM0#,2#

main58811-53030-C0iGXE15; JCE15200308

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58811-53040-C0iGXE10,JCE10,SXE10200105-200308

BLACK,TRIM0#,2#

58811CCAP(FOR CONSOLE)

main90339-10002-C0×2iGXE10,SXE10200011-200105

BLACK,TRIM0#,2#

58811DCLIP(FOR CONSOLE BOX)

main90467-10203×2iGXE1#,JCE1#,SXE10200105-200308

58823BBOX, CONSOLE COMPARTMENT

main58823-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58823-53030iGXE10,SXE10199810-200105

main58823-53040-C0iGXE1#,JCE1#,SXE10200105-200308

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-53010-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

main58905-53040-A0iGXE1#,JCE1#,SXE10..ATM200105-200308

main58905-53040-C0iGXE1#,JCE1#,SXE10..ATM200105

main58905-53050-A0iGXE1#,JCE1#,SXE10..ATM200105-200308

main58905-53050-C0iGXE1#,JCE1#,SXE10..ATM200105

main58905-53060-A0iGXE1#..ATM200208

main58905-53060-C0iGXE1#..ATM200208

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-53010iGXE10,SXE10199810-200105

58910CBOX ASSY, CONSOLE, REAR

main58911-53010iGXE10,SXE10199810-200105

main58911-53010-C0iGXE10,SXE10200308

BLACK,TRIM2#

main58911-53030iGXE10,SXE10199810-200105

main58911-53030-C0iGXE10,JCE10,SXE10200105-200308

main58911-53060-C0iGXE1#,JCE1#,SXE10..ATM200105-200208

main58911-53100-C0iGXE1#..ATM; JCE1#,SXE10..ATM200308

58916MAT, BOX BOTTOM

main58916-53010iGXE10,JCE10,SXE10200105-200308

main58916-53020iGXE1#,JCE1#,SXE10..ATM200105

58941ACOVER, PARKING BRAKE HOLE

main58809-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58809-53011-C0iGXE10..ATM; GXE10..MTM;JCE10,SXE10200308

BLACK,TRIM0#,2#; BLACK,TRIM2#

main58809-53030-C0iGXE10199904-200005

main58809-53040-C0iGXE15; JCE15200308

BLACK,TRIM0#,2#; BLACK,TRIM2#

58953BPACKING, BOX PANEL

main58953-53010iGXE10,SXE10199810-200105

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-53010iGXE10,SXE10199810-200105

58966SHAFT, BOX DOOR HINGE

main58966-53010iGXE10,SXE10199810-200105

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58908-53030iGXE1#,JCE1#,SXE10..ATM200105

main58993-53010iGXE10,SXE10199810-200105

7404ASH RECEPTACLE

→ Go to FIG 74-04

86825AHOLDER, NAVIGATION CONTROLLER

main86825-53010iGXE10,SXE10199810-200105

9015950176

main90159-50176

9015950287

main90159-50287

9016240007

main90162-40007

9046710203

main90467-10203

9054102008C0

main90541-02008C0

9162160614

main91621-60614

9354054010

main93540-54010

9356755016

main93567-55016

9356855012

main93568-55012

9356855014

main93568-55014

9616000400

main96160-00400
