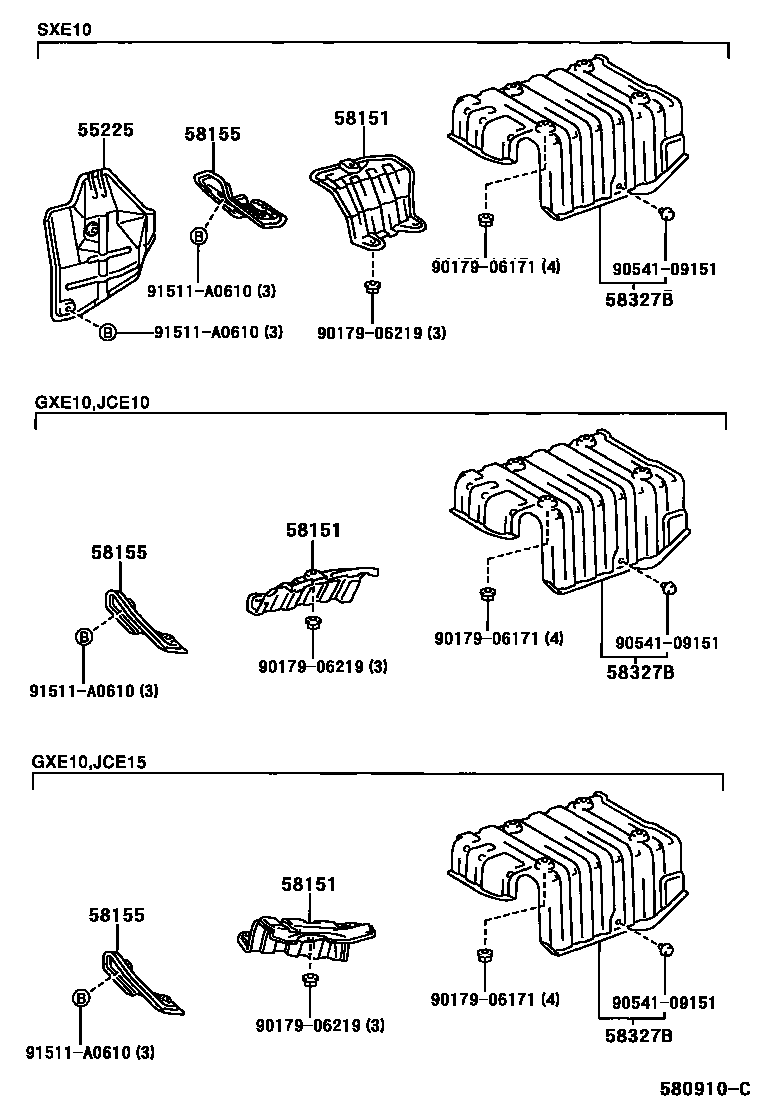

FLOOR INSULATOR

55225INSULATOR, DASH PANEL HEAT

main55225-53010iSXE10199810-200105

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30100iGXE15,JCE15200106

main58151-51010iGXE10,JCE10200308

main58151-53010iSXE10200105

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-51010iGXE10199810-200105

main58155-53010iSXE10200105

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-51010iGXE1#,JCE1#,SXE10200308

9017906171

main90179-06171

9017906219

main90179-06219

9054109151

main90541-09151

91511A0610

main91511-A0610

8 parts on this diagram · 1 diagram in section
