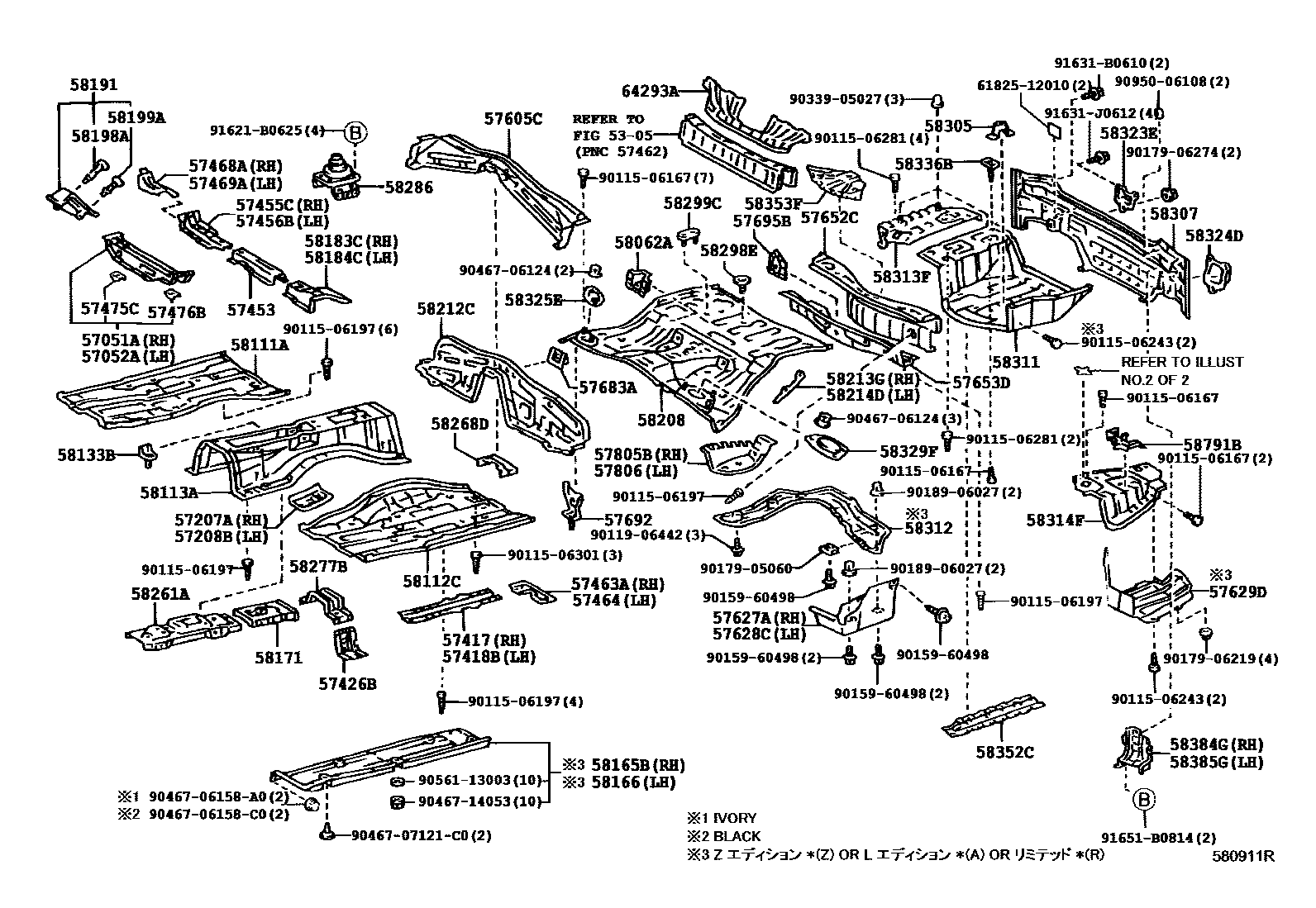

FLOOR PAN & LOWER BACK PANEL
5305FLOOR SIDE MEMBER
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57453MEMBER, FRONT FLOOR CROSS, NO.3
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57463AREINFORCEMENT, CENTER FLOOR CROSSMEMBER
57464STRENGTH, CENTER FLOOR CROSSMEMBER
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57475CPLATE, FRONT FLOOR CROSSMEMBER
57476BPLATE, FRONT FLOOR CROSSMEMBER
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57627ACOVER, REAR FLOOR SIDE MEMBER, RH
57628CCOVER, REAR FLOOR SIDE MEMBER, LH
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
57695BBRACKET, REAR FLOOR CROSSMEMBER, NO.2
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58113APANEL, FRONT FLOOR, CENTER
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58261ACOVER, TRANSMISSION
58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58286BOOT, SHIFT & SELECT LEVER, NO.1
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58312PANEL, REAR BODY FLOOR, NO.1
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58336BREINFORCEMENT, REAR FLOOR PAN
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58791BCARRIER, JACK
64293ARETAINER, ROOM PARTITION
6182512010PLATE, QUARTER INNER PANEL, LOWER FRONT RH
main61825-12010
9011506167
main90115-06167
9011506197
main90115-06197
9011506243
main90115-06243
9011506281
main90115-06281
9011506301
main90115-06301
9011906442
main90119-06442
9015960498
main90159-60498
9017905060
main90179-05060
9017906219
main90179-06219
9017906274
main90179-06274
9018906027
main90189-06027
9033905027
main90339-05027
9046706124
main90467-06124
9046706158A0
main90467-06158A0
9046706158C0
main90467-06158C0
9046707121C0
main90467-07121C0
9046714053
main90467-14053
9056113003
main90561-13003
9095006108
main90950-06108
91621B0625
main91621-B0625
91631B0610
main91631-B0610
91631J0612
main91631-J0612
91651B0814
main91651-B0814
92 parts on this diagram · 3 diagrams in section
