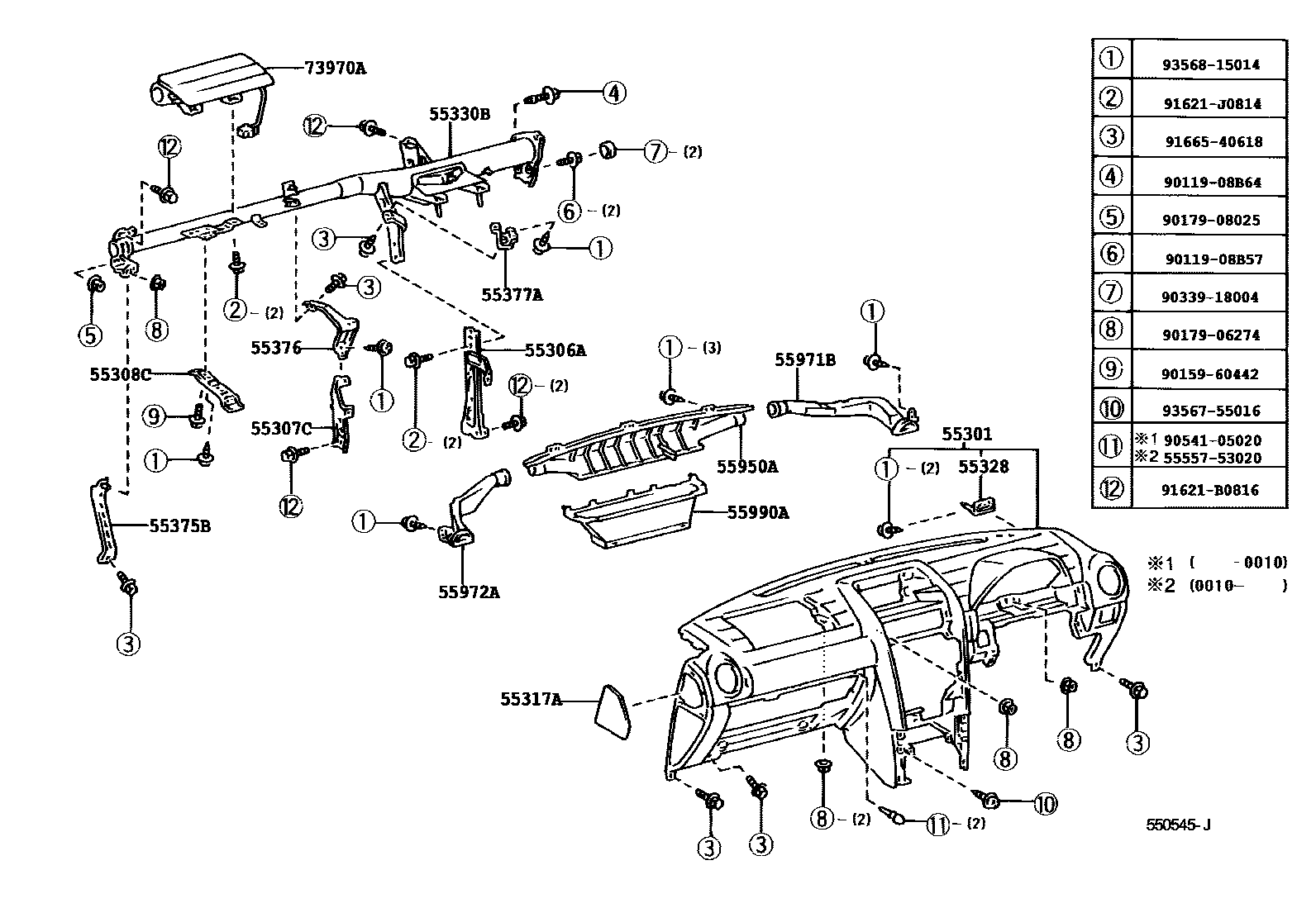

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-53010-C0iGXE10; SXE10199904-200005

BLACK,TRIM0#,2#; BLACK,TRIM2#

main55301-53010-C1iGXE10,SXE10200005-200101

main55301-53010-C2iGXE10,SXE10200005-200101

main55301-53010-C3iGXE10200105-200106

main55301-53011-C1iGXE10,SXE10200101-200105

main55301-53011-C2iGXE10,SXE10200101-200105

main55301-53011-C3iGXE10; SXE10200101-200105

main55301-53050-C0iGXE15200106

main55301-53050-C1iGXE15,JCE15200106

main55301-53060-C0iGXE10..ATM200105

main55301-53060-C1iGXE10..ATM;JCE10,SXE10;GXE10..SED..MTM200105

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-53010iGXE10,JCE10,SXE10200105

main55306-53040iGXE15,JCE15200106

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55352-53010iGXE10,SXE10199810-200105

main55352-53030iGXE15,JCE15200106

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-53010iGXE1#,JCE1#,SXE10200105

55317APANEL, INSTRUMENT SIDE, RH

main55317-53010-A0iGXE10,SXE10200005-200105

IVORY,TRIM0#

main55317-53010-C0iGXE10; SXE10200101-200105

BLACK,TRIM0#,2#; BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22040×2iGXE10,SXE10199810-200105

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53010iGXE10,SXE10199810-200105

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-53010iGXE10,SXE10199810-200105

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-53010iGXE10,SXE10199810-200105

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-53010iGXE10,SXE10199810-200105

55950ANOZZLE ASSY, DEFROSTER

main55950-53010iGXE10,SXE10199810-200105

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55970-53010iGXE10,SXE10199810-200105

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-53010iGXE10,SXE10199810-200105

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-53010iGXE10,SXE10199810-200105

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-53010-C0iGXE10,SXE10199810-199904

BLACK,TRIM2#

main73970-53030-C0iGXE10,SXE10200005-200105

BLACK,TRIM0#,2#

main73970-53050-C0iGXE1#,JCE1#,SXE10200105-200208

BLACK,TRIM0#,2#

main73970-53090-C0iJCE1#,SXE10;GXE10..SED..MTM200208-200308

BLACK,TRIM0#,2#

5555753020BRACKET, LUGGAGE DOOR OPENING VALVE

main55557-53020

9011908B57

main90119-08B57

9011908B64

main90119-08B64

9015960442

main90159-60442

9017906274

main90179-06274

9017908025

main90179-08025

9033918004

main90339-18004

9054105020

main90541-05020

91621B0816

main91621-B0816

91621J0814

main91621-J0814

9166540618

main91665-40618

9356755016

main93567-55016

9356815014

main93568-15014

28 parts on this diagram · 3 diagrams in section
