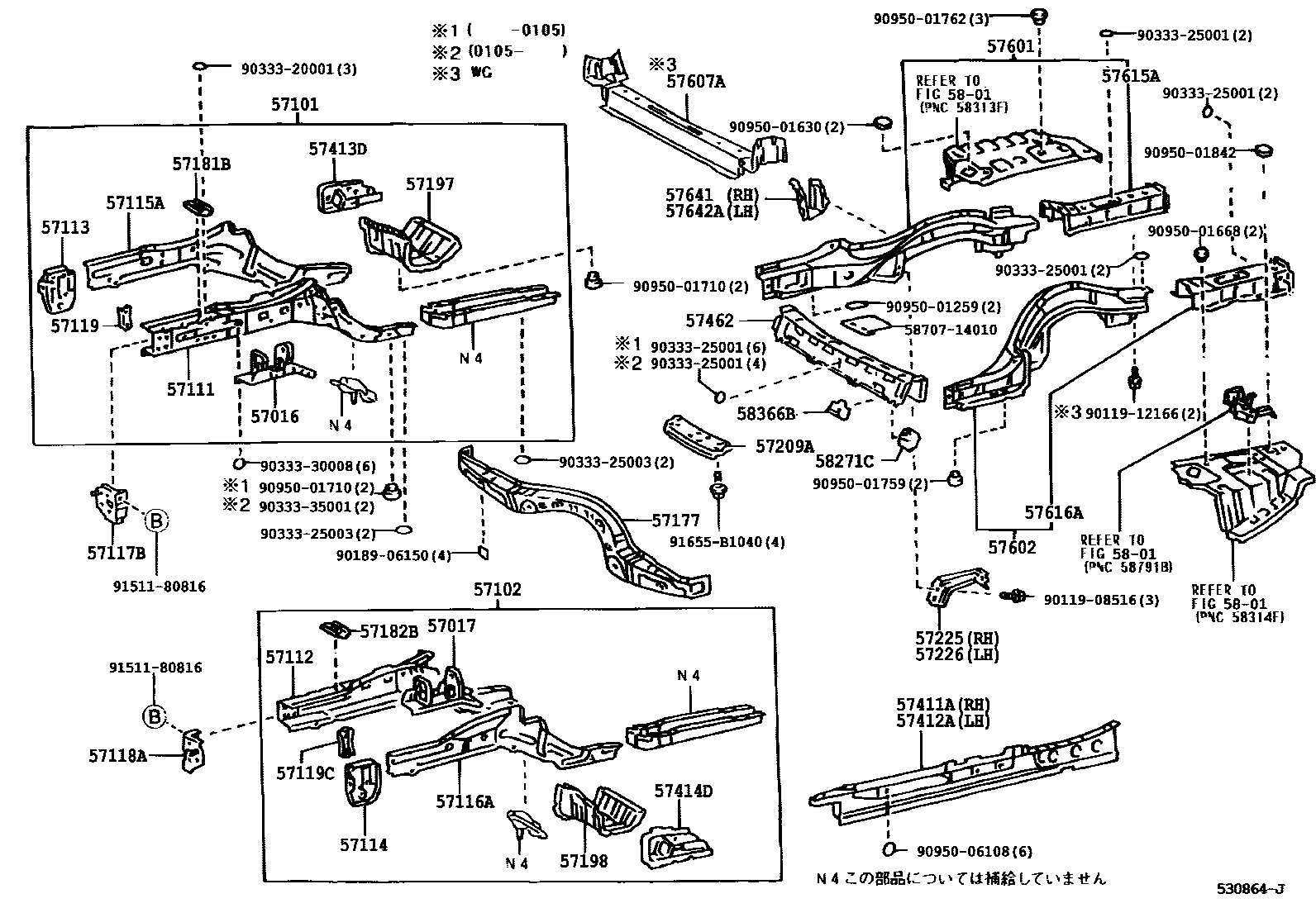

FLOOR SIDE MEMBER

0001 1 0002 1

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-30031iGXE15,JCE15200106

main57016-51010iGXE10,JCE10,SXE10199810-200105

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-30030iGXE15,JCE15200106

main57017-51010iGXE10,SXE10199810-200105

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-53010iGXE10,SXE10199810-200105

main57101-53011iGXE10200105

main57101-53040iGXE15,JCE15200106

main57101-53050iJCE10200106

main57101-53060iSXE10200105

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-53010iGXE10,SXE10199810-200105

main57102-53012iGXE10,JCE10,SXE10200105

main57102-53040iGXE15,JCE15200106

57111MEMBER, FRONT SIDE, RH

main57111-53010iGXE10,SXE10199810-200012

main57111-53011iGXE10,SXE10200012-200404

main57111-53012iGXE10,SXE10200404

main57111-53040iGXE15,JCE15200106-200404

main57111-53041iGXE15,JCE15200404

main57111-53050iJCE10200106-200404

main57111-53051iJCE10200404

57112MEMBER, FRONT SIDE, LH

main57112-53010iGXE10,SXE10199810-200404

main57112-53011iGXE10,JCE10,SXE10200404

main57112-53040iGXE15,JCE15200106-200404

main57112-53041iGXE15,JCE15200404

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-53010iGXE10,SXE10199810-200105

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-53010iGXE10,SXE10199810-200105

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-53010iGXE10,SXE10199810-200105

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-53010iGXE10,SXE10199810-200105

main57116-53020iGXE1#,JCE1#,SXE10200105

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-53010iGXE10,SXE10199810-200105

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-53010iGXE1#,JCE1#,SXE10199810-200105

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iGXE10,SXE10199810-200105

57119CPLATE, FRONT SIDE MEMBER, FRONT

main57119-22060iGXE10,SXE10199810-200105

57177CROSSMEMBER, FRONT SIDE MEMBER TO DASH PANEL

main57103-51010iGXE10199810-200105

main57103-53010iSXE10199810-200105

57181BPLATE, FRONT SIDE MEMBER, NO.3 RH

main57181-53010iGXE10..ATM;JCE10,SXE10;GXE10..SED..MTM199810-200404

main57181-53011iGXE10,JCE10,SXE10200404

57182BPLATE, FRONT SIDE MEMBER, NO.3 LH

main57181-53010iGXE10..ATM199810-200404

main57181-53011iGXE10,JCE10,SXE10200404

57197BOX, TORQUE, FRONT RH

main57197-51010iGXE1#,JCE1#,SXE10199810-200105

57198BOX, TORQUE, FRONT LH

main57198-51010iGXE10,SXE10199810-200105

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22180iGXE15,JCE15200106

main57255-30110iGXE10,SXE10199810-200105

57225BRACE, FRONT MOUNTING BRACKET, RH

main57225-30020iGXE1#,JCE1#,SXE10200005-200105

57226BRACE, FRONT MOUNTING BRACKET, LH

main57226-30021iGXE10,SXE10200005-200105

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-53010iGXE10,SXE10199810-200105

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-53010iGXE10,SXE10199810-200105

57413DEXTENSION, FLOOR SIDE, INNER RH

main57413-51010iGXE10,SXE10199810-200105

57414DEXTENSION, FLOOR SIDE, INNER LH

main57414-51010iGXE10,SXE10199810-200105

57462MEMBER, CENTER FLOOR CROSS, NO.2

main57405-53010iGXE1#,JCE1#..WG200106

main57462-53010iGXE10,SXE10199810-200105

main57462-53030iGXE10,SXE10..SED200105

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-53900iGXE10,SXE10199810-200005

main57601-53903iGXE10,SXE10..SED200005-200105

main57601-53905iGXE1#,JCE1#..WG..ATM200106-200308

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-53900iGXE10,SXE10199810-200005

main57602-53903iGXE10,SXE10200005-200109

main57602-53906iGXE10,SXE10..SED200105-200507

main57602-53907iGXE10,SXE10..SED200208-200507

main57602-53908iGXE1#,JCE1#..WG200106-200507

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-53010iGXE1#,JCE1#..WG200106

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-53901iGXE10,SXE10199810-200004

main57615-53903iGXE10,SXE10200004-200105

main57615-53905iGXE10..WG..MTM200106-200308

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-53901iGXE10,SXE10199810-200105

main57616-53903iGXE1#,JCE1#..WG200106

57642AREINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER LH

main57642-53010iGXE10,SXE10200005-200101

main57642-53011iGXE10,SXE10200101-200308

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58271CREINFORCEMENT, BELT ANCHOR TO FROOR PAN, NO.3

main58271-53020iGXE1#,JCE1#,SXE10200105

58366BBRACKET, FUEL TANK SUPPORT, LH

main58366-30050iGXE10,SXE10200005-200105

5870714010PLUG SET, HOLE

main58707-14010

9011908516

main90119-08516

9011912166

main90119-12166

9018906150

main90189-06150

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9033335001

main90333-35001

9095001259

main90950-01259

9095001630

main90950-01630

9095001668

main90950-01668

9095001710

main90950-01710

9095001759

main90950-01759

9095001762

main90950-01762

9095001842

main90950-01842

9095006108

main90950-06108

9151180816

main91511-80816

91655B1040

main91655-B1040

55 parts on this diagram · 2 diagrams in section
