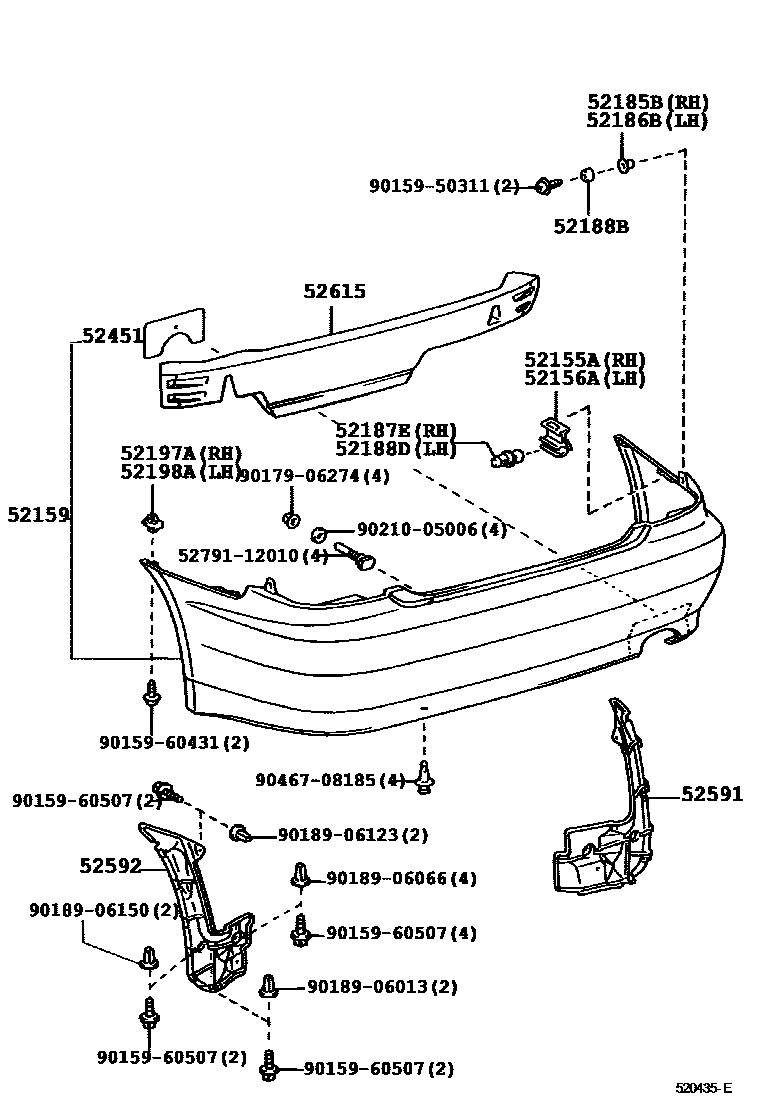

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
SUPER WHITE 2,040
SU.WHITE PM,051
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
RED M.M.,3N3
SUPER RED 5,3P0
BEIGE ME.,4R4
SUPER BRIGHT YELLOW,576
DK. GREEN MC.,6Q7
DARK GREEN MC.,6R4
BLUE MC.,8M6
DK.BLUE MC.,8N8
DARK BLUE MC.,8P8
DK.BLUE M.M.,8P4
SUPER WHITE 2,040
WHITE PEARL CS.,062
SILVER ME.,1C0
DK.GRAY M.M.,1C6
BLACK,202
SUPER RED 5,3P0
BEIGE ME.,4R4
SUPER BRIGHT YELLOW,576
GOLD ME.,585
DARK GREEN MC.,6R4
DK.BLUE MC.,8N8
DK.BLUE M.M.,8P4
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187EGUIDE, REAR BUMPER LOCATION, RH
52188BSPACER, REAR BUMPER MOUNTING
52188DGUIDE, REAR BUMPER LOCATION, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52451GUARD, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
5279112010BOLT, BUMPER MOULDING SET, NO.1
main52791-12010
9015950311
main90159-50311
9015960431
main90159-60431
9015960507
main90159-60507
9017906274
main90179-06274
9018906013
main90189-06013
9018906066
main90189-06066
9018906123
main90189-06123
9018906150
main90189-06150
9021005006
main90210-05006
9046708185
main90467-08185
25 parts on this diagram · 2 diagrams in section
