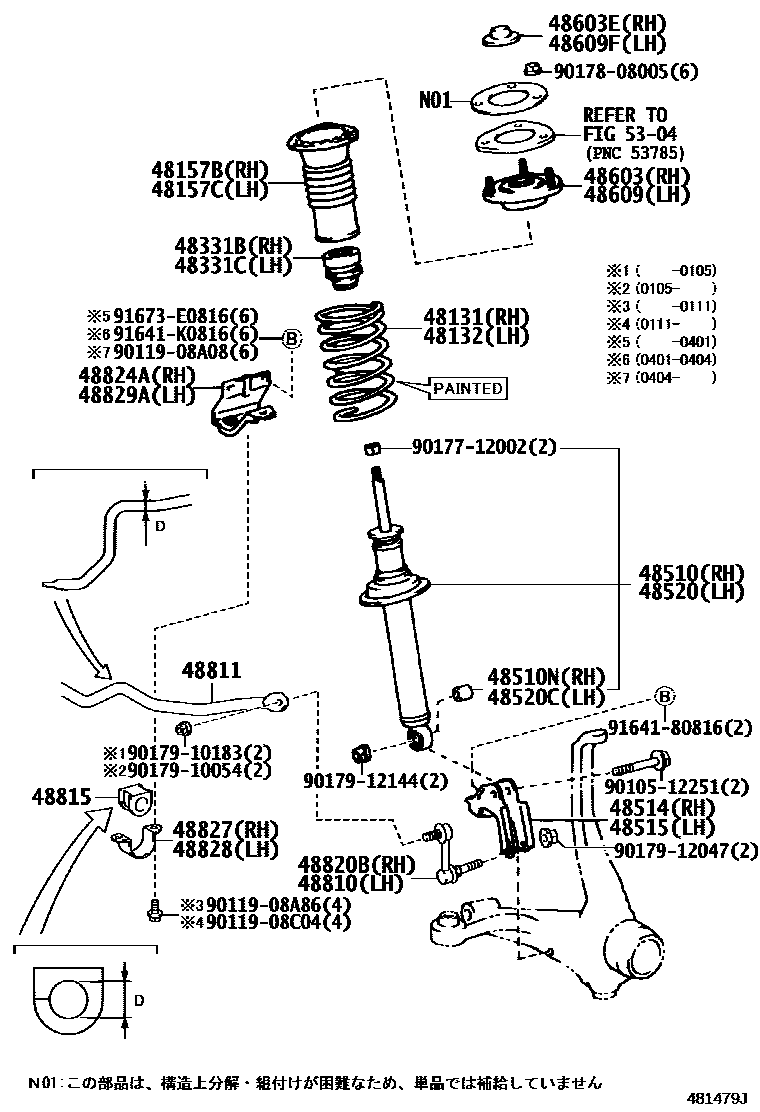

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48131SPRING, FRONT COIL, RH

main48131-53010iGXE10..SED;SXE10..ATM200105-200507

main48131-53070iSXE10..MTM200105-200507

main48131-53090iGXE10..WG200106-200507

main48131-53100iJCE15200106-200507

main48131-53110iJCE10200106-200507

main48131-53130iGXE15200201-200507

48132SPRING, FRONT COIL, LH

main48131-53010iGXE10,SXE10199810-200105

main48131-53070iSXE10..MTM200105-200507

main48131-53090iGXE10..WG200106-200507

main48131-53100iJCE15200106-200507

main48131-53110iJCE10200106-200507

main48131-53130iGXE15200201-200507

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-22040iGXE10,JCE10,SXE10200105

main48157-22050iGXE15,JCE15200106

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-22040iGXE10,SXE10199810-200105

main48157-22050iGXE15,JCE15200106

48331BBUMPER, FRONT SPRING, RH

main48331-30110iGXE15,JCE15200106

main48331-30130iGXE10,JCE10..WG200106

main48331-51010iGXE10,SXE10..SED200105-200208

48331CBUMPER, FRONT SPRING, LH

main48331-30110iGXE15,JCE15200106

main48331-30130iGXE10,JCE10..WG200106

main48331-51010iGXE10,SXE10..SED200105-200208

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-59325iGXE10,SXE10..MTM200005-200105

main48510-59485iSXE10..MTM200105-200307

main48510-59505iJCE10200106-200507

main48510-59515iJCE15200106-200507

main48510-59535iGXE10..WG200106-200507

main48510-59545iGXE15200201-200507

main48510-80004iGXE10,SXE10199810-200005

main48510-80143iGXE10..SED..MTM200307-200507

main48510-80144iGXE10,SXE10..SED..ATM200307-200507

main48510-80145iSXE10..MTM200307-200507

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-12016iGXE10,SXE10199810-200005

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-22010iGXE10,SXE10199810-200105

main48514-22020iGXE15,JCE15200106

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48504-53010iGXE10,JCE10,SXE10200105

main48515-22010iGXE10,SXE10199810-200105

main48515-22020iGXE15,JCE15200106

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-59325iGXE10..SED..MTM200105-200307

main48510-59485iSXE10..MTM200105-200307

main48510-59505iJCE10200106-200507

main48510-59515iJCE15200307-200507

main48510-59535iGXE10..WG200106-200507

main48510-59545iGXE15200307-200507

main48510-80004iGXE10,SXE10199810-200005

main48510-80143iGXE10..SED..MTM200307-200507

main48510-80144iGXE10,SXE10..SED..ATM200307-200507

main48510-80145iSXE10..MTM200307-200507

main48520-59035iJCE15200106-200507

main48520-59055iGXE15200201-200507

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-12016iGXE10..WG..MTM200105-200308

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-22030iGXE10,SXE10199810-200005

main48680-22130iGXE15,JCE15200106

main48680-22150iGXE10,JCE10..WG200106

main48680-53010iGXE10,SXE10200005-200105

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iGXE1#,JCE1#,SXE10200105

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-22030iGXE10,SXE10199810-200005

main48680-22150iGXE10,JCE10..WG200106

main48680-22160iGXE15,JCE15200106

main48680-53010iGXE10,SXE10200005-200105

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iGXE10,SXE10199810-200105

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22041iGXE15,JCE15200106

main48820-22041iGXE10,JCE10,SXE10200105

48811BAR, STABILIZER, FRONT

main48811-22540iSXE10..MTM200105

main48811-30510iGXE15200201

main48811-51010iGXE10..WG;GXE10..SED..ATM;JCE10,SXE10..ATM200105

main48811-53010iGXE10,SXE10..ATM199810-199905

ID=27.2

main48811-53020iSXE10..MTM199810-199905

ID=26

main48811-53030iJCE15200106

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-30450×2iGXE15200201

main48815-30470×2iSXE10..MTM199810-199905

ID=26

main48815-51010×2iGXE10..WG;JCE10,SXE10;GXE10..SED..ATM200105

main48815-53010×2iGXE10,SXE10..MTM200005-200105

main48815-53020×2iJCE15200106

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22041iGXE10,JCE10,SXE10200105

main48820-22051iGXE15,JCE15200106

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30020iGXE10,SXE10199810-200105

main48809-30021iGXE10,JCE10,SXE10200111

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-22060iGXE15,JCE15200106

main48824-22090iGXE10,JCE10,SXE10200105

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-22060iGXE15,JCE15200106

main48824-22090iGXE10,JCE10,SXE10200105

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30030iGXE10,SXE10199810-200105

main48809-30031iGXE10,JCE10,SXE10200111

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

9010512251

main90105-12251

9011908A08

main90119-08A08

9011908A86

main90119-08A86

9011908C04

main90119-08C04

9017712002

main90177-12002

9017808005

main90178-08005

9017910054

main90179-10054

9017910183

main90179-10183

9017912047

main90179-12047

9017912144

main90179-12144

9164180816

main91641-80816

91641K0816

main91641-K0816

91673E0816

main91673-E0816

38 parts on this diagram · 2 diagrams in section
