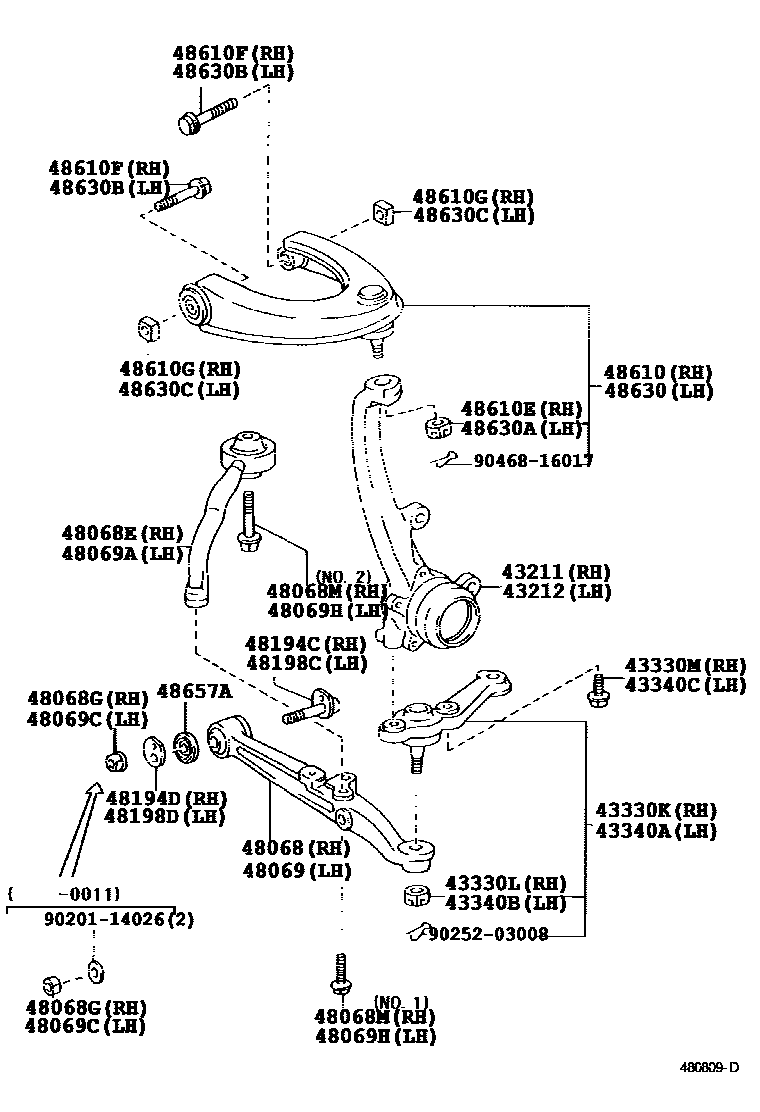

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

43211KNUCKLE, STEERING, RH

main43211-30172iGXE15,JCE15200106

main43211-30190iGXE10,SXE10199810-200104

main43211-30191iGXE10,SXE10200104-200105

43212KNUCKLE, STEERING, LH

main43212-30122iGXE15,JCE15200106

main43212-30140iGXE10,SXE10199810-200104

main43212-30141iGXE10,SXE10200104-200105

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-39506iGXE15,JCE15200106

main43330-59065iGXE10,SXE10199810-200009

main43330-59066iGXE10,SXE10200009-200105

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14002iGXE1#,JCE1#,SXE10200105-200308

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12141×2iGXE1#,JCE1#,SXE10200105-200308

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-39396iGXE15,JCE15200106

main43340-59065iGXE10,SXE10199810-200009

main43340-59066iGXE10,SXE10200009-200105

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14002iGXE1#,JCE1#,SXE10200105-200308

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12141×2iGXE1#,JCE1#,SXE10200105-200308

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-22120iGXE15,JCE15200106

main48068-53010iGXE10,SXE10200003-200105

main48068-59025iGXE10,SXE10199810-200003

48068EARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH

main48660-30211iGXE15,JCE15200106

main48660-53010iGXE10,SXE10199810-200105

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90170-14012iGXE10,SXE10199810-200011

main90179-14019iGXE1#,JCE1#,SXE10200105-200308

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90105-16053×2iGXE10,SXE10199810-200105

main90901-05010iGXE10,SXE10199810-200105

main90901-05018iGXE15,JCE15200106

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-22120iGXE15,JCE15200106

main48069-53010iGXE10,SXE10200003-200105

main48069-59025iGXE10,SXE10199810-200003

48069AARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH

main48670-30211iGXE15,JCE15200106

main48670-53010iGXE10,SXE10199810-200105

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90170-14012iGXE10,SXE10199810-200011

main90179-14019iGXE1#,JCE1#,SXE10200105-200308

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90105-16053×2iGXE10,SXE10199810-200105

main90901-05010iGXE10,SXE10199810-200105

main90901-05018iGXE15,JCE15200106

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22040iGXE10,SXE10199810-200011

main48190-30070iGXE1#,JCE1#,SXE10200105-200308

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-14010iGXE10,SXE10199810-200011

main48198-30090iGXE1#,JCE1#,SXE10200105-200308

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22040iGXE10,SXE10199810-200011

main48190-30070iGXE1#,JCE1#,SXE10200105-200308

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-14010iGXE10,SXE10199810-200011

main48198-30090iGXE1#,JCE1#,SXE10200105-200308

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-39115iGXE15,JCE15200106

main48610-59025iGXE10,SXE10199810-200105

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12002iGXE1#,JCE1#,SXE10200105-200308

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-10812×2iGXE1#,JCE1#,SXE10200105-200308

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10010×2iGXE1#,JCE1#,SXE10200105-200302

main90173-10012×2iGXE1#,JCE1#,SXE10200302-200308

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48610-39115iGXE15,JCE15200106

main48630-59025iGXE10,SXE10199810-200105

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12002iGXE1#,JCE1#,SXE10200105-200308

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-10812×2iGXE1#,JCE1#,SXE10200105-200308

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10010×2iGXE1#,JCE1#,SXE10200105-200302

main90173-10012×2iGXE1#,JCE1#,SXE10200302-200308

48657STAY, LOWER ARM BRACKET, RH

main48607-22011iGXE15,JCE15200106

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-53010×2iGXE10,SXE10199810-200105

9020114026

main90201-14026

9025203008

main90252-03008

9046816017

main90468-16017

33 parts on this diagram · 3 diagrams in section
