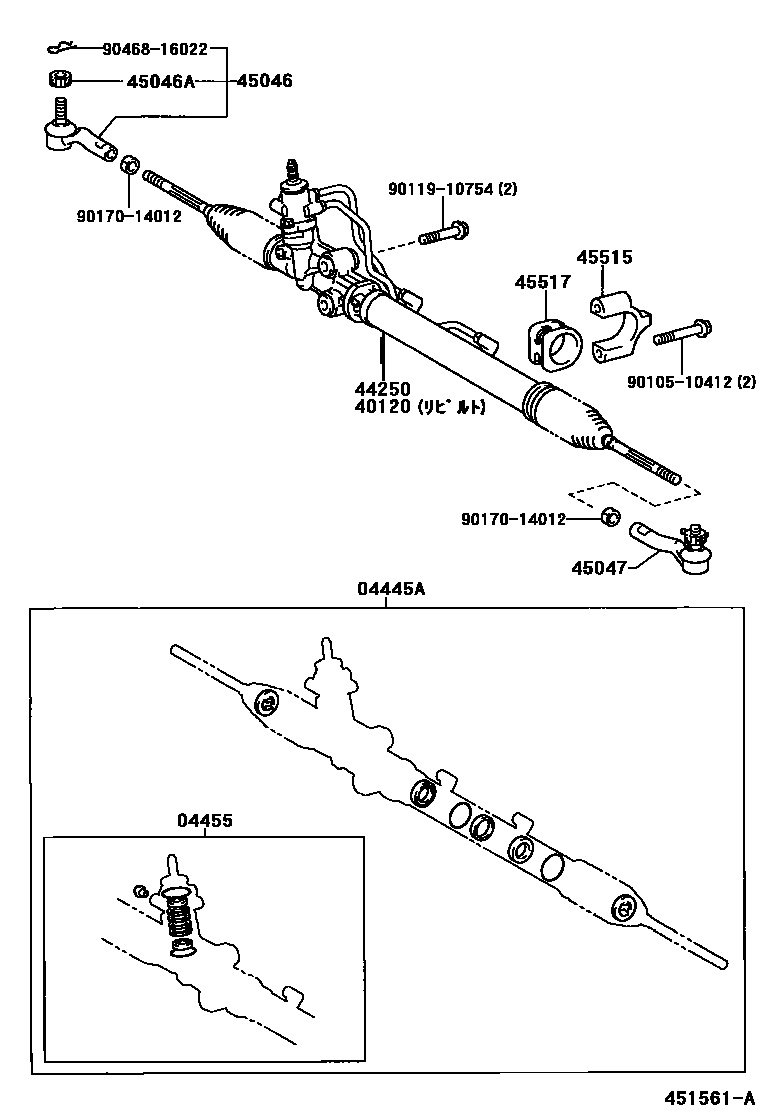

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-51010iGXE10,SXE10199911-200010

main04445-51011iGXE10,SXE10200010-200507

main04445-53010iGXE10,SXE10199810-199911

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-51010iGXE10,SXE10199911-200507

main04455-53010iGXE10,SXE10199810-199911

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-53010iGXE10,SXE10199810-200105

TOYODA KOKI

main40120-53030iGXE10,JCE10,SXE10200105-200507

TOYODA KOKI

main40120-53040iGXE15,JCE15200106-200507

TOYODA KOKI

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-53010iGXE10,SXE10199810-200105

main44250-53030iGXE10,JCE10,SXE10200105-200209

main44250-53040iGXE15,JCE15200106-200209

45046END SUB-ASSY, TIE ROD, RH

main45460-39455iGXE15,JCE15200106-200507

main45460-59035iGXE10,SXE10199810-200507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGXE10,SXE10199810-200308

45047END SUB-ASSY, TIE ROD, LH

main45470-39165iGXE15,JCE15200106-200507

main45470-59035iGXE10,SXE10199810-200507

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGXE10,JCE10,SXE10199810-200308

main45515-22130iGXE15,JCE15200106

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22070iGXE10,JCE10,SXE10199810-200308

main45517-22080iGXE15,JCE15200106

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816022

main90468-16022

13 parts on this diagram · 5 diagrams in section
