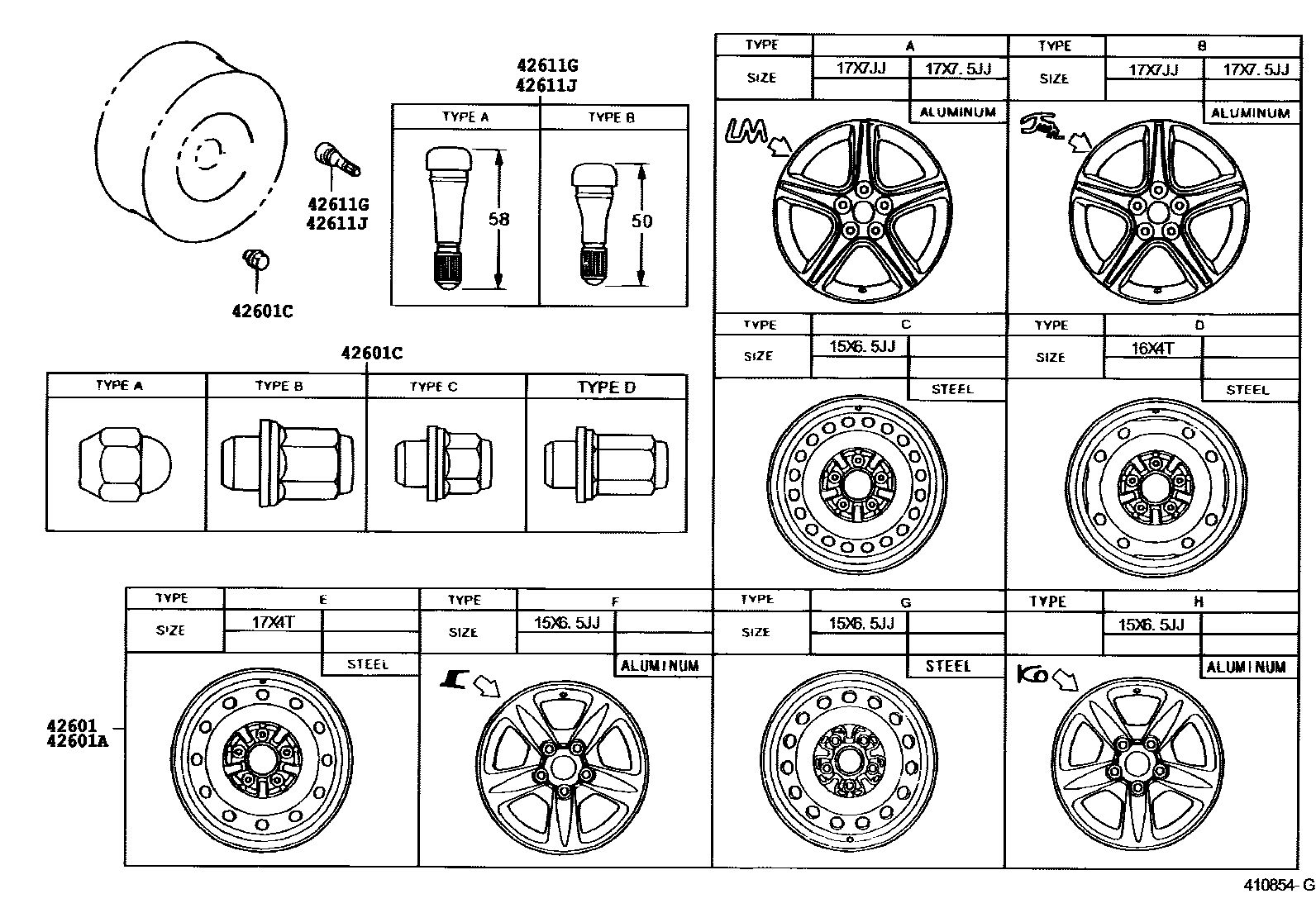

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-28440×4iGXE10;SXE10..ATM200005-200105

main42611-28470×4iGXE1#;SXE10..ATM200110-200208

main42611-2A010×4iGXE10;SXE10..ATM200105-200507

main42611-2A040×4iGXE15200201-200208

main42611-3A160×4iGXE10;SXE10..ATM200208-200507

main42611-53011×2iGXE10,JCE10..WG200106-200507

main42611-53020×4iGXE10,SXE10199810-200105

main42611-53030×4iGXE15200105-200308

main42611-53040×4iJCE15;GXE10,SXE10..SED200105-200208

main42611-53050×2iGXE10,JCE10..WG200106-200507

main42611-53060×2iGXE10,JCE10..WG200106-200208

main42611-53070×2iGXE10,JCE10..WG200106-200507

main42611-53080×4iJCE15;GXE10,SXE10..SED200105-200507

main42611-53090×2iGXE10,JCE10..WG200106-200208

main42611-53100×4iSXE10..MTM;GXE15,JCE15200208-200507

main42611-53110×4iGXE10,JCE10..WG; JCE15;GXE10,SXE10..SED200208-200507

main42611-53120×2iGXE10,JCE10..WG200208-200507

42601AWHEEL, DISC (FOR SPARE)

main42611-28210iGXE15200105-200308

main42611-50090iSXE10;GXE10..MTM199810-200105

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iGXE10..SED..MTM;GXE10,SXE10..ATM200105

main90942-01033×20iGXE10..ATM;JCE1#,SXE10;GXE10..SED..MTM200105

main90942-01058×20iGXE15;GXE10..WG..MTM200105-200308

main90942-01083×20iGXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10200208

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iGXE10;SXE10..ATM200011-200105

main90942-05009×4iGXE10,SXE10199810-200105

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iGXE10,SXE10199810-200105

5 parts on this diagram · 5 diagrams in section
