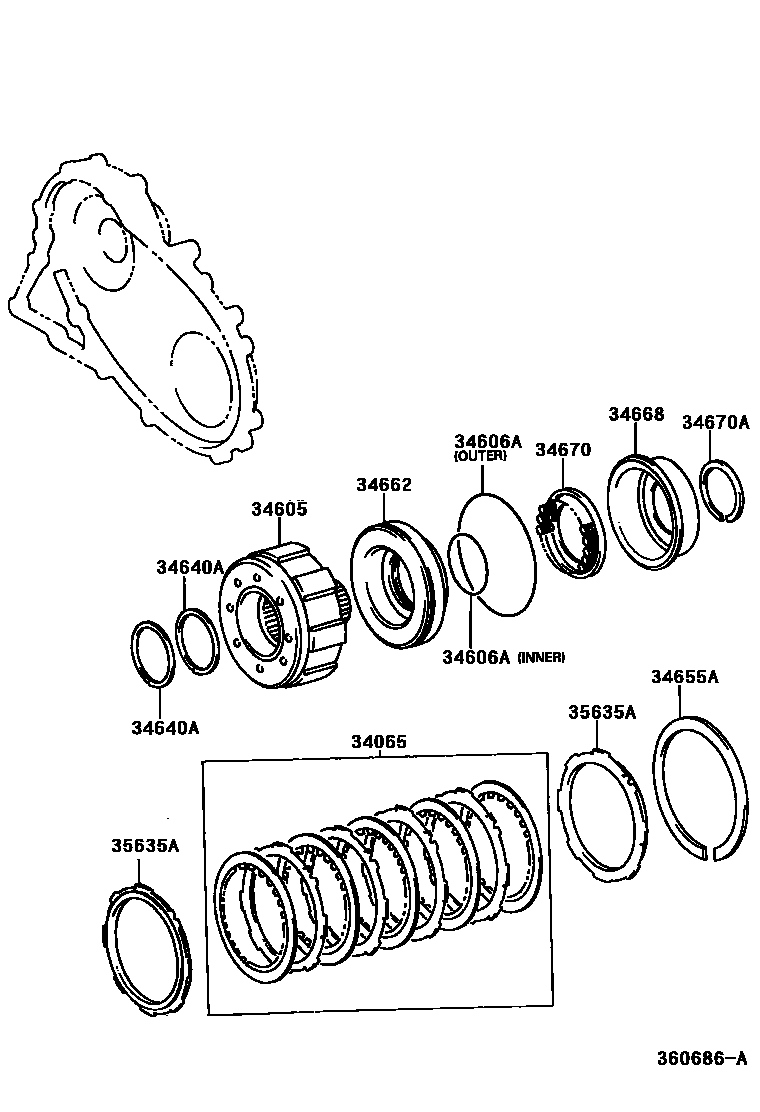

TRANSFER DIRECT CLUTCH, LOW BRAKE & SUPPORT

34065DISC SET, CENTER DIFFERENTIAL CLUTCH

main34065-30010iGXE15,JCE15200106

34605DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH

main34605-30010iGXE15,JCE15200106

34606ARING, O (FOR TRANSFER DIRECT CLUTCH PISTON)

main90301-56004iGXE15,JCE15200106

main90301-99058iGXE15,JCE15200106

34640ARING, SEAL(FOR TRANSFER CENTER SUPPORT)

main35617-30030×2iGXE15,JCE15200106

34655ARING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)

main90521-99001iGXE15,JCE15200106

34662PISTON, CENTER DIFFERENTIAL CLUTCH

main34662-30010iGXE15,JCE15200106

34668BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE

main34668-30010iGXE15,JCE15200106

34670SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN

main34670-30010iGXE15,JCE15200106

34670ARING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)

main90520-53002iGXE15,JCE15200106

35635AFLANGE, CENTER DIFFERENTIAL CLUTCH DISC

main35635-30070iGXE15,JCE15200106

main35635-30080iGXE15,JCE15200106

main35635-30090×2iGXE15,JCE15200109

main35635-50060×2iJCE15200106-200109

10 parts on this diagram · 1 diagram in section
