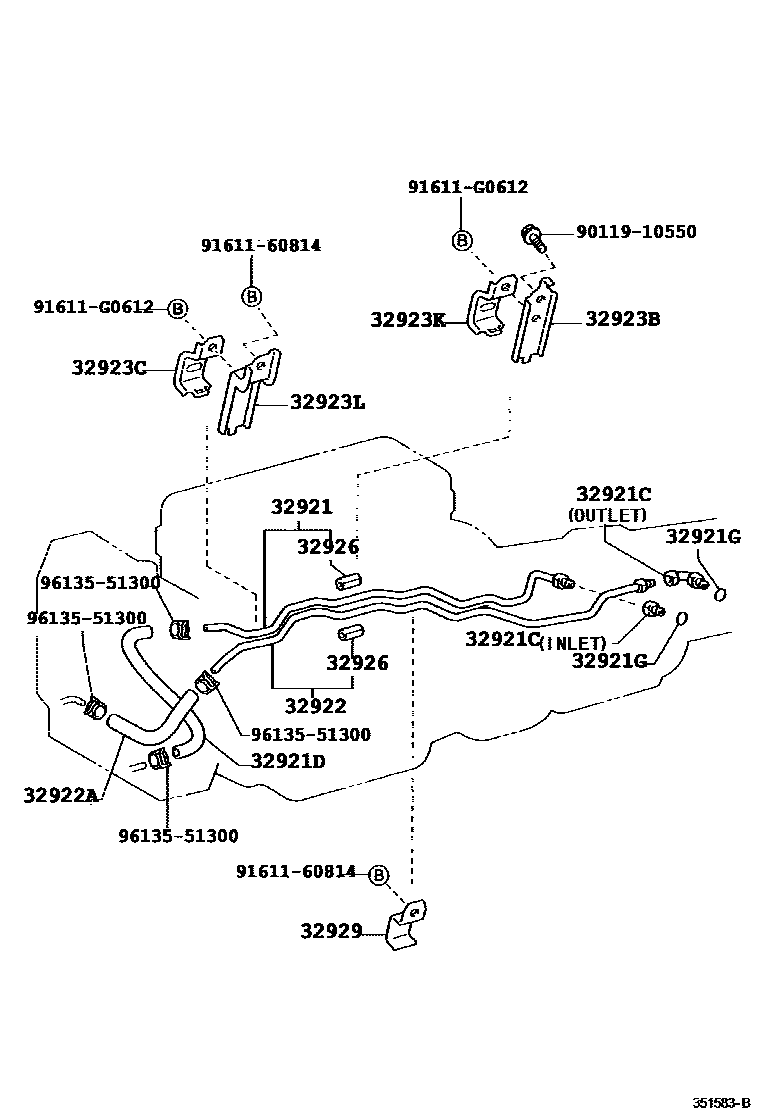

OIL COOLER & TUBE (ATM)

0001 1A650E 0002 1A47DE 0003 1A650E 0004 1A340H 0005 1A340H

32921TUBE, OIL COOLER INLET, NO.1

main32921-53010iSXE10..ATM200105-200507

main32921-53020iGXE10..ATM200105-200507

main32921-53060iJCE10200106-200507

main32921-53070iJCE15200106-200507

main32921-53090iGXE15200201-200507

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iGXE10..ATM200105

main90404-16029iJCE10,SXE10..ATM200105

main90407-16009iSXE10..ATM199810-200105

main90407-16010iGXE10..ATM200105

main90407-16012iGXE15,JCE15200106

32921DHOSE(FOR OIL COOLER INLET)

main90445-15050iSXE10..ATM199810-200105

main90445-17101iJCE15200106-200507

main90445-17110iJCE10200106-200507

main90445-17126iGXE15200201-200507

main90445-17128iGXE10..ATM200105-200507

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGXE10..ATM199810-200105

main90301-11006×2iSXE10..ATM199810-200105

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-53010iSXE10..ATM200105-200507

main32922-53020iGXE10..ATM200105-200507

main32922-53070iJCE10200106-200507

main32922-53080iJCE15200106-200507

main32922-53090iGXE15200201-200507

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15057iSXE10..ATM199810-200105

main90445-17069iGXE10..ATM199810-200105

main90445-17101iGXE15200201-200507

main90445-17127iJCE10200106-200507

main90445-17136iJCE15200106-200507

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-53010iGXE10..ATM200105

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-22090iGXE15200201

main32923-53020iSXE10..ATM199810-200105

main32924-53020iGXE10..ATM200105

main32929-30150iJCE10200106

main32929-51010iJCE15200106

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32924-30240iJCE10200106

main32924-51010iJCE15200106

main32929-22050iSXE10..ATM199810-200105

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32923-30220iJCE10200106

main32924-22160iGXE15200201

main32924-30220iJCE15200106

main32929-22050iSXE10..ATM199810-200105

main90949-01B85iGXE10..ATM200105

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32924-53010iSXE10..ATM199810-200105

main32929-22050iGXE15,JCE15200106

main90462-12074iGXE10..ATM200105

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×6iGXE10..ATM; SXE10..ATM199810-200105

main32926-30030×4iGXE1#,JCE1#..ATM200105-200507

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-24070iGXE10..ATM200105

main32929-30140iSXE10..ATM199810-200105

main32929-50020iGXE15200201

9011910550

main90119-10550

9161160814

main91611-60814

91611G0612

main91611-G0612

9613551300

main96135-51300

17 parts on this diagram · 5 diagrams in section
