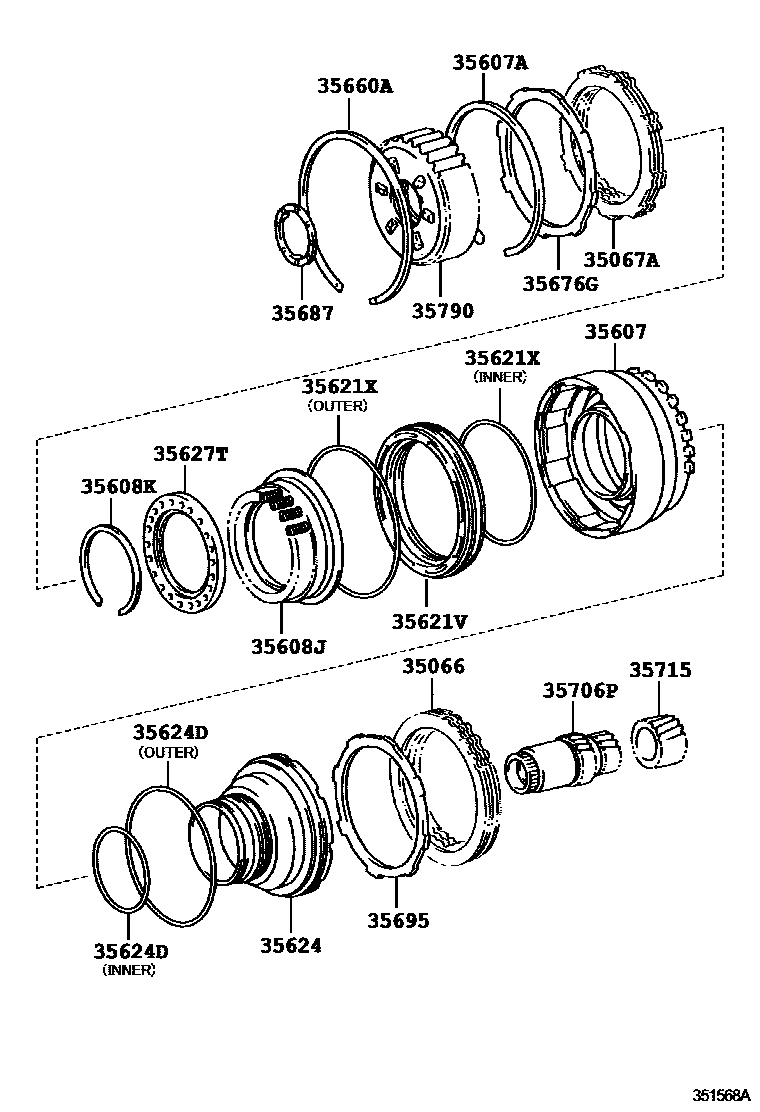

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35607DRUM SUB-ASSY, BRAKE, NO.1 & NO.2
35607ARING, SNAP, NO.1 (FOR BRAKE DRUM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608JSPRING SUB-ASSY, BRAKE PISTON RETURN
35608KRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
35621PISTON, BRAKE, NO.1
35621XRING, O (FOR BRAKE PISTON NO.1)
35624DRING, O (FOR BRAKE PISTON NO.4)
35627TSEAT, BRAKE RETURN SPRING
35660ARING, SNAP, NO.2 (FOR BRAKE DRUM)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
35676GFLANGE, BRAKE, NO.1
35687WASHER, CLUTCH DRUM THRUST, NO.3
35695PLATE, BRAKE, NO.5
35706PGEAR SUB-ASSY, FRONT PLANETARY SUN
35715GEAR, RR PLANETARY SUN
35790CLUTCH ASSY, 1 WAY
21 parts on this diagram · 3 diagrams in section
