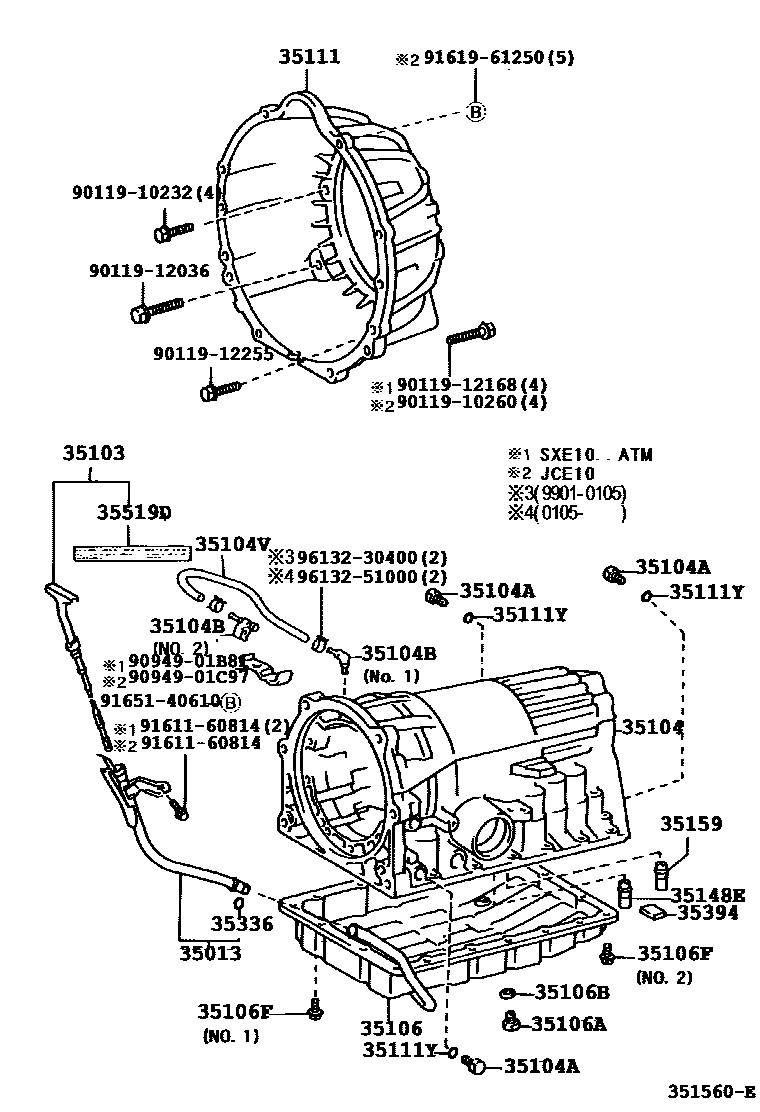

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A650E 0002 1A47DE 0003 1A340H 0004 1A340H

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22540iGXE15200201

main35013-30550iJCE10200106

main35013-30580iJCE15200106

main35013-53010iSXE10..ATM200105

main35013-53020iGXE10199810-199904

main35013-53021iGXE10..ATM200105

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22460iGXE15200201

main35103-30710iJCE15200106

main35103-53010iSXE10..ATM199810-200105

main35103-53020iGXE10..ATM200105

main35103-53050iJCE10200106

main35103-53060iSXE10..ATM200105

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iGXE10..ATM199810-200105

main35104-30190iGXE15,JCE15200106-200507

main35104-30200iJCE10,SXE10..ATM200105

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×2iGXE1#..ATM; JCE10,SXE10..ATM200105

main90341-14011iJCE15200106

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iGXE1#,JCE1#,SXE10..ATM200105

main90930-03149iGXE10,SXE10..ATM199810-200012

main90930-03168iGXE10,SXE10..ATM200012-200105

35104VHOSE (FOR BREATHER PLUG)

main90445-10020iSXE10..ATM200203

main90445-11118iGXE15200201

main90445-11145iGXE10..ATM200105

main90445-11154iJCE1#200203

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22081iJCE15200106-200507

main35106-22100iGXE10199810-199812

main35106-22101iGXE10199812-199906

main35106-30161iGXE15200201-200507

main35106-30220iJCE10200106-200507

main35106-53020iSXE10..ATM200105-200507

main35106-53030iGXE10..ATM200105-200507

main35106-53040iGXE10..ATM199906-200105

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iGXE1#,JCE1#,SXE10..ATM200304

main90341-10018iGXE10,SXE10..ATM199810-200105

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGXE1#,JCE1#,SXE10..ATM200304

main35178-50010iGXE1#,JCE1#,SXE10..ATM200105-200304

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iGXE10..ATM200105-200507

main90119-06513×18iJCE10,SXE10..ATM200105-200507

main90119-06866iJCE10,SXE10..ATM200105-200507

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22100iGXE15200201

main35111-30150iJCE1#200106

main35111-53010iGXE10..ATM199810-200105

main35111-53020iSXE10..ATM200105

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGXE10..ATM; SXE10..ATM199810-200105

35148EGASKET, BRAKE DRUM, NO.2

main35148-30010iSXE10..ATM199810-200105

35159GASKET, BRAKE DRUM

main35159-30010iGXE15,JCE15200106

main35159-30020iSXE10..ATM199810-200105

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGXE1#,JCE1#,SXE10..ATM200105

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iGXE10..ATM; SXE10..ATM199810-200105

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20030iGXE15,JCE1#,SXE10..ATM200105

main35519-30010iGXE10,SXE10..ATM199810-200105

9011910232

main90119-10232

9011910260

main90119-10260

9011912036

main90119-12036

9011912168

main90119-12168

9011912255

main90119-12255

9094901B81

main90949-01B81

9094901C97

main90949-01C97

9161160814

main91611-60814

9161961250

main91619-61250

9165140610

main91651-40610

9613230400

main96132-30400

9613251000

main96132-51000

29 parts on this diagram · 4 diagrams in section
