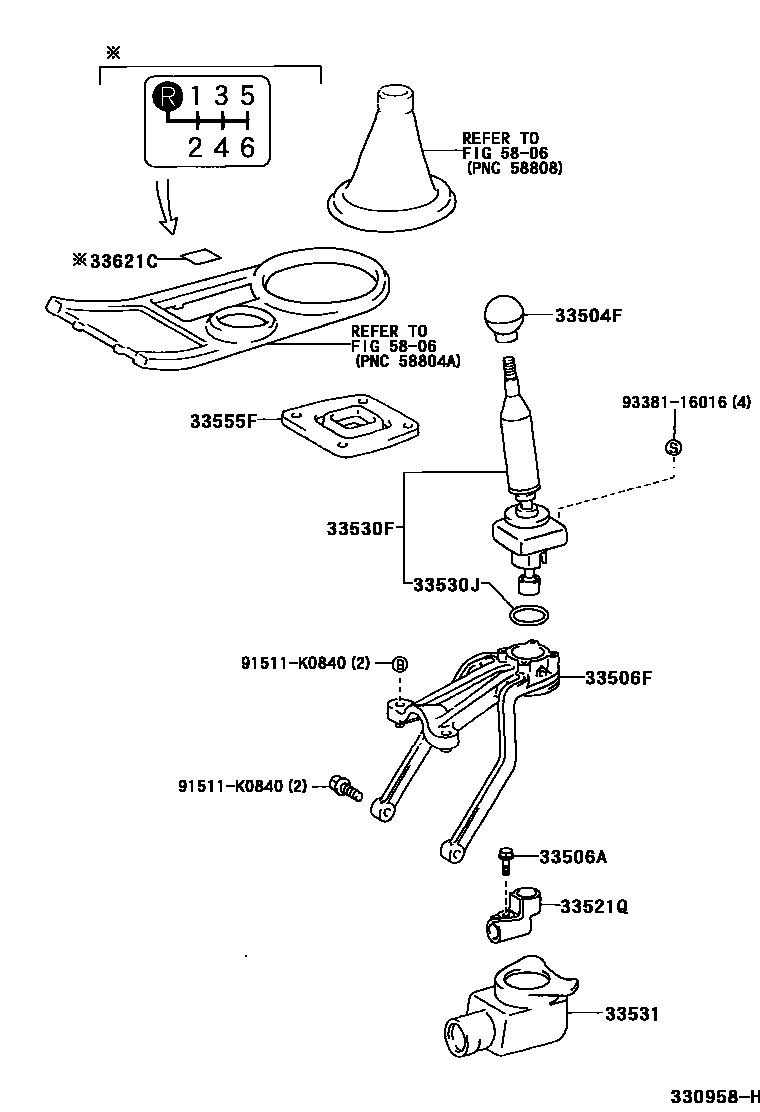

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-53010iSXE10..MTM199810-199901

main33504-53011iGXE10,SXE10..MTM199901-200105

main33504-53020iGXE1#,JCE1#,SXE10..ATM200105

main33504-53030iGXE10,SXE10..MTM200308

main33504-53050iGXE10..MTM200101-200105

EURO EDITION *(E)

main33504-53060-C0iGXE1#,JCE1#,SXE10..ATM200105-200308

BLACK,TRIM0#,2#

33506ABOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90105-08079iGXE10,SXE10..MTM199810-200105

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-53010iGXE10,SXE10..MTM199810-200105

main33506-53011iGXE10,SXE10..MTM200208-200507

33521QHOUSING, SHIFT LEVER (FOR FLOOR SHIFT)

main33521-53020iGXE10,SXE10..MTM199810-200105

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-53010iSXE10..MTM199810-199901

main33530-53011iGXE10,SXE10..MTM200105-200507

33530JRING, O (FOR SHIFT LEVER)

main96711-19033iGXE10,SXE10..MTM200105-200507

33531BOOT, DUST (FOR CONTROL SHIFT LEVER)

main33531-53010iSXE10..MTM200105-200507

main33531-53020iGXE10..MTM200005-200105

33555FBOOT, SHIFT & SELECT LEVER, NO.2

main33555-53030iGXE10,SXE10..MTM199810-200105

33621CLABEL, CONTROL LEVER INFORMATION

main33621-53010iGXE10,SXE10..MTM199810-200105

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

91511K0840

main91511-K0840

9338116016

main93381-16016

12 parts on this diagram · 4 diagrams in section
