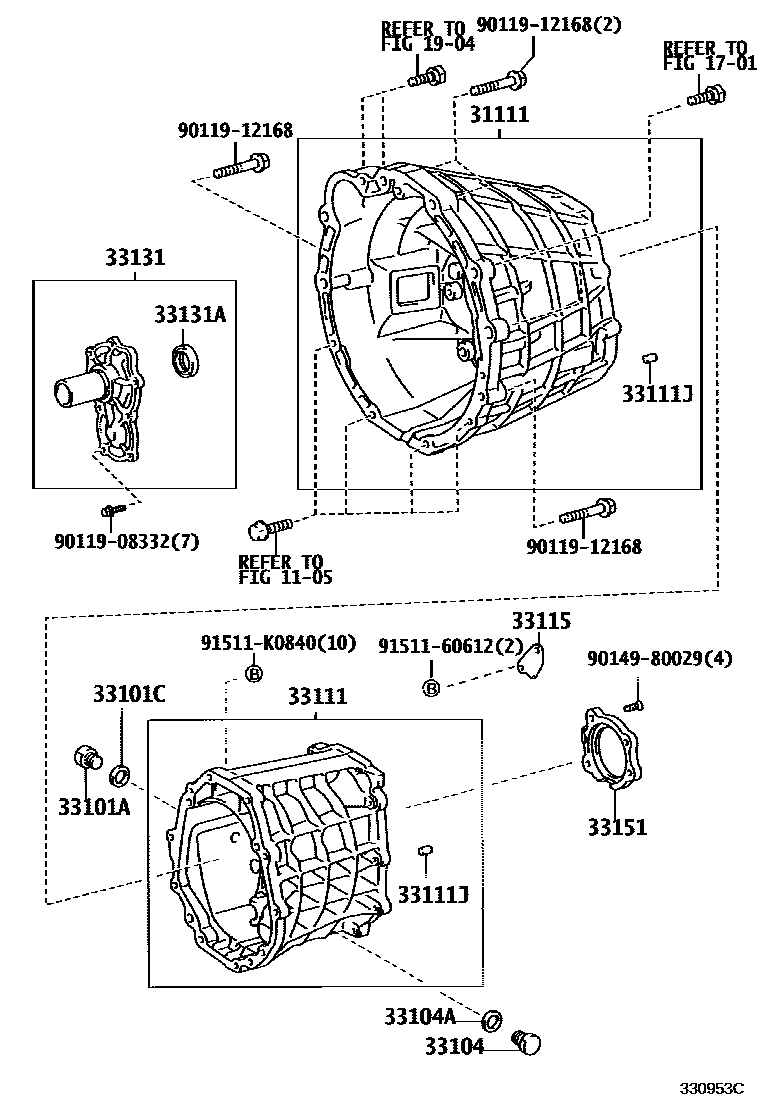

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1J160 0002 1J160

1105

1701

1904

31111HOUSING, CLUTCH

main33101-53010iSXE10..MTM199810-200507

main33101-53020iGXE10..MTM200005-200507

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iGXE10,SXE10..MTM199810-200507

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGXE10,SXE10..MTM199810-200507

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGXE10,SXE10..MTM199810-200507

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGXE10,SXE10..MTM199810-200507

33111CASE, MANUAL TRANSMISSION

main33106-53010iGXE10,SXE10..MTM199810-200011

sub33106-53011

main33106-53011iGXE10,SXE10..MTM200011-200507

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iGXE10,SXE10..MTM199810-200507

33115PLATE, TRANSMISSION OIL FILTER

main33115-53010iGXE10,SXE10..MTM199810-200507

33131RETAINER, BEARING, FRONT(MTM)

main33018-53010iGXE10,SXE10..MTM199810-200507

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-29001iGXE10,SXE10..MTM199810-200507

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-53010iGXE10,SXE10..MTM199810-200507

9011908332

main90119-08332

9011912168

main90119-12168

9014980029

main90149-80029

9151160612

main91511-60612

91511K0840

main91511-K0840

19 parts on this diagram · 2 diagrams in section
