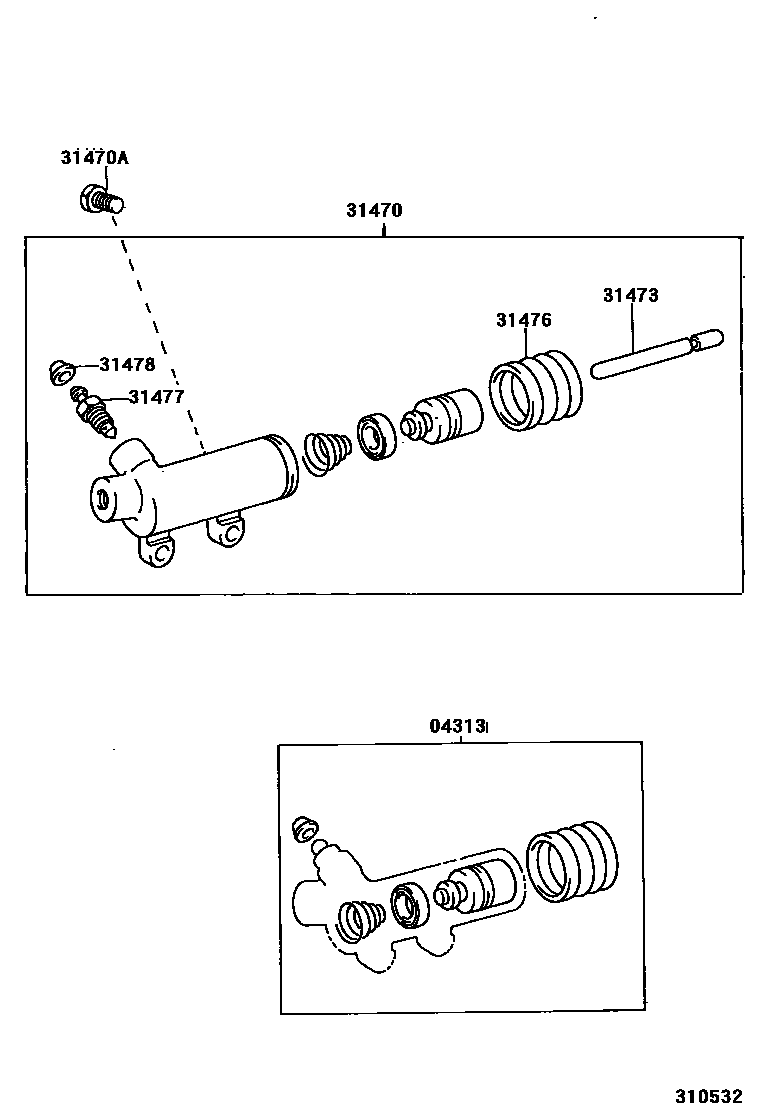

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-30130iSXE10..MTM199810-200005

main04313-53010iGXE10,SXE10..MTM200005-200105

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30230iSXE10..MTM199810-200005

main31470-30270iGXE10..MTM200005-200010

main31470-53010iSXE10..MTM200005-200105

main31470-53020iGXE10..MTM200010-200105

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825×2iGXE10,SXE10..MTM199810-200105

main91611-B0825×2iGXE10,SXE10..MTM200105-200507

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30070iGXE10..MTM200005-200105

main31473-35050iSXE10..MTM199810-200105

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGXE10,SXE10..MTM200105-200507

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGXE10,SXE10..MTM199810-200105

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGXE10,SXE10..MTM199810-200105

7 parts on this diagram · 1 diagram in section
