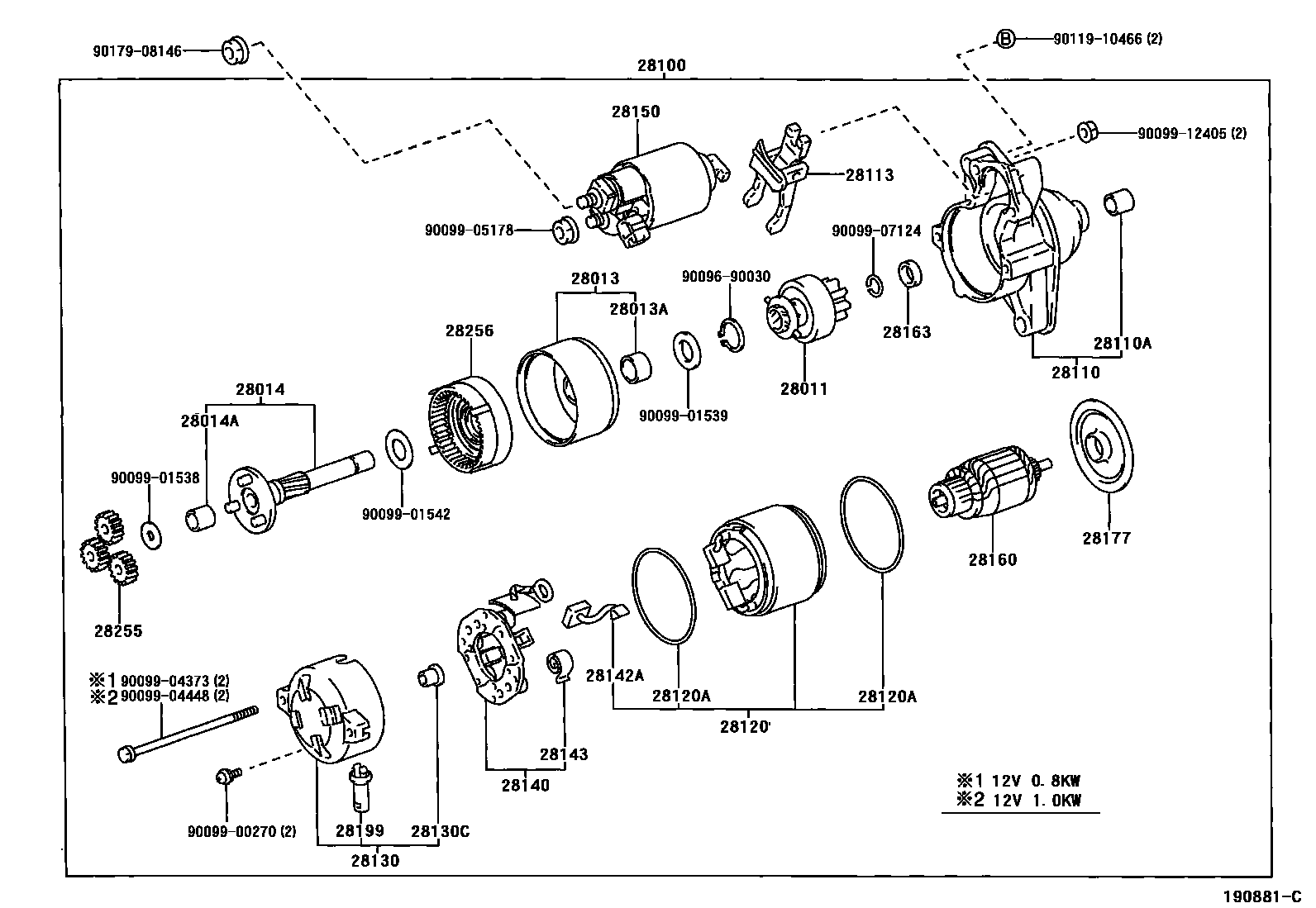

STARTER

0001 112V 0.8KW,12V 1.0KW 0002 112V 0.8KW,12V 1.0KW 0003 112V 1.4KW 0004 112V 1.4KW 0005 112V 1.0KW 0006 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-46240i2JZGE..JCE1#200106-200507

main28011-70020i1GFE..GXE10199810-200507

main28011-76070i3SGE..SXE10199810-200105

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i1GFE..GXE10199810-200005

sub28013-70030

main28013-70030i1GFE..GXE10200005-200105

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i1GFE..GXE10199810-200105

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i1GFE..GXE10199810-200105

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i1GFE..GXE10199810-200105

28100STARTER ASSY

main28100-46140i2JZGE..JCE1#200106-200507

main28100-46240i2JZGE..JCE1#200106-200507

main28100-70030i1GFE..GXE10199810-200507

sub28100-70050

main28100-70050i1GFE..GXE1#199810-200507

main28100-74310i3SGE..SXE10199810-200507

28110HOUSING ASSY, STARTER DRIVE

main28110-70020i1GFE..GXE10199810-200105

main28110-74310i3SGE..SXE10199810-200105

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i1GFE..GXE10199810-200105

28113LEVER, STARTER PINION DRIVE

main28113-70020i1GFE..GXE10199810-200105

28120YOKE ASSY, STARTER

main28120-66040i2JZGE..JCE1#200106-200507

12V 1.4KW

main28120-70020i1GFE..GXE10199810-200507

12V 0.8KW

main28120-70050i1GFE,2JZGE..GXE1#,JCE1#199810-200507

12V 1.0KW

main28120-74310i3SGE..SXE10199810-200507

12V 1.4KW

28120ARING, O(FOR STARTER YOKE)

main90099-14064i3SGE..SXE10199810-200105

main90099-14092i1GFE..GXE10199810-200105

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-70020i1GFE..GXE10199810-200105

main28130-74310i3SGE..SXE10199810-200105

28130CBEARING, STARTER FLANGE

main90099-10183i1GFE..GXE10199810-200105

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1GFE..GXE10199810-200105

main28140-76070i3SGE..SXE10199810-200105

28142ASTARTER KIT

main28142-70020i1GFE..GXE10199810-200105

28143SPRING, STARTER BRUSH

main28143-70020i1GFE..GXE10199810-200105

main90099-17112i3SGE..SXE10199810-200105

28150SWITCH ASSY, MAGNET STARTER

main28150-46150i2JZGE..JCE1#200106-200507

12V 1.4KW

main28150-70030i1GFE,2JZGE..GXE1#,JCE1#200105-200507

12V 1.0KW

sub28150-22100

main28150-70030i1GFE..GXE10199810-200105

sub28150-22100

main28150-74310i3SGE..SXE10199810-200507

28160ARMATURE ASSY, STARTER

main28160-70021i1GFE..GXE10199810-200507

12V 0.8KW

main28160-70050i1GFE,2JZGE..GXE1#,JCE1#199810-200507

12V 1.0KW

main28160-74070i2JZGE,3SGE..JCE1#,SXE10199810-200507

12V 1.4KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i1GFE..GXE10199810-200105

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i1GFE..GXE10199810-200105

28199COVER, STARTER

main28199-46080i1GFE..GXE10199810-200105

main28199-74110i3SGE..SXE10199810-200105

28255GEAR, PLANET

main28255-70020i1GFE..GXE10199810-200105

28256GEAR, STARTER INTERNAL

main28256-70020i1GFE..GXE10199810-200105

9009690030

main90096-90030

9009900270

main90099-00270

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009904448

main90099-04448

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9011910466

main90119-10466

9017908146

main90179-08146

35 parts on this diagram · 6 diagrams in section
