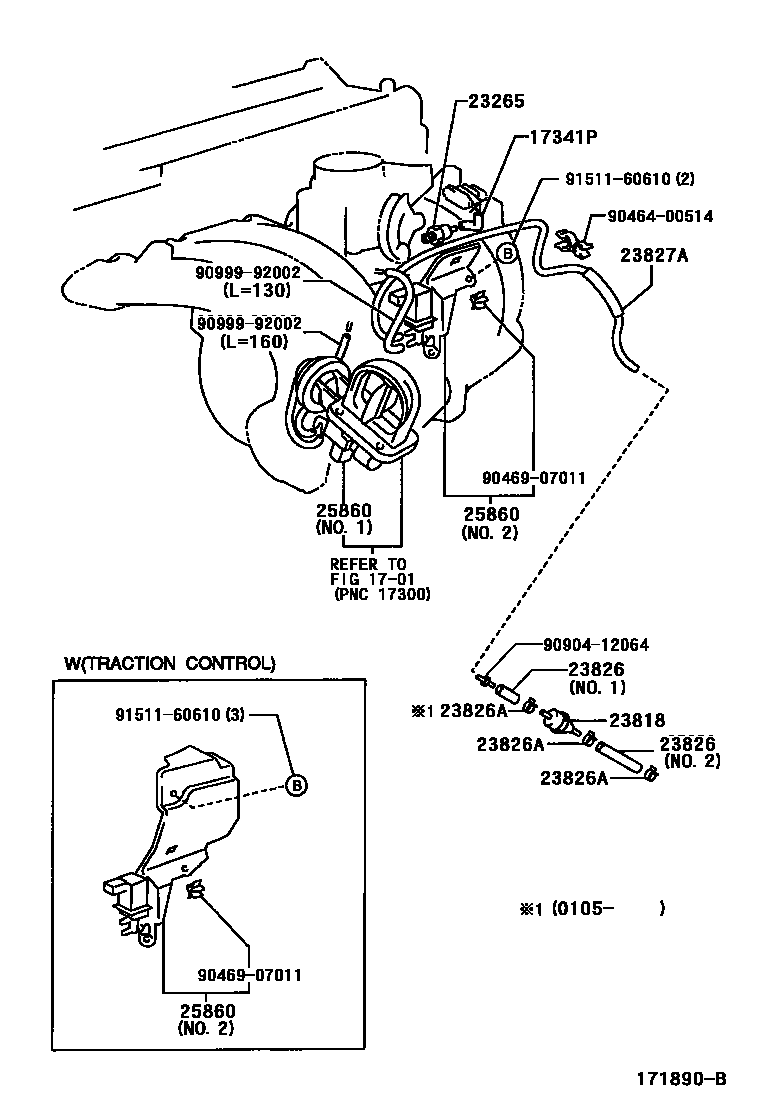

Toyota ALTEZZA/ALTEZZA GITA242 — VACUUM PIPING
1701MANIFOLD
17341PHOSE, AIR
23265FILTER, GAS, NO.1
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23827AHOSE, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
9046400514
9046907011
9090412064
9099992002
9151160610
13 parts on this diagram · 4 diagrams in section
VACUUM PIPING for Toyota ALTEZZA/ALTEZZA GITA242
This section contains 40 genuine Toyota parts for the VACUUM PIPING system of the Toyota ALTEZZA/ALTEZZA GITA242. Key components include: MANIFOLD, HOSE, AIR, HOSE, AIR, NO.2, HOSE, AIR, NO.3, VALVE ASSY, VACUUM SWITCHING.
