Toyota ALTEZZA/ALTEZZA GITA242 — MANIFOLD

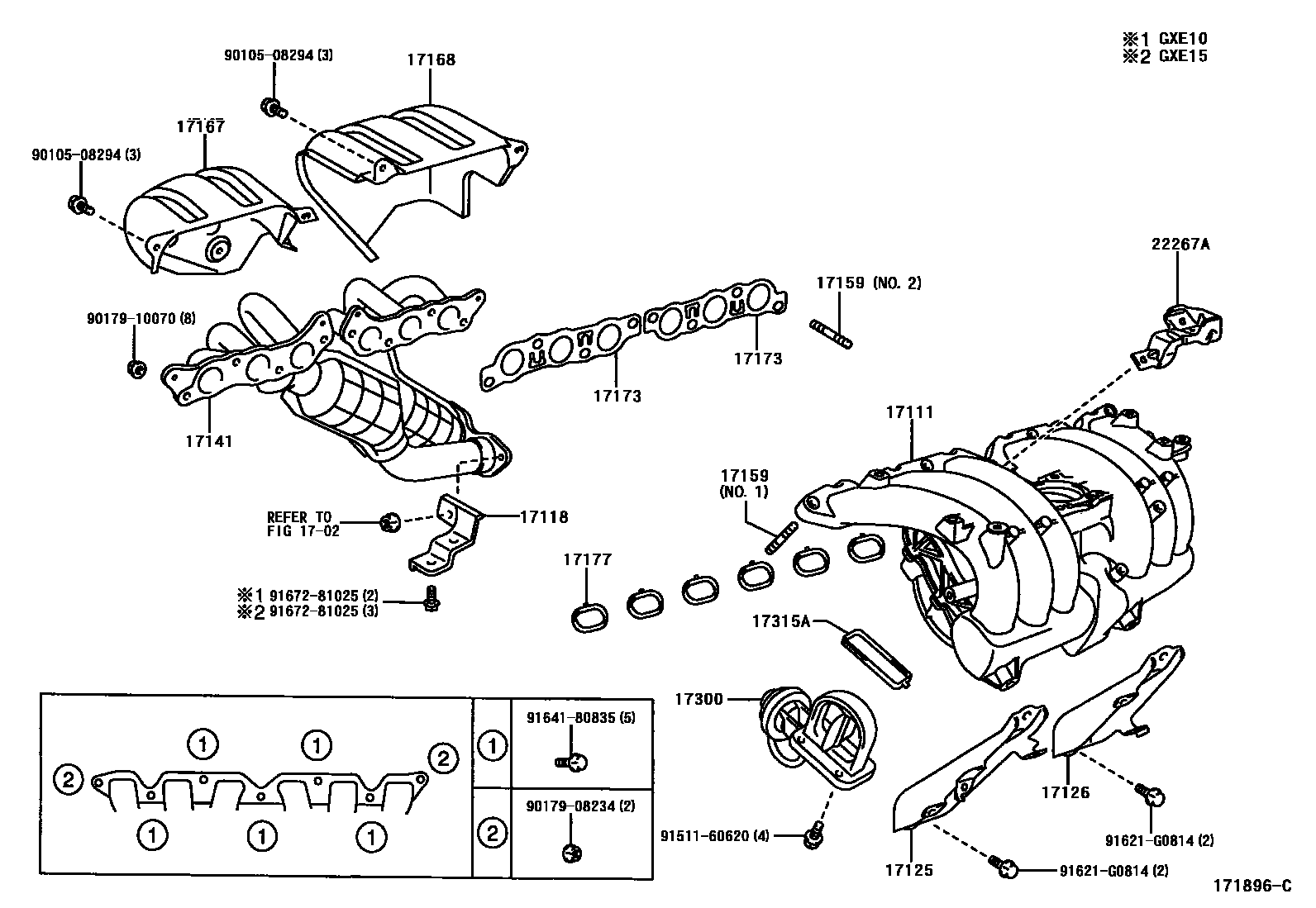

Parts diagram

1702EXHAUST PIPE

→ Go to FIG 17-02

17111MANIFOLD, INTAKE

17118STAY, MANIFOLD

17125STAY, SURGE TANK, NO.1

17126STAY, SURGE TANK, NO.2

17141MANIFOLD, EXHAUST

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17300VALVE ASSY, INTAKE AIR CONTROL

17315AGASKET, INTAKE AIR CONTROL VALVE

22267ABRACKET, THROTTLE BODY

9010508294

9017908234

9017910070

9151160620

91621G0814

9164180835

9167281025

21 parts on this diagram · 4 diagrams in section

MANIFOLD for Toyota ALTEZZA/ALTEZZA GITA242

This section contains 65 genuine Toyota parts for the MANIFOLD system of the Toyota ALTEZZA/ALTEZZA GITA242. Key components include: EXHAUST PIPE, DIAPHRAGM SUB-ASSY, BRACKET SUB-ASSY, EXHAUST MANIFOLD, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD).
